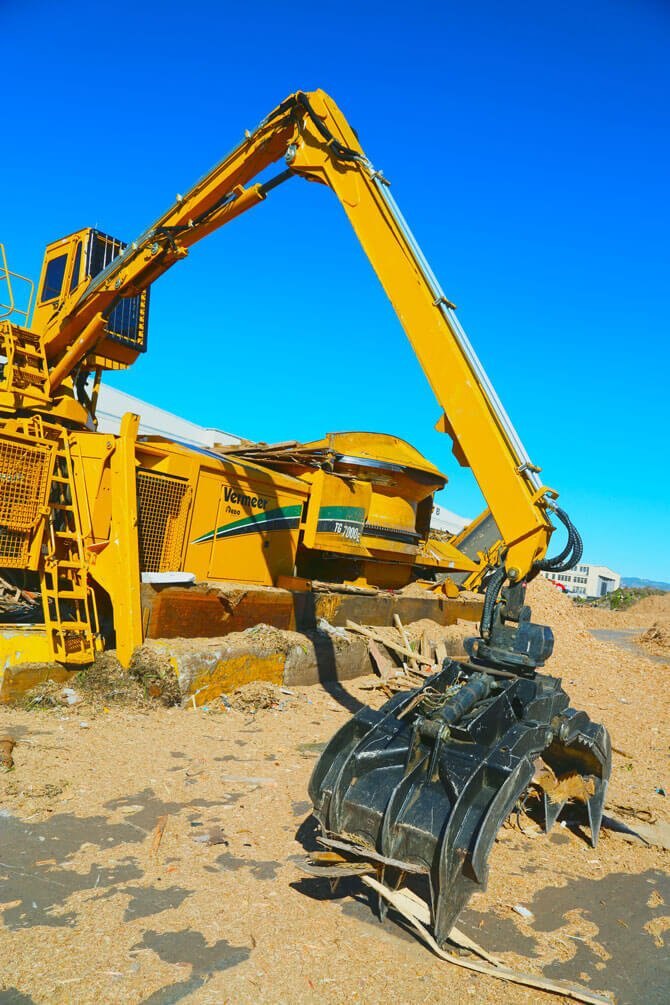

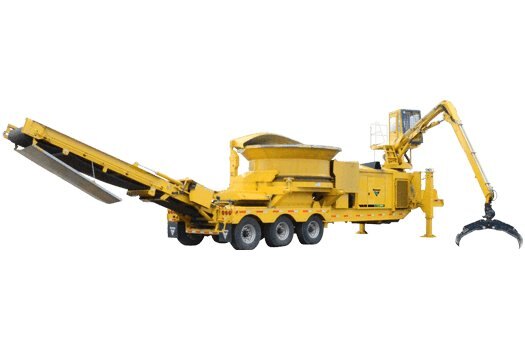

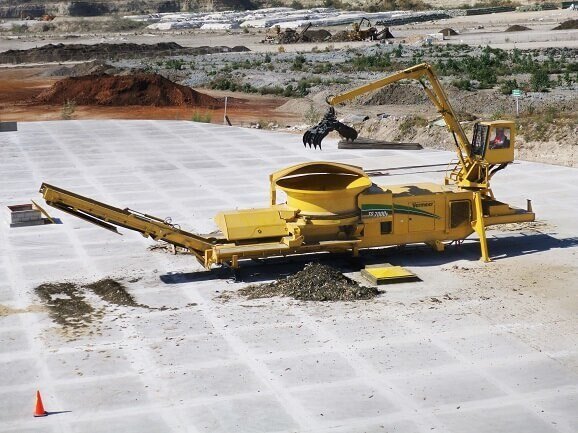

Vermeer TG7000E TUB GRINDER

  • Vermeer TG7000E TUB GRINDER
  • Vermeer TG7000E TUB GRINDER
  • Vermeer TG7000E TUB GRINDER
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need. The TG7000E tub grinder is powered by two electric motors providing a combined 1000 hp (746 kW) to the mill. With the option to configure either a soft-start or VFD starter panel - along with Vermeer features like the duplex drum design and continuous undermill discharge conveyor system - the TG7000E has the flexibility and features you need for productive processing.
Specifications
Model
TG7000E TUB GRINDER
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
dimensions
Maximum Reach Of Loader
29.5 ft (9 m)
Maximum Width (Transport)
11.9 ft (3.6 m)
Maximum Height (Transport)
11.3 ft (3.4 m)
Maximum Length - Transport
48.5 ft (14.8 m)
Weight - Engine Option One
70800 lbs (32114.3 kg)
Rear Mount Pad Weight (Operation)
50250 lbs (22793 kg)
Front Mount Pad Weight (Operation)
49450 lbs (22430.1 kg)
Maximum Length - Conveyor Unfolded
68.8 ft (21 m)
Maximum Height - Cab In Operating Position
18.7 ft (5.7 m)
operational
Depth Of Tub
4.7 ft (1.4 m)
Loader Reach
29.5 ft (9 m)
Tip Diameter
29 in (73.7 cm)
Drum Diameter
22.5 in (57.2 cm)
Grapple Weight
1450 lbs (657.7 kg)
Loading Height
11.3 ft (3.4 m)
Wall Thickness
.3 in (.6 cm)
Millbox Opening
27" x 69" (68.9 cm x 175.3 cm)
Drum Cutting Width
65.3 in (165.9 cm)
Tub Cover Positions
Transport and Operate with Hydraulic Lock. Transport also has mechanical lock
Tub Table Thickness
.5 in (1.3 cm)
Idler Roller Diameter
12 in (30.5 cm)
Tub Cover Description
Hydraulically activated
Inside Diameter Of Tub
10 ft (3 m)
Magnetic Drive Roller Diameter
13.8 in (35.1 cm)
Standard Drive Roller Diameter
13.8 in (35.1 cm)
Thrown Object Restraint System
Standard
Loader Lift Capacity At Full Reach
4000 lbs (1814.4 kg)
Loader Lift Capacity At 10 ' (3.05 M)
12000 lbs (5443.1 kg)
Inside Flare Diameter - At Base Of Tub
10.3 ft (3.1 m)
Inside Flare Diameter - At Tub Opening
13 ft (4 m)
features & options

Features

Engine Information Yes
Machine Information Yes
Motor Information Yes
Rotor Deflector

Options

Air Cleaner - Pleated Primary (4) and Secondary (4) with precleaners (2) and electric restriction indicator (2)
Air Compressor Brand - Mi-T-M
Air to Boil Temperature - 122 deg
Air to Boil Temperature - 142 deg
Alternator - 24 Volt, 100 Amp
Alternator - 24 Volt, 75 Amp
Axle Type - Tri-Axle Air Ride
Capacity - 20000 lbs (9071.8 kg)
Clutch Engagement - Push Button
Clutch Engagement - Push button
Clutch Type - Hydraulic Operated Wet Clutch
Coolant Capacity (Engine and Radiator) - 34 gal (128.7 L)
Coolant Capacity (Engine and Radiator) - 42 gal (159 L)
Cooling Medium - Liquid
Drive Shaft - Custom Spicer
Engine - 11.7 hp (8.7 kW) Honda
Extended Warranty - Optional
Fan - 60" (152.4 cm) Dia, Fixed Pitch, Hyd Reverse Option
Fan - 60" (152.4 cm) diameter, fixed pitch, hydraulic reverse
Fuel Tank Capacity - 500 gal (1892.7 L)
Fuel Type - Ultra Low Sulfur Diesel
Fuel Type - Ultra low sulfur diesel or low sulfur diesel
Gross Horsepower (Maximum) - 950 hp (708.4 kw)
Ground Clearance - Option One - 13.5 in (34.3 cm)
Ground Clearance - Option Two - 10 in (25.4 cm)
Make and Model - C27 Tier 4 Final
Make and Model - Caterpillar C27 Tier 2/Stage II
Max Fuel Consumption - 45.7 gph (173 lph)
Max Fuel Consumption - 47.5 gph (179.8 lph)
Maximum Air Flow - 29 cfm (.8 cmm)
Maximum Pressure - 175 psi (12.1 bar)
Number of Cylinders - 12
Oil Filter - Spin-on (2)
Oil Volume with Filter - 72 qt (68.1 L)
Oil Volume with Filter - 76 qt (71.9 L)
Preventative Maintenance - Optional
Recommended Oil - 15W40
Recommended Oil - CAT DEO-ULS, API CJ-4, API CK-4, or ECF-3 10W-30 / 15W-40
Screens - Optional
Sound Power - Sound Power (LwA) = 120.0 dB(A) Equivalent Continuous A-Weighted Sound Pressure at Operator's Ear (Laeq) = 100.0 dB(A) - Main Control Station Equivalent Continuous A-Weighted Sound Pressure at Operator's Ear (Laeq) = 77.0 dB(A) - Loader Cab
Sound Power - Sound power (LwA) = 118.4 dB(A) Equivalent continuous A-weighted sound pressure at operator's ear (Laeq) = 97.2 dB(A) - main control station Equivalent continuous A-weighted sound pressure at operator's ear (Laeq) = 74.4 dB(A) - loader cab
Special Paint - Optional
Special Tools Group - Optional
Tank capacity - 30 gal (113.6 L)
Tires - Option One - 425/65R22.5 Super Singles
Tires - Option Two - 255/70R22.5 duals
Torque (Max) - 3202 ft-lb (4341.3 Nm)
Torque (Max) - 3212 ft-lb (4354.9 Nm)
U - Joints - Permanently Lubricated 10C (qty 2)
Wheels - Option One - 22.5" x 12.25" Hub Piloted Aluminum
Wheels - Option Two - 22.5" x 8.25" Hub Piloted Steel
