Vermeer CC155 Concrete Cutter
Call for Price
Overview
Specifications
dimensions
engine
operational
features & options
litareture
Documents

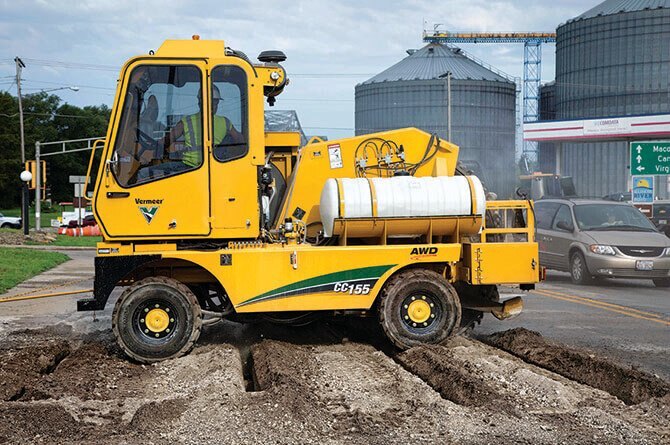

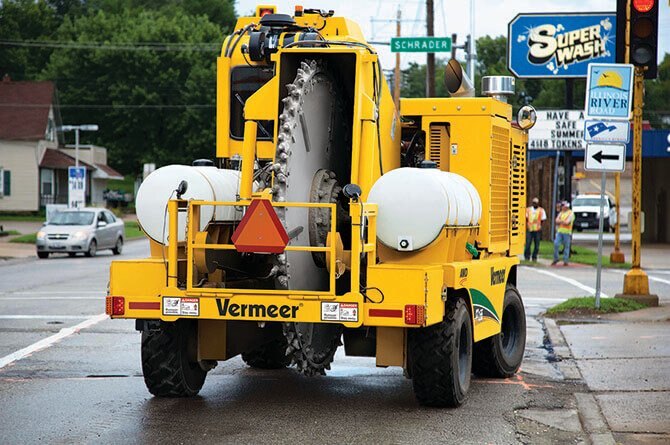

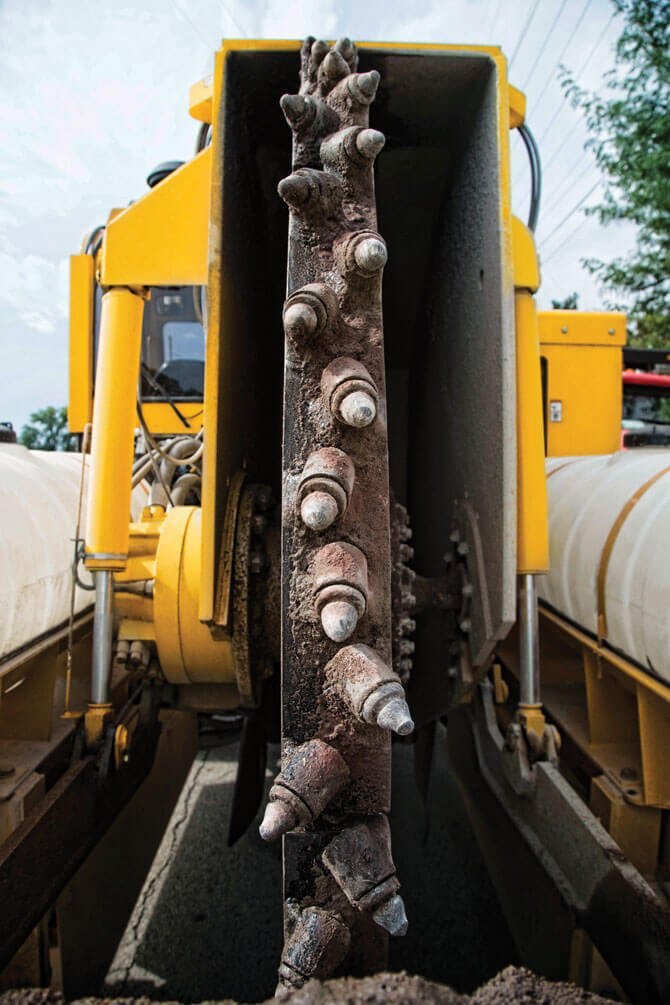

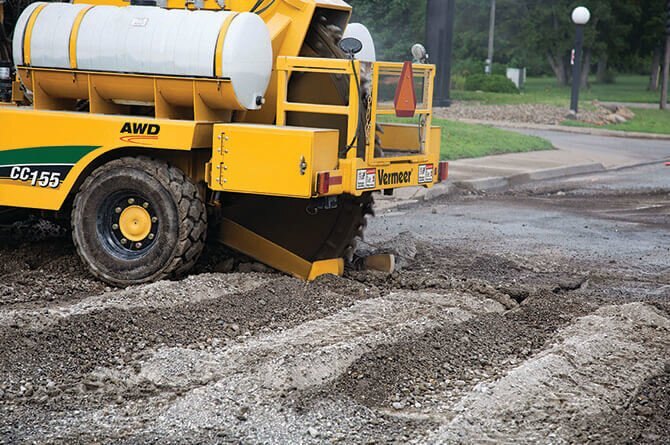

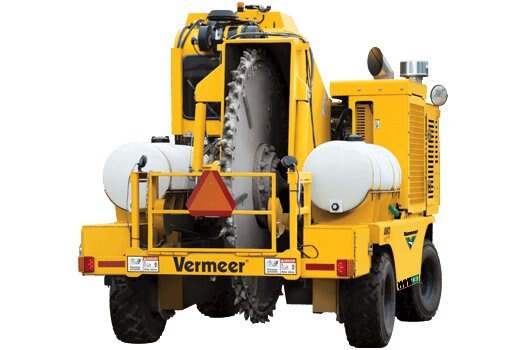

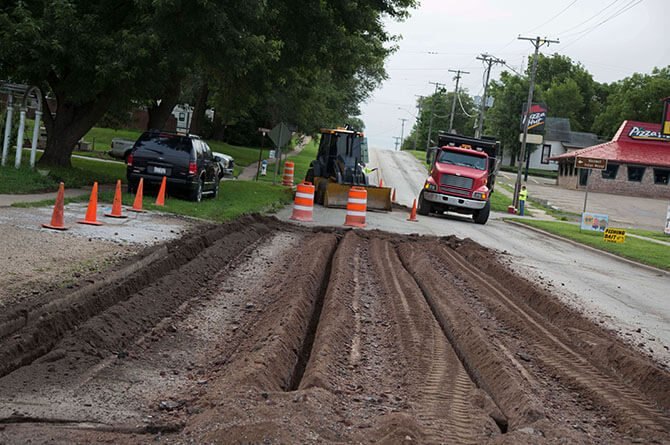

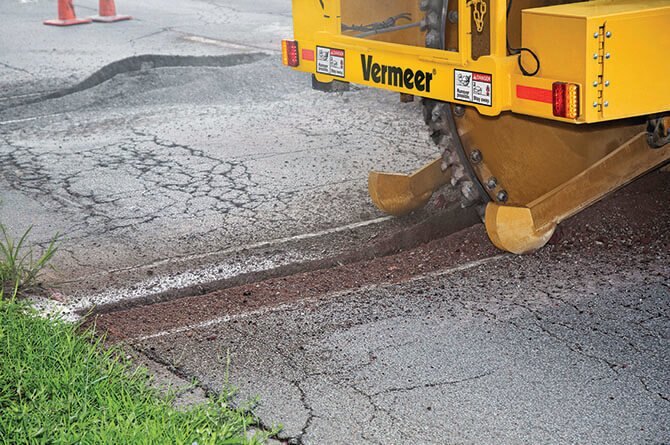

| Cutting streets for utility installation or patch work is no problem for the Vermeer CC155 concrete cutter. Its ground speed and compact design will help you get your project done efficiently while minimizing lane closures. With the sustained torque output of its Tier 4 Final (Stage IV) 156 hp (116 kW) John Deere engine and SmartTEC performance software, the CC155 is a smart choice for road construction, interstate and highway repair, airport lighting projects and demolition work. |
Model
CC155 Concrete Cutter
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Vermeer
Width
96 in (243.8 cm)
Height
120 in (304.8 cm)
Length
165 in (419.1 cm)
Weight
26600 lbs (12065.6 kg)
Tread Width
79 in (200.7 cm)
Ground Clearance
5 in (12.7 cm)
Water Tank Capacity
200 gal (757.1 L)
Weight (Tanks Empty)
24800 lbs (11249.1 kg)
Wheel Base (Centerline Of Axles)
97 in (246.4 cm)
Air Cleaner
Dry type exhaust aspirated
Cooling Medium
Liquid
Make And Model
John Deere 4045
Operating Range
10.5 hours
Gross Horsepower
156 hp (116.3 kw)
Electrical System
24 volt DC
Fuel Tank Capacity
88 gal (333.1 L)
Number Of Cylinders
4
Tire Size
32.3 x 16.5 - 12
Travel Speed
461 ft/min (461 m)
Cutting Width
4.8 in (12.1 cm)
Turning Radius
216 in (548.6 cm)
Wheel Diameter
84 in (213.4 cm)
System Pressure
5000 psi (344.7 bar)
Wheel Thickness
2 in (5.1 cm)
Oil Tank Capacity
74 gal (280.1 L)
Ground Drive Motors
Dual-path hydrostatic with dual series flow to four low speed high torque motors
Maximum Feed Height
27 in (68.6 cm)
Maximum Cutting Depth
31 " (78.74 cm)
Cutting Width - Option Two
5 in (12.7 cm)
Cutter Tip Speed (Low Gear)
1056 ft/min (321.9 m/min)
Cutting Width - Option Five
10 in (25.4 cm)
Cutting Width - Option Four
9 in (22.9 cm)
Cutter Tip Speed (High Gear)
2113 ft/min (644 m/min)
Cutting Width - Option Three
6.5 in (16.5 cm)
Transport Speed Maximum (High)
971 ft/min (296 m/min)
Litareture
| Name | Link |
| OEM Brochure | Download |
