ID # 25782164

Degelman DOZER BLADE 46/5700

Call for Price

The 3500 series blade by Degelman is the best blade you can get for the 40-150 horsepower range. We can say with confidence that this the most rugged blade you'll find in this category.

Sale Type
  • Available in 9ft, 10ft, 12ft & 14ft widths. (Note: Larger blade widths may not be compatible will all tractors)
  • Compatible with all 2WD, front-wheel- assist tractors and wheel loaders.
  • 18° two-way hydraulic angling on 2WD and front-wheel-assisted tractors.Degelman DOZER BLADE 46/5700
  • 23” hydraulic lifting height.
  • Attaches in minutes with D-lock® Quick-Tach.
  • Unique-mounting design.
  • No welding: minimal bolt-on brackets only.
  • Integrated front weight bracket.Degelman DOZER BLADE 46/5700
  • Double-skin blade construction.
  • Industrial-strength cylinders.Degelman DOZER BLADE 46/5700
  • Reversible, adjustable AR400 skid shoes.
  • Ripple-formed blade.

Industrial Strength Design

If you're driving a 2WD or front-wheel assisted tractor between 65 and 275 HP, you've got some solid blade choices. The Degelman 4600 and 5700 blades give you industrial strength design, backed by the Degelman name.

With standard features such as two-way hydraulic angling, hydraulic lifting, and weight brackets integrated right into the mounting hardware - you never have to take weight brackets off again.

Range of Motion

4-Way: Hydraulic Lift, Angle & TiltDegelman DOZER BLADE 46/5700


65-380 HP 4600/5700 Series

The 4600 and 5700 Series hydraulic angle blade attaches to both front-wheel assist and two-wheel drive tractors.Degelman DOZER BLADE 46/5700

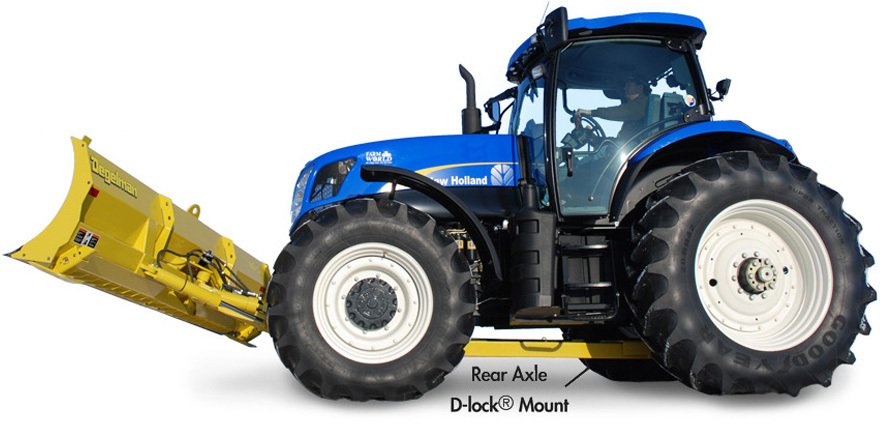

Rear Axle / Front Hook Mount

3500 Blades commonly mount using a front mounted hook and two rear axle brackets. The operator typically drives into the front hook, connects the hydraulics, hydraulically lifts the rear frame into position, and secures the "D-Lock" connections on the rear axle brackets. (46/5700 shown in illustration)Degelman DOZER BLADE 46/5700

No Welding - Easy Bolt-On Assembly

Simple, Bolt-on brackets are all that is attached to your tractor. The rest of the assembly quickly attaches and detaches from these simple brackets. The brackets can also be removed if needed!Degelman DOZER BLADE 46/5700

Common Components

Many of the 3500 blade assemblies use common components in different configurations. Here are some basic descriptions of some common components.Degelman DOZER BLADE 46/5700

HQT-Hydraulic Quick Tach System*

In the spirit of safety and simplicity, Degelman has pushed the design process one more time by coming up with the all new HQT-Hydraulic Quick Tach System. This precision built feature utilizes a hydraulic pin engagement concept which allows the operator to secure the blade to the Dozer mounting framework from the tractor seat. It avoids the dangers, awkwardness and hassles of crawling around the tractor to secure the dozer engagement. Just one more example of how Degelman pushes design to make things a little safer, more convenient and last longer.
Degelman DOZER BLADE 46/5700


Quick-Attach D-Lock® Mounting

The D-Lock® mounting system offers the convenience of quick attach/detach as well as long life. No tools are required. Fit-ups are 100% secure with zero movement. The blade can be removed in minutes by disengaging two points on the front axle brackets.Degelman DOZER BLADE 46/5700

specifications - 2wd and mfwa

Dozer Series


Tractor Horsepower Range

65 - 380 hp

Tractor Type


Blade Widths

9', 10', 12', 14'

Blade Weight

2,050 - 2,950 lbs

Blade Height (standard)


Blade Height (with top extension)


Blade Height (with silage extension)


Lifting Height (approx)


Lift Cylinders

3-1/2" X 8"

Hydraulic Angle

18° - 28°

Hydraulics - Angle

3" - 3-1/2" dia

Hydraulic - Vertical Tilt


Tilt Cylinders


Cutting Edge (MaxTemp® Steel)

5/8" x 6"

Digging Depth

6" - 10"

Skid Shoes (abrasion resistant)

Standard Adjustment

Mounting System

D-lock® Quick-Tach / (HQT 5700 only)

Mounting Location

Rear Axle / Mid-Mount

Mouldboard (ripple formed blade)
