ID # 25781886

Bauma Light MX530R

Videos
Call for Price
Overview

Bauma Light MX530R MX530R Fixed Tooth Mulcher for Excavator, 4-12 Ton

Same as our other 500 series the MX530R is a brush mulcher for excavators and designed to maintain and clear fence lines and entry level contractor work. The difference is the built-in to frame root rake to move logs and other debris out of the path of the excavator or field of work. Same as the other 500 series Baumalight brush mulchers the MX530R is offered with two different type of cutting teeth. The Planer style teeth feed their appetite for brush bit by bit, taking small bites and providing the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action. Their v-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines. See our brush cutting size chart to see what brush size this excavator mounted forestry mulcher can handle.

Specifications
Model
MX530R
Year
2023
Sale Type
New
Manufacturer
Bauma Light
Case Drain
Critical
Path Width
40"
Rotor Width
30"
Unit Weight
1166 lbs
Holder Style
Fixed
No. Of Motor
1
Cutting Depth
1.5" Above to 1" Below Grade
Cutting Style
Carbide Tipped Bolt In
Rotor Shaft Size
2"
Number Of Cutters
64
Tooth Part Number
P5000
Maximum Carrier Ton
12
Minimum Carrier Ton
4
Rotor Weight (with Tools)
300 lbs
Baumalight Connection Code
A02
Rotor Diameter (tool Tips)
15"
Number Of Cutters (if Shipped With New Spiral Tooth Pattern)
44
features

Bauma Light MX530R SOLD BY EQUIPMENT DEALERS

All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership

Bauma Light MX530R INTEGRATED SKID SHOES

These durable skid shoes help the brush mulcher to better float over the ground for optimal mulching action.

Bauma Light MX530R V-Notch

The force and impact of mulching bends the teeth. Our V-Notch teeth and hardened holders won’t let that happen. Held firmly in place to absorb impacts from multiple directions the V-Notch keeps the teeth chewing up the toughest brush.

Bauma Light MX530R Optional 500 Series Ripper Teeth

The 500 Series teeth come in two carbide tipped styles; Planer and Ripper. The Planer style teeth take small bites and provide the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action. Their v-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines. Both styles are Bolt-on replaceable for quick and easy servicing and replacement even in the field.

All units shipped with Standard P5000 Series Planer Teeth only and ripper teeth can be installed as the planer teeth need replacing. Units can be operated with a mix of Planer and Ripper teeth.

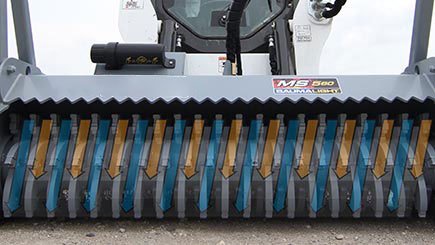

Bauma Light MX530R Spiral Tooth Pattern

For smoother mulching, the spiral tool pattern allows one tooth to engage at a time.

Bauma Light MX530R Overtorque Protection - Relief Valve

The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.

Bauma Light MX530R REINFORCED BELT

A heavy duty reinforced belt delivers the force from the gearbox to the rotor. Not only does this belt refuse to back down in the face of dense brush, it also offers protection from the shocks inherent in mulching.

Bauma Light MX530R Wire Protection Kit

Protective steel cover that prevents damage from wire fencing.

Bauma Light MX530R Heavy duty frame

Heavy duty frame with T1 alloy tool steel sheet metal for all the main areas. Powder coated frame with multiple anti-slip pads to give you secure footing for ease of entry and exit from your cab.

Bauma Light MX530R 6 FREE TEETH

All MX530R Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.

Bauma Light MX530R BENT AXIS PISTON MOTOR

Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.

Bauma Light MX530R VIEW OUR HELPFUL COUPLER SIZING CHART

Couplers must be ordered separately as we do not supply hydraulic couplers with product due to the variety carrier specifications. Click the link below.

https://baumalight.com/brush-mulchers/img/features/mx530r/Hydraulic_Flow_Pressure.jpg Hydraulic Flow & Pressure Database

For your convenience Baumalight has Developed a PSI Flow and Pressure database with over 1000 different carrier models to help you decide the best Baumalight model for your machine.

Bauma Light MX530R overHung Load Adapter (bearing support)

The brush mulcher uses an overhung load adapter which is designed with tapered roller bearings to stand up to the rigors of heavy mulching.

Bauma Light MX530R Root Rake

The MX530R, MX548R and iMX748R are equipped with a root rake for pushing fallen logs or other debris out of the way. The MX548R and iMX748R utilize replaceable bucket-style scrapper teeth.

Bauma Light MX530R Available for PackWing

Selected brush mulcher skidsteer models are compatible with the Skid Wing boom mower for skidsteer.
