Bauma Light RSS780 Screw Splitters

Call for Price
Overview

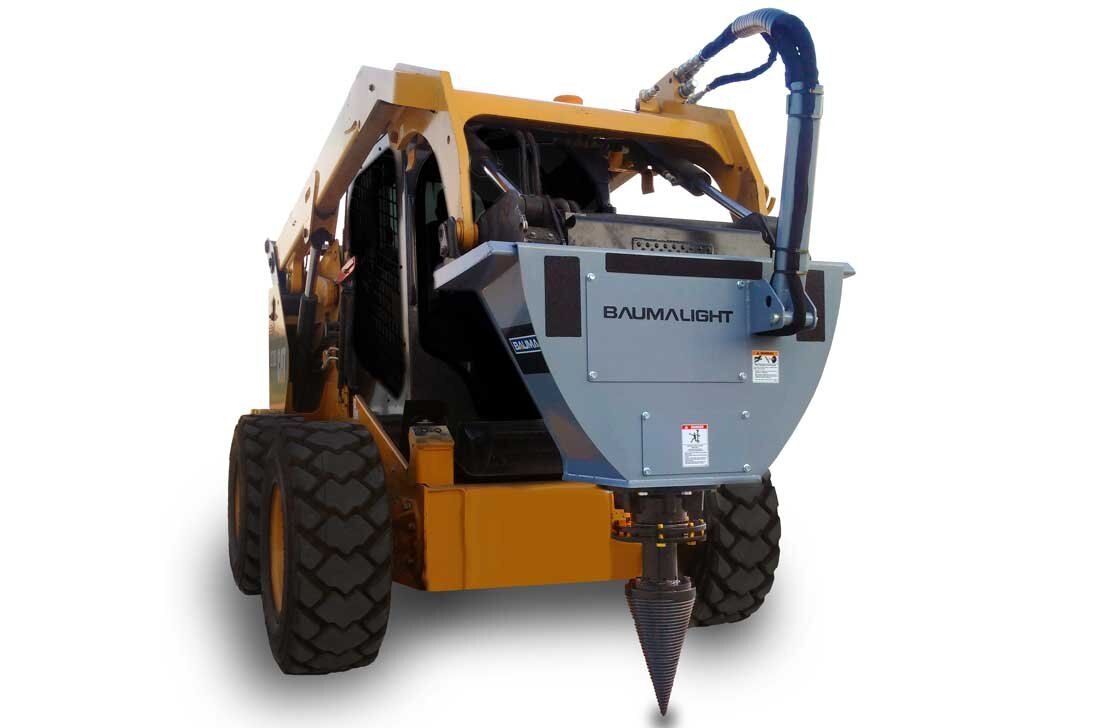

RSS780 - Log Splitter - Skidsteer

Splinter’s Log Splitter tool can split pieces of wood and logs up to 12 feet or even 20 ft long. The RSS Skidsteer models are mounted using a Skidsteer plate, the log splitter’s power comes from the hydraulically-driven motor mounting on a planetary drive, delivering a high amount of torque to the splitting head. The bit’s bite comes from machining two helical spirals machined into two pieces of steel. The two spirals join at the hardened tip for easy boring into the log. Driven on a 2” hex shaft or flange mount with an integrated shield that protects the drive from the rigors of splitting wood, the Log Splitter tool can tear into logs either horizontally or vertically.



Specifications
Model
RSS780 Screw Splitters
Year
2023
Sale Type
New
Manufacturer
Bauma Light
Max. GPM
65
Rec. GPM
20-55
Rec. PSI
2500-4500
Adaptor
SkidSteer plate
Drive Size
8 Bolt Flange
Max. PSI
5000
Drive Type
Planetary
Splitter Tools
8-bolt flange mount 14x8 splitter cone (D003935)
Carrier Weight For Planer
10000 (Max lbs)
Carrier Weight For Splitter
12000 (Max lbs)
features


https://baumalight.com/splinter/img/features/local-support.jpg SOLD BY EQUIPMENT DEALERS

All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership

Bauma Light RSS780 Screw Splitters

HEAVY DUTY BUILD

The Splinter screw wood splitter features a heavy-duty encasement that locks into place for long-lasting durability.

Bauma Light RSS780 Screw Splitters

PROTECTIVE POWDER COAT FINISH

Heavy duty construction and a durable powder coated finish.

Bauma Light RSS780 Screw Splitters

PLANETARY DRIVE

Power comes from the Splinter’s hydraulically-driven planetary drive, delivering up to 3,800 ft/lbs of torque.

Bauma Light RSS780 Screw Splitters

NO 12V ELECTRIC REQUIRED

With no extra electrical cables, connection is quick and easy.

Bauma Light RSS780 Screw Splitters

MAIN SHAFT SEAL PROTECTION

The Splinter’s flange protects the main shaft seal to prevent damage to the Splinter’s bearings from possible debris.

Bauma Light RSS780 Screw Splitters

SPLITTING FORCE

Much higher splitting force than a cylinder splitter with the same amount of pressure.

Bauma Light RSS780 Screw Splitters

ONE PERSON MANEUVERING

One person can handle material without coming out of cab by drilling partially into the log and then carrying it to the desired location

Bauma Light RSS780 Screw Splitters HARDENED REPLACEABLE TIP

The Splinter’s entry tip if hardened for extra-long wear and replaceable for a longer life.

Bauma Light RSS780 Screw Splitters INTERNAL HOSE ROUTING

All of the hydraulic hoses on the Splinter are routed internally where possible and sleeved for operator and hose protection while the connecting hoses are sleeved and wrapped in hose armor for double protection. The Splinter features travelling hose support and a greaseable pin on the hose support.

Bauma Light RSS780 Screw Splitters ANTI-SLIP MAT FOR EASY ACCESS TO CAB

For ease of entry and exit from the cab an anti-slip strip gives sure footing.

Bauma Light RSS780 Screw Splitters EASY TO CHANGE BITS

Easily change from splitting to grinding.

Bauma Light RSS780 Screw Splitters HEAVY DUTY 8-BOLT FLANGE BIT HOLDER

The Splinter features a heavy duty 8-bolt flange bit holder.

Bauma Light RSS780 Screw Splitters PRESSURE GAUGE

The Splinter’s pressure gauge allows you to view work load during operation.

Bauma Light RSS780 Screw Splitters PISTON MOTOR

Developing torque through a reaction to pressure-reciprocating pistons, this latest motor design has the cylinder block and driveshaft mounted on an angle which produces a reaction against the drive-shaft flange.
