New Holland Braud High-Capacity Grape Harvesters
THE BENCHMARK FOR GRAPE HARVEST QUALITYBraud grape harvesters are known for their grape picking efficiency, gentle handling and respect for the vine stock, fruit integrity and low losses. | |
BEST-IN-CLASS COMFORT AND SAFETYYou get the quietest, most comfortable cab on the market with the Braud 9000 Series. For deluxe features and Level 4 filtration, choose the Blue Cab 4 system. | |
MORE POWER AND EFFICIENCYFour models from 164 to 182 horsepower feature new Tier 4B HI-eSCR 4- and 6 cylinder NEF engines deliver more power and torque with best in class fuel efficiency. | |
THE MOST AWARD-WINNING BRAND IN HISTORYWhen you buy a Braud harvester, it’s backed by more than 40 years of harvesting excellence, with more than 15,000 harvesters sold in more than 40 countries. | |
HIGH-QUALITY GRAPES FOR HIGH-QUALITY WINEWith industry-exclusive features such as the Noria collection system, and the SDC shaking system, Braud 9000 Series grape harvesters preserve the quality of your grapes for top-quality wines. These high-capacity models are designed to be gentle on the vines, provide better climbing capability in steep hills, and be more efficient and easy to operate. | |
REDUCE TIME AND LABOR COSTSIndustry-leading cleaning systems, such as Opti-Grape™ and the patented SOCMA destemmer means your operation benefits from less time cleaning at the winery and better tasting wines.
| |
MAXIMIZE YOUR PRODUCTIVITYOptimizing productivity for all vine types has never been easier. It’s quick to set up the Braud 9000 Series to work in different vineyards for maximum efficiency. The integrated Intelligent Management System 2.0, with IntelliView™ IV touchscreen monitor provides full access to all key harvester functions. The Automated Crop Setup (ACS) feature helps you program and store your preferred harvesting settings for easy setup to start your harvest. | |
LESS WASH TIMEThe washing process has been reinvented. The Braud 9000 Series now features wireless remote-control convenience to provide effective washing while saving you time and money. A unique pre-washing system reduces picking head wash time with a strategically positioned water supply pipe, water nozzles positioned to key areas, and fewer debris accumulation areas.
| |
BRAUD 9090X: GENTLE HARVESTING ON A HUGE SCALEDesigned for large corporate wineries and high-yield vineyards with long rows spaced at 8 feet or wider, the Braud 9090X delivers non-stop, high-capacity harvesting. Choose from two configurations:
| |
HARVEST NON-STOP WITH THE 9090X SIDE CONVEYORThe innovative 9090X side-arm conveyor allows you to harvest and unload on the go, acre after acre. Now available with the side conveyor 9090X: the optional SOCMA patented destemmer. An advanced mesh and finger system eliminates 99.56% of harvest impurities, or MOG (material other than grapes) including rachis, stalks, leaves other debris. By removing MOG while you harvest, you not only improve your efficiency, you help eliminate the herbaceous taste that can be transferred to the grapes during transport to the winery.
| |
TWO-HOPPER 9090XIf you prefer, choose twin hoppers with a full 1056-gallon (4,000L) capacity. The 10.5-foot tilting height provides plenty of clearance to unload into gondolas of varying heights. Plus, you can unload the hoppers simultaneously to reduce downtime. This model features a pre-sorting system for even better cleaning capacity. Two rollers positioned at the end of the receiving conveyors direct single berries that don’t need destemming directly onto the cross conveyor to increase air flow. For the two-hopper 9090X model, the optional destemmer is fitted on the top of each hopper and does not compromise hopper capacity for optimum productivity. model. |
THE HEART OF BRAUD DNAYour harvest is treated with care from the beginning. Braud patented technologies set the standard for production quality, harvesting quality and response to the needs of growers throughout the world. | |
SDC SHAKING SYSTEMThe exclusive Braud SDC shaking system is recognized as the best picking system, period. Each shaking rod is independent and hinged at the rear on a maintenance-free flexible fixation. This connection allows perfect control of the shaker action, with maximum flexibility, for gentle picking. Use the ACS system “Automated Crop Setup” to program and save your preferred harvesting settings.
| |
LOW GRAPE SHAKINGA clever redesign allows the first shaker rod to be mounted below the shaker plate bearing on both sides of the shaker frame, allowing about a 1-1/2-inch gap above the top of the Noria bucket. The mounting design ensures even more effective shaking, from the lowest hanging grapes to the highest part of the vine. (The low shaker feature is not available on the 9090X.)
| |
OPTIMIZED SHAKING SYSTEMStandard configuration includes 14 shakers and you can order additional optional shaker kits to match your needs. The optimized shaking system consists of both the adjustable rod aperture system and quick engaging shaker plates. | |
NO FRUIT MACERATIONThe grapes collected by Noria buckets at the bottom of the harvesting head are conveyed gently, without loss or maceration, up to the top of the harvesting head, always by the same bucket. Its design allows it to catch and carry even the lowest fruits safely. | |
NORIA COLLECTION SYSTEM – A MUST HAVEProven Noria polyurethane buckets ensure total care of the vines and fruit without ground losses. All updated Braud 9000L and 9000M models have extra capacity with 7.5 feet of sealed length (8.4 feet on the 9090X) and XXL size buckets. The tool-free Noria tensioning system allows you to use a simple crank to move the rails up and down.
| |
BEST-IN-CLASS CLEANINGA 27.6-inch-wide, high-capacity cleaning conveyor allow for even crop distribution. Cleaning always occurs when the crop is in free fall for effective cleaning in lightweight material. Cleaning fan exhaust is directed to the rear of the machine for better air flow efficiency, less dust, noise and residue accumulation.
| |
CANE REMOVERIn heavy canopy conditions, or conditions that may cause the shaking system to detach canes or branches, the cane removal system removes obstructions to avoid blockages to the Noria buckets, conveyors, fans, etc. This feature is standard on the 9090L and 9090X machines, and is available as an option on 9070L machines.
|
POWERFUL AND FUEL EFFICIENTThe machine with the best engine on the market is the obvious choice. The Braud 9000 series is powered by ultra-efficient FPT Industrial 4 and 6-cylinder Tier 4B HI-eSCR common rail electronic engines providing 164 to 182 horsepower. FPT Industrial NEF engines require no EGR valve solution, as the engine only breathes fresh, clean air. As a result, engine power outputs are equivalent to higher horsepower competitors that use EGR valves. | |
OUTSTANDING FUEL EFFICIENCY (9070L AND 9070M)Tier 4B HI-eSCR engines, combined with IMS 2.0 offer outstanding fuel efficiency and economy. Pumps and hydraulics have been increased in displacement, resulting in a lower engine rpm requirement. In road transport, the engine rpm will run at only 1800 rpm at 15.5 mph max speed. Hydraulic components have been designed to provide fuel efficiencies during multifunction applications. This provides even better fuel efficiency in all work modes, benchmarking fuel efficiency while picking.
| |
IMS 2.0 NEW GENERATION INTELLIGENT MANAGEMENT SYSTEMAwarded a bronze medal at Sitevi 2017, the latest generation Braud Intelligent Management System, IMS 2.0, features added functionality. Combined with the IntelliView™ IV monitor, it continually monitors the demand on the engine, keeping the harvesting parameters constant, but also taking into account the terrain and hydrostatic load to constantly adjust engine rpm. In addition, the Twin Lock hydrostatic system maintains traction between the front and the rear wheel motors for traction in the difficult conditions. The result is optimized fuel efficiency and industry-leading slope management.
| |
HEAVY-DUTY 18.6 MPH HYDROSTATIC TRANSMISSION
| |
AUTOMATIC LEVELINGIMS 2.0 controls height and leveling—simply set the desired picking head height, and the system maintains it automatically, regardless of the terrain. Standard sensors prevent the picking head from making contact with the ground in difficult conditions. Machine height is also maintained in road mode thanks to the auto-leveling system, providing constant height adjustment. Activated from the comfort of the cab, the automatic lock system keeps the picking head secure during road transport.
| |
HEADLAND MANAGEMENTBy using one button on the multifunction handle, you can use one button to activate the headland management sequence, lifting the machine to a pre-set headland height and stopping the shakers. The same headland button will turn on all functions when entering the next row.
|
HARVEST IN FIRST CLASSMore comfort means better performance, and Braud 9000 Series harvester cabs are recognized as the comfort benchmark in the industry. The cabs provide full visibility and are fully suspended for a smoother, more comfortable ride. Pressurized, sound-proofed, heated and air-conditioned, the cabs are designed to offer optimum comfort and protection during harvest, spraying and other operations. Noise levels are reduced by 3 decibels compared to the previous harvester series, providing the quietest cab on the market.
| |
EASY ACCESSAn electronic ladder platform makes cab access safe and easy. An LED motion sensor automatically lights the way when climbing the steps at night.
| |
THE LIGHT YOU NEEDAs standard, 12 lights illuminate your work area, with the addition of two rear side lights. Mounted on the left and right sides of the cab, the rear lights help with added visibility at night. Extra additional lights can be fitted as an option. | |
360-DEGREE VISIONTwo cameras come standard and are factory installed. In-cab color monitor can accommodate a total of four cameras to enhance visibility and view machine functions.
| |
BLUE CAB™ 4 SYSTEM: ULTIMATE PROTECTION AND COMFORTThe Blue Cab 4 system is the most advanced cab filtration system on the market. It features not only a category 4 filtering, closed-loop, cab-pressurization system, but it also includes category 2 filtration, used when category 4 is not needed. Both category 2 and 4 have been validated by IRSTEA according to EN15695-1 and -2 standards, and by a complete field test validation. The filtration switchover is easy. Category 4 automatically starts when a spraying unit is attached and activated. On the road or in non-spray conditions, only category 2 is used.
| |
ADDITIONAL BLUE CAB™ 4 FEATURES9000 Series harvesters with Blue Cab™ 4 system offer these features for added comfort and convenience:
| |

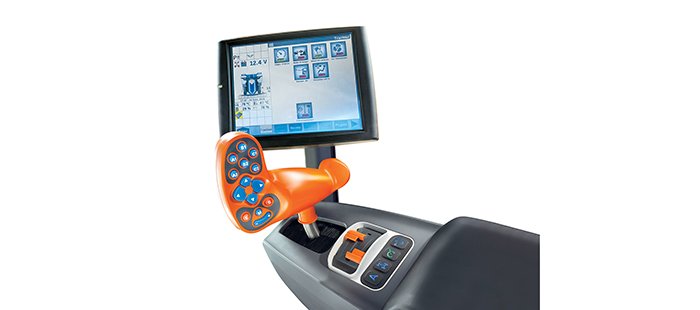

INTELLIGENT, INTUITIVE CONTROLThe multifunction handle allows you to control all key machine parameters, including travel speed and direction, manual leveling and harvesting head functions. The right armrest can be adjusted in length and height, and machine functions can be analyzed at a glance courtesy of the IntelliView™ IV plug and play touchscreen monitor.
| |
ROW TRACKING SYSTEM RTSOptional RTS uses GPS technology to map rows on the IntelliView™ IV monitor, displaying harvested rows, missed rows and overlaps.
| |
GRAPE WEIGHING SYSTEMThe optional grape weighing system is available on two-hopper versions of 9000 Series harvesters. The system weighs the machine before and after’ unloading. |
 |
Braud 9070M | |
| Vineyard type | Intermediate >4.26 ft (>1.3m) | |
| Engine | 4-cylinder | |
| Horsepower | 164 hp (121 kW) (CV) | |
| Hoppers | 623/819 gal (2360/3100 L) |
 |
Braud 9070L | |
| Vineyard type | Large >5.24 ft (>1.6m) | |
| Engine | 4-cylinder | |
| Horsepower | 164 hp (121 kW) (CV) | |
| Hoppers | 819/951 gal (3100/3600 L) |
 |
Braud 9090L | |
| Vineyard type | Large >5.24 ft (>1.6m) | |
| Engine | 6-cylinder | |
| Horsepower | 182 hp (134 kW) (CV) | |
| Hoppers | 977/1,056 gal (3700/4000 L) |
 |
Braud 9090X – Side Conveyor | |
| Vineyard type | >7.2 ft (>2.2m) | |
| Engine | 6-cylinder | |
| Horsepower | 182 hp (134 kW) (CV) | |
| Hoppers | 528 gal (2000 L) + Side Conveyor |
 |
Braud 9090X – 2 Hoppers | |
| Vineyard type | >7.2 ft (>2.2m) | |
| Engine | 6-cylinder | |
| Horsepower | 182 hp (134 kW) (CV) | |
| Hoppers | 528 gal (2000L) per hopper |
