New Holland Haybine® Mower-Conditioners
LEGENDARY CUT QUALITYFull header flotation and the reliable Haybine® cutterbar design assures close, even cutting every time. | |
PROVEN CONDITIONINGNew Holland’s plug-free roll-pressure system delivers smooth, thorough conditioning action. | |
SIMPLE ADJUSTMENTSCrop and field conditions change, and New Holland makes it easy to adjust the cutting and conditioning action of your Haybine mower-conditioner to match your needs. | |
RELIABLILITY YEAR AFTER YEARHigh-volume haymakers and small family farms alike depend on Haybine performance season after season. | |
THE INDUSTRY’S FIRST AND STILL THE BESTSince 1964 when New Holland introduced the first combined sickle mower and conditioner, the Haybine® name has been synonymous with time-saving, impeccable cutting performance, fast drying, and time-tested reliability. New Holland continues this legacy with the Haybine model 488 side-pull mower-conditioner and H7150 center-pivot, trail frame for HS Series 14-, 16-, and 18-foot mower-conditioner heads.
| |
MODEL 488 HAYBINE® MOWER-CONDITIONERThese side-pull models offer traditional producers just right capacity with a low power requirement and base models require no hydraulic connections ideally suited for classic tractors, many of today's compact models, as well as small utility tractor models.
| |
H7150 HAYBINE® MOWER-CONDITIONER TRAIL FRAME FOR HS SERIES HEADSIf you’re looking for consistent, high cutting quality combined with high capacity, look no further than the H7150 Haybine mower-conditioner trail frame paired with an HS Series sickle mower-conditioner head, available in cutting widths of 14, 16, or 18 feet. The center-pivot design combined with dual, counter-stroking sickles and wide cutting widths makes short work of large acreages.
|
SMOOTH, RELIABLE CUTTINGHaybine® mower-conditioners lead the pack in cutting through heavy, down and tangled crops. That smooth, reliable cutting starts with over-serrated, bolt-on knife sections, adjustable sickle hold-down clips and square back-bar guards. And Haybine sickle drive systems are designed to provide clean cutting, less wear and vibration, with minimum maintenance. | |
SINGLE KNIFE DRIVE (488)The 488 features New Holland’s proven single knife drive system. The reliable wobble joint sickle drive delivers fast sickle speed for clean cutting with minimum maintenance. | |
DUAL, COUNTER-STROKING SICKLES (H7150)Dual, counter-stroking sickles deliver smooth, clean cutting on the Model H7150 and HS 14-, 16- and 18-foot heads. They’re gear driven from both sides, operate with less vibration and are easy to service. A 1800-strokes-per-minute sickle speed plus a full 3-inch stroke combine for fast, high-capacity cutting.
| |
ADJUSTABLE CUTTING ANGLE AND HEIGHTIt’s easy to make a mechanical adjustment to knife and guard angle on the Model 488 to suit crop and field conditions. Hydraulic cutting angle adjustment is standard with the H7150 trail frame, allowing changes on the go, right from the tractor seat, which is ideal for working in rocky fields. Adjustable header skid shoes allow for easy changes in cutting height.
| |
CONSISTENT CROP FLOW AND UNIFORM CONDITIONINGThe smaller 488 model features a design where the reel sweeps crop directly from the cutterbar into the conditioning system for a smooth and direct crop flow. Reel speeds can be adjusted to compensate for crop conditions and ground speeds.
| |
|
The high-capacity, center-pivot H7150 is equipped with an HS Series Haybine® sickle mower-conditioner head that features a fully adjustable five-bat reel that smoothly sweeps crop from the wide 14-, 16-, and 18-foot cutterbars into the crop auger where it is uniformly fed into the conditioning system. Reel speed is variable using an adjustable sheave thatprovides an effective adjustment of reel tine tip speed to compensate for crop conditions and ground speeds.
|
THE HEART OF EVERY HAYBINE—CONDITIONINGGet gentle but thorough conditioning from New Holland chevron-design intermeshing rubber rolls. Their unique spiraled pattern helps grip the crop and keep it moving. The lugs crack the stem every three to four inches to release moisture for fast drydown. | |
UNIQUE ROLL-PRESSURE SYSTEMDon’t get bogged down with crop plugging. The New Holland torsion-bar roll-pressure system applies near-constant pressure to the crop, even as the crop mat thickness changes, delivering the most consistent conditioning available. When the rolls reach their maximum opening, the pressure decreases automatically to permit slugs of crop to pass through without plugging. | |
EASY NO-TOOLS PRESSURE ADJUSTMENTA turn of a crank is all it takes to change conditioning pressure to match field conditions. No tools are required. The critical roll-gap and roll tension can be adjusted for optimal conditioning, as well. For legumes, the roll should be maintained between 1/64 and 1/16 inches for optimum drydown.
| |
MODEL 488: STANDARD WITH RUBBER ROLL CONDITIONINGThe Model 488 is available with the proven New Holland chevron-design intermeshing rubber rolls. These rolls are nearly as wide as the cut to provide uniform conditioning to promote fast drying windrows or wide swaths.
| |
MODEL H7150 AND HS SERIES HAYBINE HEAD: CONDITIONING SYSTEM OPTIONSFor the commercial hay producer, a range of conditioning roll options includes our versatile chevron-design intermeshing rubber rolls. The gentle handling and full-stem crimping and cracking action promotes fast drying while protecting delicate leaves for maximum forage quality. Choose durable chevron-design intermeshing steel rolls when cutting green feed forage crops, extra-tall grasses, and cane-type crops. The steel chevron-design feeds crop uniformly and all-steel construction resists wear in abrasive crops and conditions. If you’re considering full-stem crushing for fast drying, high-contact rolls are specially machined for an exact fit for complete stem conditioning. These urethane rolls feature a machined groove to grip and move crop efficiently without sharp angles that can damage valuable leaves.
|
MOW AND CONDITION WITH EVEN SMALL UTILITY TRACTORSIdeal for small acreage operations, the side-pull Haybine® model 488 offers traditional producers clean sickle cutting while requiring only 35 PTO horsepower. The side-pull design works well for producers who mow small contour strips, and oddly shaped fields. With the mower-conditioner offset to the tractor’s right side, the design allows you to mow clockwise around fields. The standard drawbar attachment offers easy drop pin hookup without a drawbar extension. | |

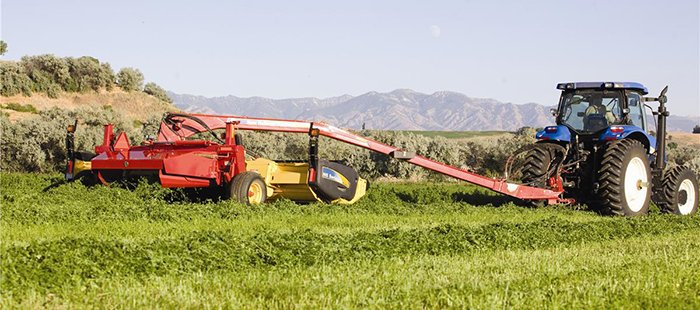

THE CONVENIENCE OF A PIVOT-TONGUE HITCHGet the capacity of a self-propelled windrower with the center-pivot design that’s standard on the H7150 trail frame when equipped up with an HS Series 14-, 16-, or 18-foot head.
| |
NO TRACTOR HYDRAULICS REQUIREDThe Haybine® model 488 requires no tractor hydraulics whatsoever. A rope-pull tongue swing latch is provided to transition from transport to working positions, then just manually lower the head and go to work. For tractors with at least one single-acting hydraulic circuit, an optional hydraulic head lift kit is available. |
 |
Haybine® 488 | |
| Cutting width | 9 ft., 3 in. | |
| Conditioning Roll Length | 102 in. | |
| Min. Tractor Requirement | 35 hp |
 |
H7150 Trail Frame and HS14 Haybine® Head | |
| Cutting width | 14 ft. 3 in. | |
| Conditioning Roll Length | 102 in. | |
| Min. Tractor Requirement | 70 hp |
 |
H7150 Trail Frame and HS16 Haybine® Head | |
| Cutting width | 16 ft. 3 in. | |
| Conditioning Roll Length | 102 in. | |
| Min. Tractor Requirement | 70 hp |
 |
H7150 Trail Frame and HS18 Haybine® Head | |
| Cutting width | 18 ft. 3 in. | |
| Conditioning Roll Length | 102 in. | |
| Min. Tractor Requirement | 70 hp |
haybine-mower-conditioner-472-488-brochure-us-en.pdf
