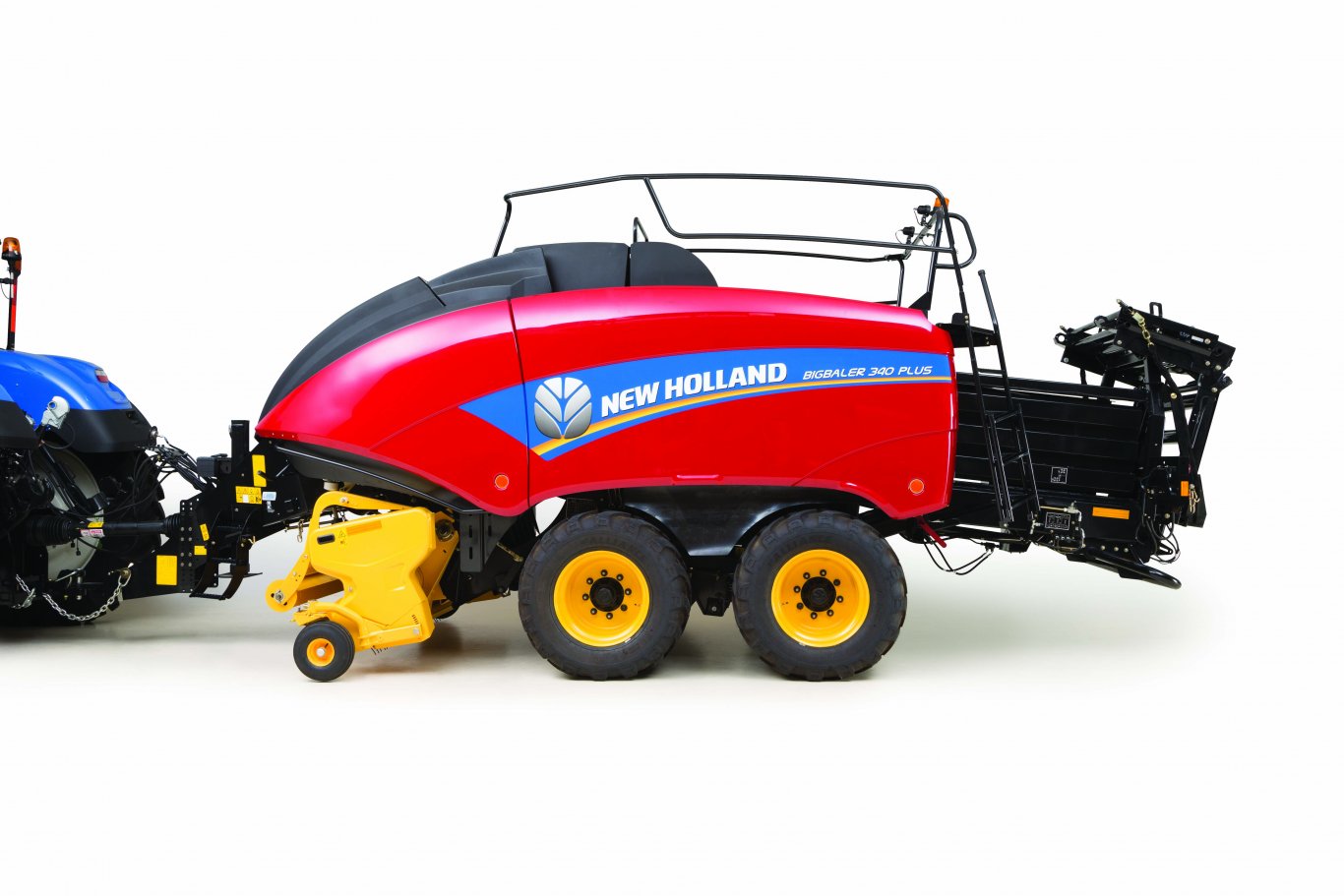

New Holland BigBaler Plus Series
EVEN HIGHER BALE DENSITYBale chamber is extended by 31.5 inches or 31% for up to 10% higher bale density. | |
SOFTER BALE DROPThe longer bale chamber also means bales exit the bale chute closer to the ground for gentler bale drop and less concern about twine breakage. | |
EASIER CLEANINGA larger platform allows for easier cleaning of the sides of the baler. | |
THE RIGHT MODEL FOR YOUWith the choice of three bale sizes with available crop processing and tire/axle combinations for any terrain, you’ll find a model that’s ideal for your needs. | |
SUPERIOR BALE DENSITY FROM THE LEADER IN HAYTOOLSDensity is king when it comes to producing big bales. New Holland’s lineup of BigBaler Plus large square balers features a bale chamber that is 31.5 inches longer to create bales with up to 10% higher bale density compared to previous non-Plus models. You get impressive bale shape and more consistent bale density throughout the day. Packing more crop into each bale results in more efficient bale handling, storage and transport. | |
HIGHER SPEEDS AND HIGHER BALE QUALITYIt’s a competitive market and New Holland BigBalers are designed to make superior, square, dense bales every time with no excuses. The industry-leading pre-compression chamber ensures perfect flake formation, and the three-way density system builds solid bales. SmartFill™ bale flake formation indicators provide real-time feedback to ensure consistent performance in any windrow or field condition. | |
NEW BIOMASS OPTION
(available on all Standard and Packer Cutter balers)
Biomass pre-charge chamber bands are available as a factory-installed option to improve crop flow in stalky, thick-stemmed biomass crops like cornstalks, sunflowers and miscanthus. | |
| |
| |
| |
AXLE CHOICESChoose the axle to match your terrain – the single axle, standard steerable AutoSteer™ tandem axle or large-wheel steerable AutoSteer™ tandem axle with 22.5-inch flotation tires for low soil pressures and higher field speed. |
RUGGEDNESS TO MATCH CAPACITY
ULTIMATE MANEUVERABILITY
GET THE BENEFITS OF SHORTER CHOP LENGTHChopping crop as it’s fed into the baler provides a number of advantages. The shorter particle length allows for tighter packing of material in the bale, better fermentation in silage bales due to less air in the bale and more anaerobic bacteria activity. Cutting silage, hay or straw bales also allows for more efficient feeding and spreading of material. New Holland offers two CropCutter™ processing options—the high-performance Rotor Cutter feeding system and the more simple, economical Packer Cutter system. | |
ABRASION RESISTANT OPTIONA new abrasion resistant rotor feeder option is available from the factory, and provides high wear resistance when working in cornstalks and sugarcane trash. | |
ROTOR CUTTER (BIGBALER 330 PLUS/340 PLUS ONLY)New Holland’s Rotor Cutter System gives you a widest range of chop lengths to match specific forage requirements. Select from two cut length configurations—the short cut configuration delivers chop length as small as 1.5 inches, while the medium cut configuration delivers a chop length of 3.0 inches. The proven W-shaped rotor pattern divides the power requirement equally and also ensures an equal distribution of crop. The rotor now matches the width of the pre-compression chamber for straight-through, smoother crop flow, increased flake density and capacity. | |
SLIDE-OUT KNIFE DRAWERThe industry-leading, one-piece, slide-out knife drawer makes knife inspection and sharpening fast and easy. Sharp knives require less power and lead to a more consistent cut length. | |
PACKER CUTTER (BIG BALER 330 PLUS ONLY)The simple, effective Packer Cutter uses three packer forks and six double tines to feed the crop through a set of serrated knives and into the pre-compression chamber. It allows for chop lengths as short as 4.5 inches. The packer slip clutch features a more durable design for long life and reliable performance. For convenience, you can engage and disengage the cutter function from the tractor seat. Unlike competitive designs using tines or rotor lobes of the same length, New Holland’s staggered tine lengths/rotor lobes prevent the crop from pinching, which reduces crop damage, accelerated baler wear and the need for increased tractor horsepower. A fill-flow floor improves crop flow in high-moisture conditions. |
MAXISWEEP™ SPEED AND PEFORMANCEThe MaxiSweep™ pickup is designed to give you unsurpassed performance. Flare-to-flare width ranges from 77.5 inches on the 330 Plus Standard to 92.6 inches on the BigBaler 340 Plus CropCutter™ model. | |
“S”-SHAPED SIDE SHIELDINGThis industry-exclusive design works to maintain crop flow into the augers. Material can even enter from the sides, especially important when picking up crop material at the edge of over-width windrows. The industry secret—top-undershot and bottom-overshot augers work in conjunction with the integrated crop flares to maintain constant, fast crop flows when negotiating curved windrows or slicing through overlapping end rows. Space between the end of the crop flare and outside tines is minimal to prevent crop from being missed. | |
STANDARD ROLLER WINDGUARDThe roller windguard is a standard feature. It rides the contour of the windrow on spring suspension to compress the windrow as it enters the pickup for increased throughput and better flow in extra-heavy windrows. Another standard feature is the full-width feed assist roller. Combined with the counter-rotating augers, it maintains constant and fast crop flow in the packer or rotor – a key component of continuous and high-capacity feeding. | |
FAST, SIMPLE ADJUSTMENTS
Adjusting pickup flotation is quick with no tools required. The spring-loaded suspension system maintains the pickup contact with the ground, even in rough, uneven terrain at high speeds. Spring-loaded gauge wheel adjustment means no tools required and nothing gets lost. | |
BEEFY CONSTRUCTIONLonger and thicker pickup tines are more durable and effective. Strong 2-mm profiled pickup guards with welded tine bar supports, as well as stronger cam and cam bearings increase durability and pickup performance. Thick frame and side sheets increase rigidity—important when operating at higher speeds, driving over pivot tracks and uneven terrain. | |
OPTIONAL CASTERING GAUGE WHEELThe factory-fitted castering gauge wheel option allows the pickup to follow the ground when following curvy windrows and during turn-rows. A heavy-duty turf tire option is available from the factory. |
WIDEST RANGE OF CHUTE OPTIONSNo matter which type of chute you choose, bales drop more gently to the ground, thanks to the extended bale chamber. A single-piece roller bale chute comprised of all rollers allows the bale to glide effortlessly out of the bale chamber to the ground. The deluxe, industry-exclusive, soft-drop, two-piece roller bale chute features a tilt-table design for gentle handing of heavy bales for fewer broken strings. | |
PARTIAL OR FULL BALE EJECTNEW Partial and Full Bale-Eject™ systems feature an active teeth system for more durability and reliable bale ejection. New Holland’s Partial Bale-Eject™ system allows you to eject the last full, tied bale in the chamber without affecting the untied bale in front of it. Then you’re ready for transport between customers. When changing between crops, transferring to the next customer, or at the end of the season, you can completely clean out the chamber by tripping the knotters to tie off the last partial bale, then using the Full Bale-Eject™ system to eject both the complete bale and the partial bale next to the plunger. Using the appropriate hydraulic lever engages all of the teeth to quickly clean out the chamber. | |
REDUCE TRIPS THROUGH THE FIELD WITH AN ACCUMULATORNew Holland accumulators allow you to accumulate bales and place them in the field together to reduce passes over the field and reduce fuel use. You control the accumulator using the IntelliView™ III or IntelliView™ IV monitor. The AC4104 accumulator handles haylage, straw and dry bales ranging from 4.5 to 9 feet long. Four optional automatic dump patterns allow you to arrange bales together for a package that fits your handling needs. You can eject bales in groups of 2, 3 or 4, or you can manually eject single bales. | |
3 X 4 VERTICAL-STACK ACCUMULATOR OPTIONThe VS1202 field-smart accumulator allows you to drop up to a vertical three-pack of bales to eliminate telehandler stacking time and associated field damage. |
 |
BigBaler 330 Plus | |
| Bale Width | 35.4 in. | |
| Bale Height | 31.5 in. | |
| Max Bale Length | 108 in. | |
| Length of Cut | N/A |
 |
BigBaler 330 Plus CropCutter™ Packer Cutter | |
| Bale Width | 35.4 in. | |
|
Bale Height
9 ft., 2 in. |
31.5 in. | |
| Max Bale Length | 108 in. | |
| Length of Cut | 4.5 in. minimum |
|
|
BigBaler 330 Plus CropCutter™ Rotor Cutter | |
| Bale Width | 35.4 in. | |
|
Bale Height
9 ft., 2 in. |
31.5 in. | |
| Max Bale Length | 108 in. | |
| Length of Cut | 1.5 in. minimum |
 |
BigBaler 340 Plus | |
| Bale Width | 47.2 in. | |
|
Bale Height
9 ft., 2 in. |
35.4 in. | |
| Max Bale Length | 108 in. | |
| Length of Cut | N/A |
 |
BigBaler 340 Plus CropCutter™ Rotor Cutter | |
| Bale Width | 47.2 in. | |
|
Bale Height
9 ft., 2 in. |
35.4 in. | |
| Max Bale Length | 108 in. | |
| Length of Cut | 1.5 in. minimum |
