New Holland BIGBALER HIGH DENSITY SERIES
HIGH-DENSITY PERFORMANCEBigBaler 340 High Density balers can deliver up to 22% higher-density bales than other conventional large square balers, and up to 15% more when compared to BigBaler 340 PLUS models. | |
Smooth Baler EngagementExclusive SmartShift™ gearbox features two-speed start-up technology for smooth baler engagement while protecting the tractor’s driveline. | |
Hydraulic Axle SuspensionProvides excellent ground following ability and superior accessibility underneath the baler. | |
Stronger KnotsPatented Loop Master™ knotter system increases overall bale tensile strength up to 26% for lower operating costs while eliminating twine offcuts. | |
ALL-OUT EFFICIENCYTrue to its name, the BigBaler 340 High Density packs more crop into every bale. Put into numbers, the BigBaler 340 High Density can deliver up to 22% higher-density bales than other conventional large square balers, and up to 15% more when compared to a BigBaler 340 PLUS. | |
IMPROVED PICKUP PRODUCTIVITY AND DURABILITYThe BigBaler 340 High Density ensures exceptional productivity with its efficient, five-bar MaxiSweep™ pickup. This pickup efficiently collects large, wide windrows for uniform, high-capacity feeding. A short, narrow tongue profile provides outstanding baler maneuverability at headlands and improves visibility of the pickup. | |
| |
| |
| |
ADVANCED SUPPORT When you’re operating a tractor that measures productivity and precision in seconds and fractions of an inch, you have no patience for “downtime”. With MyPLM™Connect you can stay in touch with your machines at all times, from anywhere. We have incorporated remote connectivity to provide New Holland Remote Assistance, advanced diagnostics, IntelliView™ Connect remote Display Viewing and software updates. Customer-to-Vehicle Connectivity Allows you to run your farm business from the cab, the farm office or the other side of the world. Dealer-to-Vehicle Connectivity Helps you minimize downtime with proactive support, remote monitoring and diagnostics and in-field software updates. Advisor-to-Vehicle Connectivity Lets you stay in touch with agronomists and other experts to improve decision-making on the move. | |
MyPLM™Connect Advanced package free for 5 years Assisting fleet managers to make right time decision. Providing real time field data at your fingertips. Enabling accurate data management to improve operating efficiency. It all comes standard on T9 with PLM Intelligence™. What’s more, in order to improve your uptime, New Holland’s Breakdown Assist service has been fully integrated, free of charge. | |
Access to MyPLM™Connect Portal through MyNew Holland™ MyNew Holland™ provides owners and users the ability to view and manage their machinery fleets online. Users will be able to access a range of information, such as operator manuals and how-to videos as well as an option to view activations and subscriptions via the live link to the VMS tool. Users can even make purchase requests direct with their dealer to activate a service or takeout a subscription. MyNew Holland™ also provides direct access to the MyPLM™Connect Portal. | |
INTUITIVE SIMPLICITY True innovation doesn’t require an advanced degree to operate. To help you harness all of the powerful features and technologies built into the new T9, we developed a user-friendly interface that feels as natural and instinctual as agriculture itself. Improved button orientation and handle ergonomics put precision command in your hands and enhanced joystick design lets you control tractor transmission functions as well as hydraulic remotes. Easily split screens, expand tiles, and set up tasks right from the homescreen on the new IntelliView 12™ in-cab display. Plus bluetooth connection allows you to control phone and radio through armrest or display. | |
A CLOSER LOOK AT WHAT POWERS YOUR PROFITS Take a closer look at the T9 Series with PLM Intelligence advantages that improve your productivity, decrease your cost of ownership and boost your bottom line. |
SMOOTH BALER ENGAGEMENT

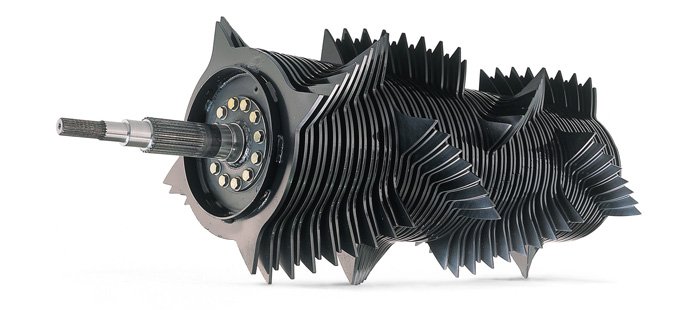

CROPCUTTER® FEEDING SYSTEM
PACKER FEEDING SYSTEM
BENEFITS OF SHORTER PARTICLE LENGTHCutting crop as it’s fed into the baler delivers shorter particle lengths, which results in tighter material packing and greater bale density. Cutting material with up to 29 spring-protected knives can help improve silage bale fermentation, feed digestibility, bale breakup and mixing, and material absorbency. Added density can also mean more weight per bale and more tons per truck, providing even greater savings for you. | |
KNIFE DRAWERSharp knives require less power and lead to a more consistent cut length. The one-piece, slide-out knife drawer makes knife inspection and sharpening fast and easy. Knives are hydraulically activated from the cab. When cutting is not desired, the knife slots are easy to keep clean by using the supplied blanking plates that are conveniently stowed. | |
DIRECT PRECOMPRESSION CHAMBER FEEDINGThe high-performance CropCutter rotor cutting and feeding system moves material directly into the pre-compression chamber. When the desired pre-chamber density is achieved, the stuffer starts and swiftly moves the perfect flake into position. In the most difficult baling conditions, the rotor floor can hydraulically drop away to release the crop pressure for even easier restarting. |
START WITH THE PLUNGER BACKHigh density does not mean hard starting. When the machine is stopped, the smart brake stops the plunger away from the bale face. Since the plunger does not press on the bale face at startup, initial harsh-starting torque loads are virtually eliminated. | |
SMARTSHIFT™ GEARBOXThe award-winning SmartShift gearbox features two-speed startup technology to deliver even smoother baler engagement, so your tractor’s driveline is always protected. How does it work? Once the PTO reaches 850 rpm, the easy-start feature engages the baler and automatically shifts from 1st to 2nd gear, accelerating the flywheel to a maximum speed of 1440 rpm at full PTO speed. | |
HIGH-ENERGY FLYWHEELBigBaler 340 High Density balers feature a flywheel that is 130-pounds heavier than the one found on BigBaler PLUS balers. It also has a 16% larger diameter, coming in at 42.5 inches (1080 mm), and turns faster to deliver 230% more energy. | |
BUILT FOR LONG LIFE AND DURABILITY
|
The new super-duty main gearbox has two drive gears driving the main output gear, which leads to an increased gear-to-gear surface contact area for greater durability and more efficient, balanced power load distribution.
HEAVY-DUTY FRAME
A new, even more robust frame has been designed to withstand higher-density loads created by the baler. The new main gearbox is mounted to the top beam to reduce crop accumulation underneath and increase durability. Additionally, the drawbar is not part of the main frame to facilitate height adjustment via the dedicated height adjustment rods, which is convenient when baling with different tractors. | |

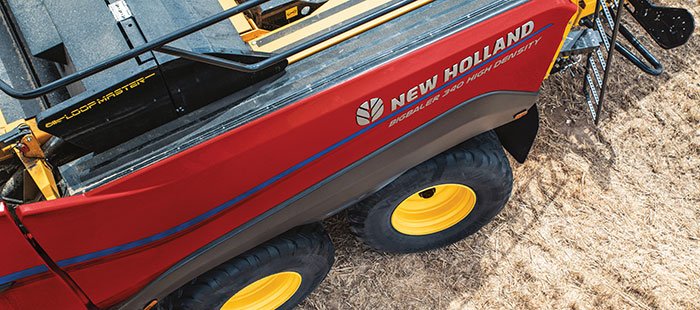

EFFICIENT SUSPENSION
The new hydraulic suspension system delivers improved ground following and ensures perfect weight distribution across all four wheels. On uneven terrain, when the front wheel goes up, the rear wheel goes down, which improves field-hugging performance and reduces tire wear. | |
AUTO-STEER TANDEM AXLES
The Auto-Steer tandem axle provides efficient turning and less stubble damage. The baler’s wheelbase has also been extended to deliver a best-in-class steering angle for even tighter turns, resulting in shorter headlands, easy road transport, and improved servicing access. | |
LARGER TIRES
Larger diameter tires, up to 59 inches tall, can be fitted to the BigBaler 340 High Density to help reduce soil compaction. Choose the standard 600/50 R22.5 tires, or upgrade to the 620/55 R26.5 tires for the lightest possible footprint. Regardless of tire choice, transport width remains less than ten-feet wide down the road. | |
 |
BigBaler 340 High Density | |
| Bale Dimensions - Width in. (cm) | 47 (120) | |
| Bale Dimensions - Height in. (cm) | 35 (90) | |
| Feeding System | Packer Feed | |
| Loop Master™ double knot type | Standard |
 |
BigBaler 340 High Density CropCutter® Rotor Cutter | |
| Bale Dimensions - Width in. (cm) | 47 (120) | |
|
Bale Dimensions - Height in. (cm)
9 ft., 2 in. |
35 (90) | |
| Feeding System | Rotary Feed | |
| Loop Master™ double knot type | Standard |
| Name | Link |
| BigBaler High Density - Brochure | Download |
