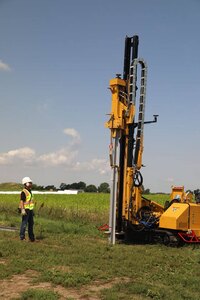

Vermeer PD10R Pile Driver

Specifications

Model	PD10R Pile Driver	Category Name	Equipment	Year	2025
Sale Type	New	Manufacturer	Vermeer	Odometer	km
Price	Contact for price CAD

Description

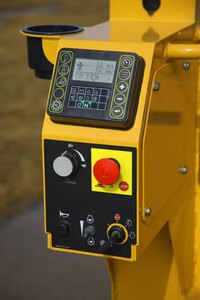

The PD10R has been specifically designed to be operated by a full-function wireless remote, allowing an operator to handle machine functions -- including engagement of the hammer, pile accuracy with the auto plumb feature, and ground drive -- while remaining off the machine. An optional automation feature on the PD10R can also help improve jobsite efficiency and reduce the number of steps needed from the operator to complete the install.

DIMENSIONS

Fuel_Tank

18 gal (68.1 L)

Hydraulic_Tank

36 gal (136.3 L)

Operating_width

10.1 ft (3.1 m)

Operating_length

10.2 ft (3.1 m)

Engine_crankcase_with_filter

2.1 gal (7.9 L)

Transport_width_-_20'_(6.1_m)_mast

101 in (256.5 cm)

Transport_height_-_20'_(6.1_m)_mast

108 in (274.3 cm)

Transport_length_-_20'_(6.1_m)_mast

122 ft (37.2 m)

Operating_weight_-_20'_(6.1._m)_mast

15560 lbs (7057.9 kg)

Maximum_operating_height_-_20'_(6.1_m)_mast

24.9 ft (7.6 m)

OPERATIONAL

Track_drive

Steel track with urethane pads

Impact_drive_type

High-frequency hammer

Hydraulic_pump_type

Sauer Danfoss H1 hydrostatic

Maximum_Hammer_Energy

950 Joules

Maximum_hammer_impact

1500

Maximum_Transport_Speed

1.7 mph (2.7 km/h)

Maximum_angle_(direction_of_travel)

11 deg

Maximum_angle_(perpendicular_to_travel)

20 deg

Maximum_pile_dimension_(round_-_large_opening)

9.3 in (23.6 cm)

Maximum_pile_dimension_(square_-_large_opening)

8.3 in (21.1 cm)

FEATURES & OPTIONS

Features

Autoplumb - Standard
Maximum laser operating distance - 1500 ft (457.2 m)

Options

Cooling Medium - Liquid
EPA Certification Family - Tier 4i (EU family Stage IIIA)
EPA Certification Family - Tier 4 Final (EU family Stage IIIA)
Fuel Type - Diesel
Gross Horsepower - 49 hp (36.5 kw)
Make and Model - Deutz D 2.9 L4
Make and Model - Deutz D 2.9 L4 Tier 4 Final
Number of Cylinders - 4
