Vermeer VSR440 Single-screw Vertical Mixer

Listing image Listing image Listing image Listing image
Specifications

Model VSR440 Single-screw Vertical Mixer Category Name Agriculture Year 2025
Sale Type New Manufacturer Vermeer Odometer km
Price Contact for price CAD
Description

Maximize the value of your high-roughage ration with the Vermeer VSR440 single-screw vertical mixer. Get ample processing power with virtually no spillage from the combination of durable, reliable, essential features and a low-maintenance, high-performing design for full-time or seasonal use.
DIMENSIONS
Total_length
197 in (500.4 cm)

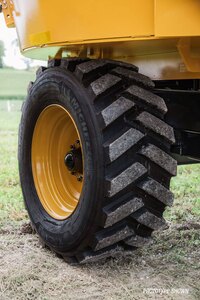

Tires_(retread)
Standard 445/50R-22.5; Optional 445/50R-22.5 lug; Optional 255/70R-22.5 dual
Maximum_net_load
10000 lbs (4535.9 kg)
Loading_height_-_standard
109 in (276.9 cm)
Machine_weight_-_standard
8570 lbs (3887.3 kg)
Working_width_-_50-in_folding_conveyor_extension
156 in (396.2 cm)
Transport_width_-_50-in_folding_conveyor_extension
130 in (330.2 cm)
DRIVETRAIN
Driveline
Standard: 540 rpm, CV; Optional: 1000 rpm, CV
Screw_rpm
1000-rpm configuration: 48; 540-rpm configuration: 40
Torque_Protection
Shear bolt
OPERATIONAL
Capacity
420 cu ft (11.9 cu m)
Scale_display
Digi-Star EZ2500
Discharge_style
Side conveyor
Floor_thickness
3/4 in (19.1 mm)
Number_of_screws
1
Number_of_screws
1
Tub_wall_material
Regular structural steel
Tub_wall_thickness
1/4 in (6.4 mm)
Discharge_Direction
Right
Minimum_PTO_horsepower
120 hp (89 kW)
Screw_flighting_material
AR200
Screw_flighting_thickness
1/2 in (12.7 mm)
Number_of_knives_per_screw
7
Recommended_PTO_horsepower
130 hp (96.9 kw)
Folding_conveyor_extension_length
50 in (130 cm)
LITERATURE
Name Link
OEM Brochure Download
