Bourgault 8550
|
|
Specifications
Model |
8550
|
Year |
2023
|
Sale Type |
New
|
Manufacturer |
Bourgault
|
Quantity |
0
|
Manufacturer Qty |
0
|
Price |
Contact for price CAD
|
|
|
|
Description
AIR CART LEGACY, PLUS, ADVANCED TECHNOLOGY
The 8000 Series Air Cart lineup offers a wide range of premium features in a tank configuration that continues Bourgault’s legacy as the air cart leader in the industry. Available in leading and trailing models, the 8000 Series is a winning solution for the progressive Producer who does not require the immense volumes of the 9000 I Series Air Carts.
|
INDUSTRY-LEADING FLEXIBILITY
Unbeatable Features in a Mid-Sized Series
- Bourgault maximizes volume flexibility with its winning combination of the KNEX™ Integral Tank System and optional Saddle Tank™.
- The Saddle Tank™ option makes handling bagged product, such as canola or granular inoculant, both easy and convenient.
|
|
|
CONTROL & MONITORING
|
CONTROL_&_MONITORING
- The X35 Apollo System Achieve unprecedented control of up to 6 products, as well as perform advanced seeding operations with the X35 Apollo System.
- The ISO Apollo System Calibrate and perform basic rate control functions for up to 4 products with tractors equipped with universal terminals.
|
CONVENIENCE & SAFETY
|
CONVENIENCE_&_SAFETY
From the EZ™ Air Cart Hitch, to the rear-view camera and LED exterior tank lights, the 8000 Series allows you to work efficiently and safely.
- Safety catches on the tank lids prevent lid strikes if the Operator inadvertently opens the tank when pressurized.
- Get "close enough" when pinning the air cart to the seeding implement with the EZ™ Air Cart Hitch.
- Increase rear visibility with the optional rear-view camera.
- Improve in-tank and exterior illumination with optional LED Lights.
|
DEPENDABILITY AND ACCURACY
|
DEPENDABILITY_&_ACCURACY
8000 Series Product Distribution System
The proven Bourgault Class A Metering System design has served Bourgault Customers since 1980. This tried-and-tested design is used yet today on the 8000 Series Air Carts.
The Class A Metering System consists of:
- the Straight-Through Primary Distribution System;
- Dual Auto Section Control™ (available on specific models);
- the PDM Pro™ Metering System;
- hydraulic calibration; and,
- fan options to match application requirements.
|
QUICK AND EFFECTIVE PRODUCT TRANSFER
|
QUICK_&_EFFECTIVE_PRODUCT_TRANSFER
Whether you're using the Load/Unload Augers, the BagLift™ Product Transfer System, or the FillChute™; 8000 Series Air Carts have many options for easily and effectively transferring product.
- Load product quickly using the Load/Unload Auger;
- Lift bagged product effectively, and, at the same time, save your back from strain with the BagLift™ Product Transfer System;
- The FillChute™ is an option for units equipped with the Saddle Tank™.
|
TIRE OPTIONS
|
TIRE_OPTIONS
- Many tire options are available, with one that will suit your situation, ensuring minimal compaction, even with full tanks!

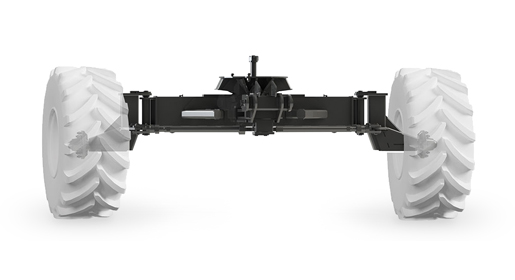

- To accommodate controlled traffic farming, an optional 3 meter front axle on the trailing air carts and high capacity rear single tire options are available.
|
MAIN SPECIFICATIONS
|
Main_Specifications
- The 9950, L9950 and 91300 tanks have a 49/18/11/23 ratio, optimized for one-pass Producers using all dry products.
- The 9650 and L9650 have a 30/20/20/30 ratio, optimized for Producers using dry fertilizer combined with liquid or anhydrous fertilizer.
|
Cart Volumes
The ratios between the various compartments of each model have been calculated to deliver maximum product flexibility and increased convenience resulting in less stops in the field.
|
Models |
91300 |
9950 |
9650 |
L9950 |
L9650 |
Volume (bu) |
1,300 |
950 |
650 |
950 |
650 |
Tank 1 (bu) |
635 |
465 |
195 |
220 |
195 |
Tank 2 (bu) |
230 |
165 |
130 |
100 |
130 |
Tank 3 (bu) |
140 |
100 |
130 |
165 |
130 |
Tank 4 (bu) |
295 |
220 |
195 |
465 |
195 |
Opt. Saddle Tank (bu) |
44 |
44 |
44 |
44 |
44 |
Height, Transport (empty) |
14'9" |
13'5" |
12'1" |
13'5" |
12'1" |
Field (empty) |
17'7" |
16'3" |
14'11" |
16'3" |
14'11" |
Width, Rear Single Tires |
N/A |
N/A |
18'1" |
N/A |
N/A |
Width, Rear Dual Tires |
20'11" |
20'11" |
20'11" |
20'11" |
20'11" |
Width, Front Single Tires |
N/A |
12'8" |
12'8" / 9'10"* |
N/A |
N/A |
Width, Front Inner Duals |
11' |
11' |
11' |
N/A |
N/A |
Width, Front Outer Duals |
17'4" |
17'4" |
17'4" |
N/A |
N/A |
Tire Spacing Rear Sgl |
N/A |
N/A |
11'6" |
N/A |
N/A |
Tire Spacing Rear Inner Dual |
10'9" |
10'9" |
10'9" |
10'9" |
10'9" |
Tire Spacing Rear Outer Dual |
18'1" |
18'1" |
18'1" |
18'1" |
18'1" |
Wheelbase |
23' |
23' |
22' |
N/A |
N/A |
Overall Length |
55'7" |
48'9" |
48'9" |
44'5" |
44'5" |
Front Pin to Opt. Rear Hitch Pin |
N/A |
N/A |
N/A |
39'3" |
39'3" |
Front Hitch to Axle |
N/A |
N/A |
N/A |
30'2" |
29'10" |
Weight, Empty (lb)** |
50,500 |
42,800 |
38,800 |
38,500 |
35,100 |
Hitch Weight, Empty (lb) |
N/A |
N/A |
N/A |
4,600 |
4,200 |
Hitch Weight, Max (lb)*** |
N/A |
N/A |
N/A |
11,000 |
10,400 |
* 9650 & L9650 available with optional 3 meter tire spacing with high capacity single tires;
** Refers to a commonly equipped configuration (includes dual tires, conveyor, Auto Section Control, Saddle Tank™ with Platform, surge brakes);
*** Max hitch weight is calculated using tanks 1 to 5 being filled with 65, 75, 75, 75, & 70 lb/bu density product respectively.
|
AIR CART FAN REQUIREMENTS
Hydraulic Requirements & Recommendations
- Minimum operating pressure of 2,900 psi.
- Recommended operating pressure of 3,100 psi.
- Hydraulic flow requirements are dependent on type of air cart fan selected.
Minimum Fan Speed Requirements
Each air cart is equipped with a Minimum Fan Speed Chart Manual to identify the best starting point for specific products.
|
|
