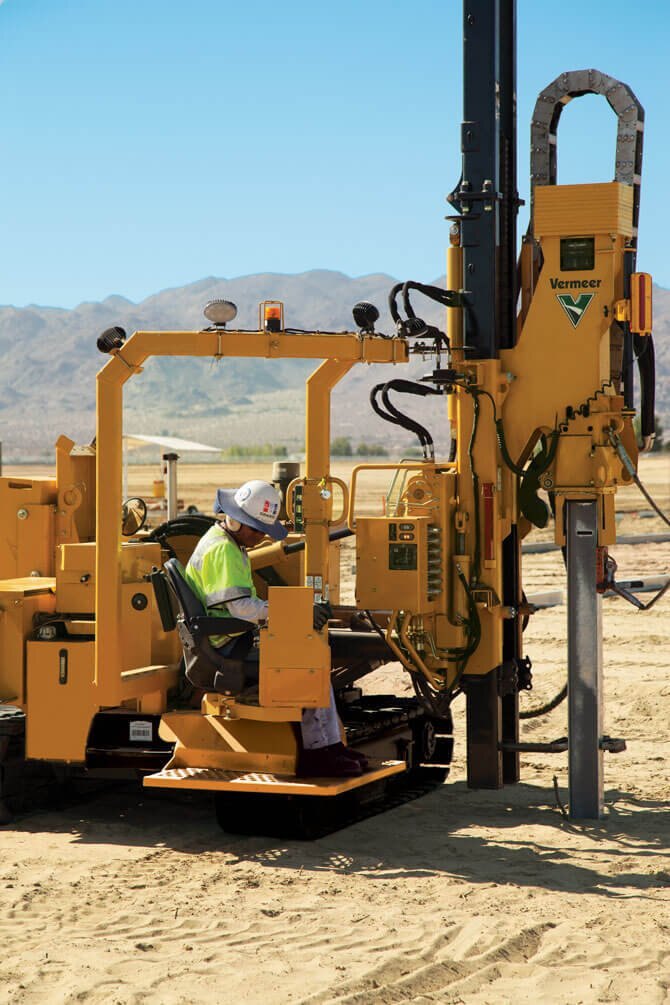

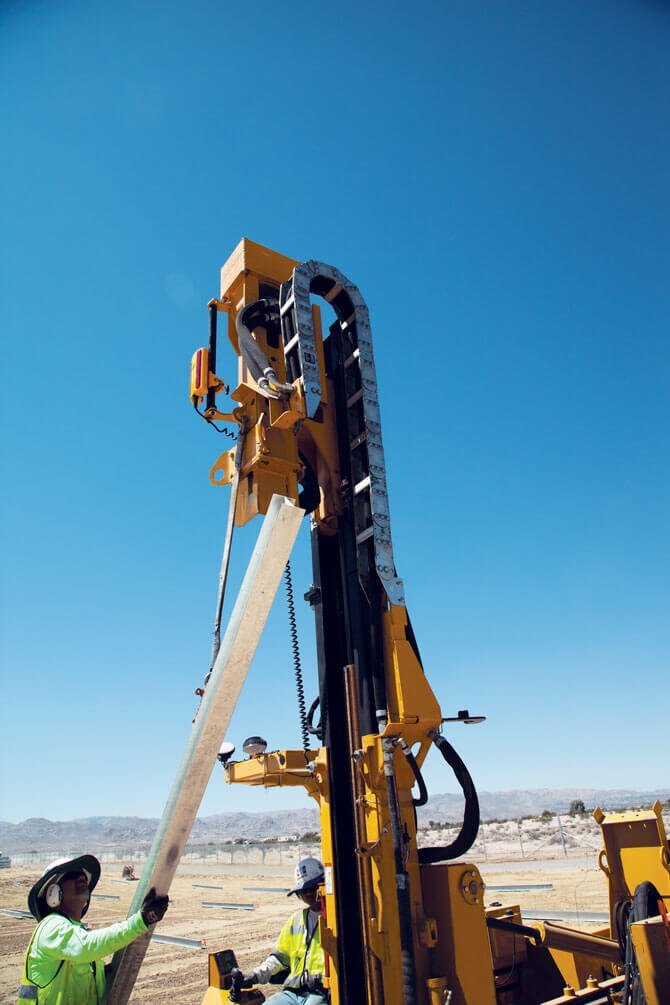

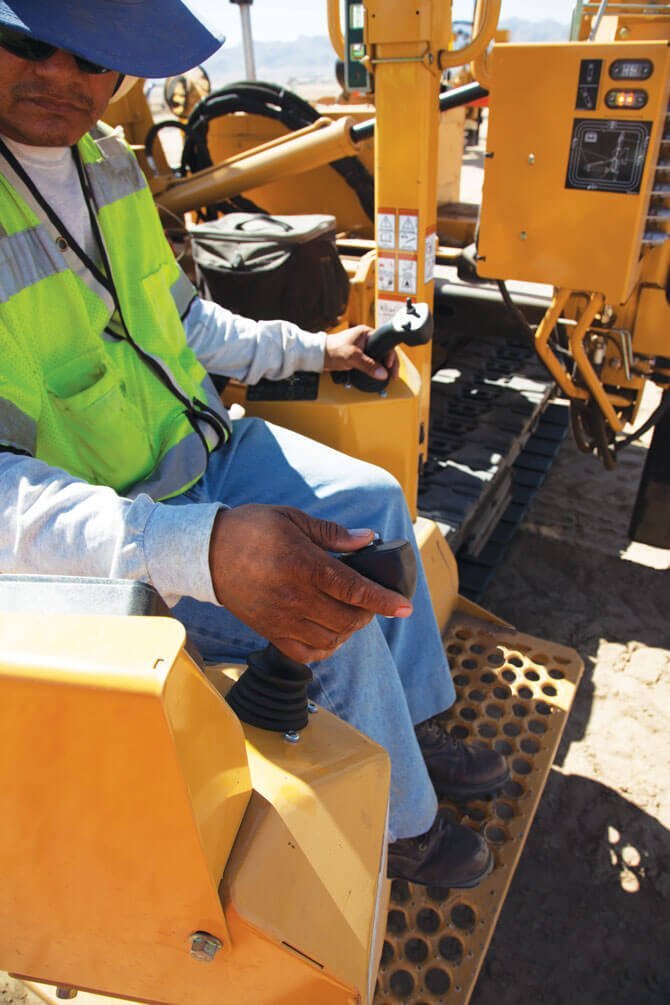

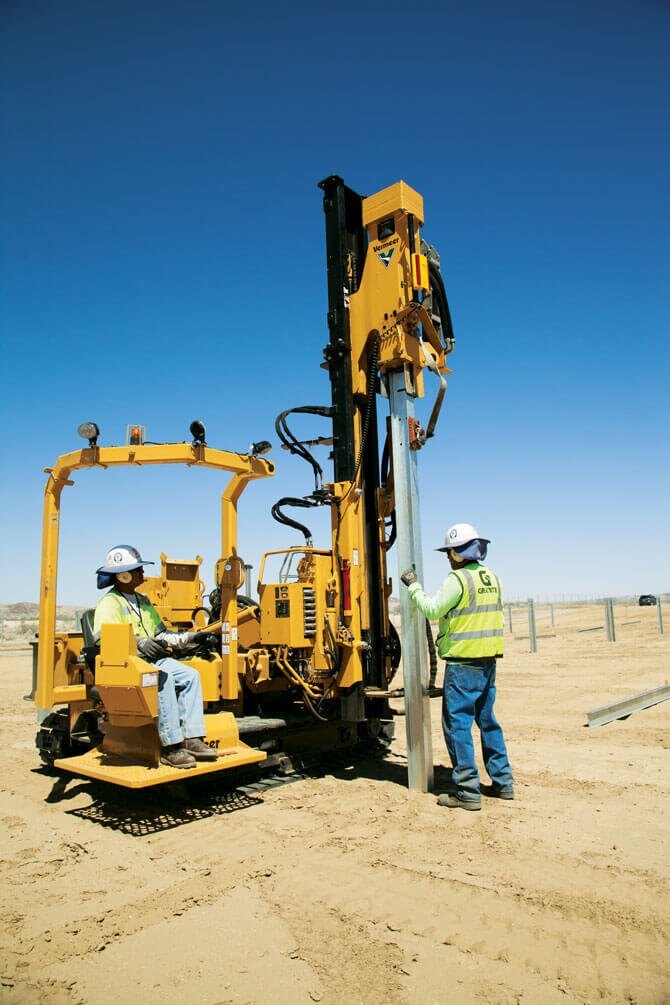

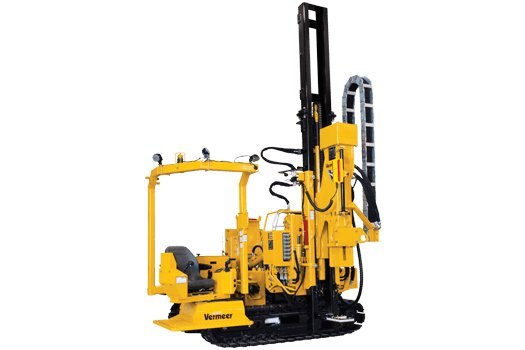

Vermeer PD10 Pile Driver
Call for Price
Overview
Specifications
dimensions
operational
features & options
litareture
Documents
| To answer the need for quick-working, accurate equipment, Vermeer has developed the robust, productive PD10 pile driver. The PD10 has been specifically designed to meet the tight tolerances demanded by commercial solar contractors and the expansive solar fields they install. |
Model
PD10 Pile Driver
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Fuel Tank
18 gal (68.1 L)
Hydraulic Tank
36 gal (136.3 L)
Operating Width
10.1 ft (3.1 m)
Operating Length
10.2 ft (3.1 m)
Engine Crankcase With Filter
2.1 gal (8.1 L)
Transport Width - 10' (3 M) Mast
99 in (251.5 cm)
Operating Weight - 10' (3 M) Mast
14135 lbs (6411.5 kg)
Transport Height - 10' (3 M) Mast
106.3 in (270 cm)
Transport Length - 10' (3 M) Mast
10.2 ft (3.1 m)
Transport Width - 15' (4.6 M) Mast
99 in (251.5 cm)
Transport Width - 20' (6.1 M) Mast
101 in (256.5 cm)
Operating Weight - 15' (4.6 M) Mast
14320 lbs (6495.4 kg)
Transport Height - 15' (4.6 M) Mast
106.3 in (270 cm)
Transport Height - 20' (6.1 M) Mast
110 in (279.4 cm)
Transport Length - 15' (4.6 M) Mast
10.2 ft (3.1 m)
Transport Length - 20' (6.1 M) Mast
10.1 ft (3.1 m)
Operating Weight - 20' (6.1. M) Mast
15980 lbs (7248.4 kg)
Maximum Operating Height - 10' (3 M) Mast
14.9 ft (4.5 m)
Maximum Operating Height - 15' (4.6 M) Mast
19.9 ft (6.1 m)
Maximum Operating Height - 20' (6.1 M) Mast
24.9 ft (7.6 m)

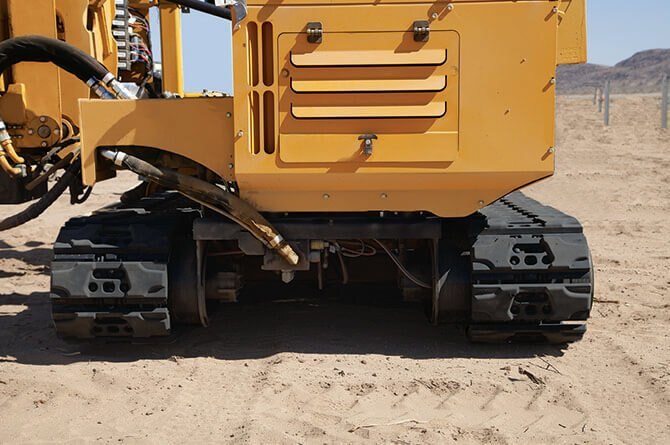

Track Drive
Steel track with urethane pads
Impact Drive Type
High-frequency hammer
Hydraulic Pump Type
Sauer Danfoss H1 hydrostatic
Maximum Hammer Energy
950 Joules
Maximum Hammer Impact
1500
Maximum Transport Speed
1.7 mph (2.7 km/h)
Maximum Angle (direction Of Travel)
11 deg
Maximum Angle (perpendicular To Travel)
20 deg
Rollover Protection System (ROPS) Rating
16300 lbs (7393.6 kg)
Maximum Pile Dimension (round - Large Opening)
9.3 in (23.6 cm)
Maximum Pile Dimension (square - Large Opening)
8.3 in (21.1 cm)
Maximum Pile Dimension (round - Standard Opening)
7.2 in (18.3 cm)
Maximum Pile Dimension (square - Standard Opening)
6.2 in (15.7 cm)
