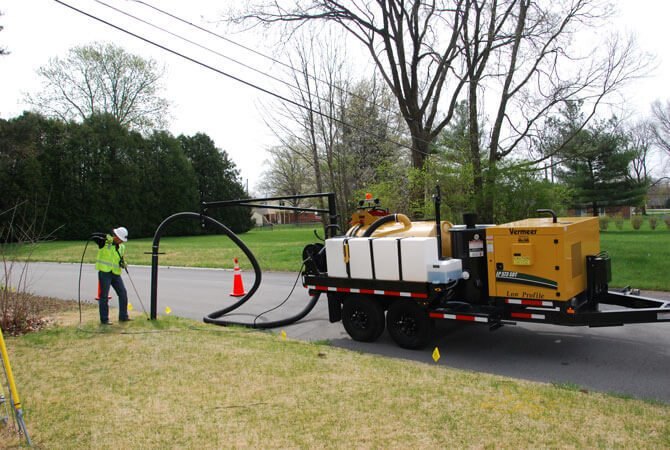

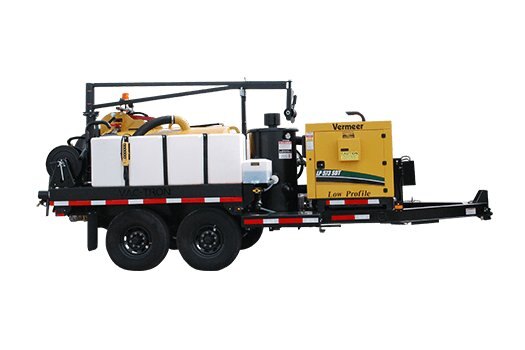

Vermeer LP SGT Vacuum Excavator

  • Vermeer LP SGT Vacuum Excavator
  • Vermeer LP SGT Vacuum Excavator
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The LP SGT trailer vac is manufactured on a durable, low-profile assembly. This unit provides the power of a 1,000-cfm (1,699-m3/hr) vacuum blower with the cost of a 38-hp (28.3 kW) EFI gas engine. This high-performance unit stands alone on price and comparison in the trailer vacuum market.
Specifications
Model
LP SGT Vacuum Excavator
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
engine
Enclosure
Horsepower
38 hp (28.3 kW)
Make And Model
Kohler EFI Gas
Fuel Tank Capacity Or Type
30 gal (114 L)
operational
Reach
15 ft (4.6 m)
Width
92 in (234 cm)
Gauges
Digital
Height
95 in (241 cm)
Length
231 in (586.7 cm)
Vacuum
1000 cfm (28 cubic m/min)
Weight
400 lbs (181 kg)
Air Flow
185 cfm
Controls
Curbside
Movement
330 deg
Hose Length
30 ft (9 m)
Air Pressure
160 psi (11 bar)
Empty Weight
6300 lbs (2858 kg)
Air Hose Size
1 in (2.5 cm)
Compatibility
500-gal (1892.7-L) spoil tank option
Trailer Axles
Tandem
Remote Control
Wireless
Vacuum Mercury
14 inHg (0.4 bar)
Water Capacity
200 gal (757 L)
Air Hose Length
50 ft (15.2 m)
Number Of Tanks
2
Type Of Filters
0.5 micron filtration
Low Water Shutoff
Electric
High Pressure Pump
3000 psi (206.8 bar)
Vacuum Blower Type
PD blower
Hose Width/diameter
4 in (10.2 cm)
Spoil Tank Capacity
500 gal (1892.7 L)
High Pressure Hose Length
425 ft (130 m)
High Pressure Pump Flow Rate
4 gpm (15.1 L/min)
Gross Vehicle Weight Rating (GVWR)
9995 lbs (4533 kg)
features and options

Features
EnclosureYes

Options
Compatibility - 1200-gal (4542.5-L) spoil tank option
Compatibility - 500-gal (1892.7-L) heavy spoil tank option
Compatibility - 800-gal (3028.3-L) heavy spoil tank option
Compatibility - 800-gal (3028.3-L) spoil tank option
Door type - Hydraulic
Empty weight - 6300 lbs (2858 kg)
Empty weight - 7400 lbs (3357 kg)
Empty weight - 7600 lbs (3447 kg)
Empty weight - 9400 lbs (4264 kg)
Flowmaster - Optional - not available on 800-gal (3028.3-L) heavy and 1200-gal (4542.5-L) spoil tank options
Gross Vehicle Weight Rating (GVWR) - 14000 lbs (6350 kg)
Gross Vehicle Weight Rating (GVWR) - 20000 lbs (9071.9 kg)
Gross Vehicle Weight Rating (GVWR) - 24000 lbs (10886.2 kg)
Height - 122 (309.8 cm)
Height - 95 in (241 cm)
High Pressure Pump - 3000 psi (206.8 bar)
High pressure hose length - 50 ft (15 m)
High pressure pump flow rate - 4 gpm (15.1 L/min)
Hitch Type - Pintle
Hydraulic jack - Optional
Length - 231 in (586.7 cm)
Length - 265 in (673 cm)
Length - 268.8 in (682.8 cm)
Low Water Shutoff - Electric
Number of Tanks - 2
Recirculation kit - Optional
Reverse Pressure - Standard
Side hose and tooling storage (SHT package) - Optional - not available on 1200-gal (4542.5-L) spoil tank option
Spoil tank capacity - 1200 gal (4542.5 L)
Spoil tank capacity - 500 gal (1892.7 L)
Spoil tank capacity - 800 gal (3028.3 L)
Strong arm - Optional
Tank Lift Type - Hydraulic
Trailer axles - (2) 10000 (4536 kg)
Trailer axles - (2) 12000 lbs (5443.1 kg)
Trailer axles - (2) 7000 lbs (3175 kg)
Water capacity - 200 gal (757 L)
Water capacity - 300 gal (1136 L)
Water capacity - 400 gal (1514 L)
Width - 102 in (259 cm)
Width - 92 in (234 cm)
literature
Name Link
OEM Brochure Download
