Vermeer
ID # 37837981

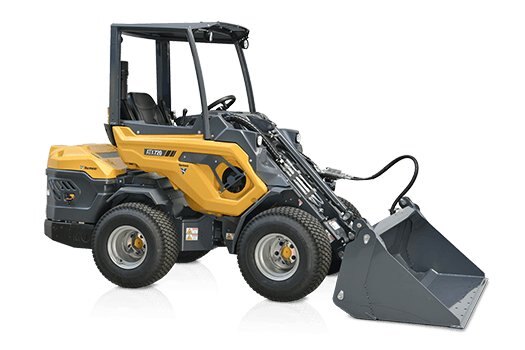

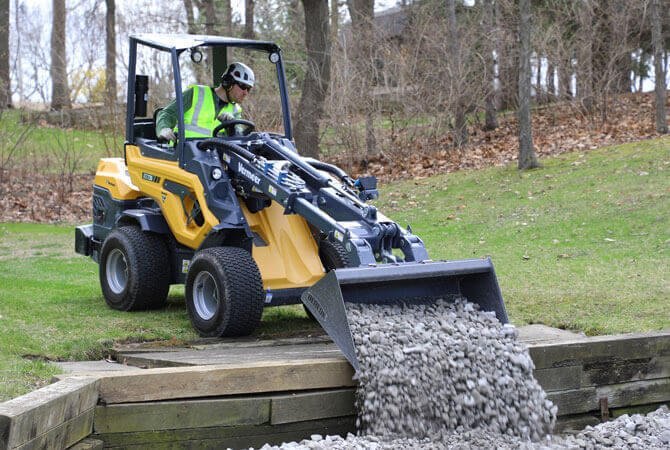

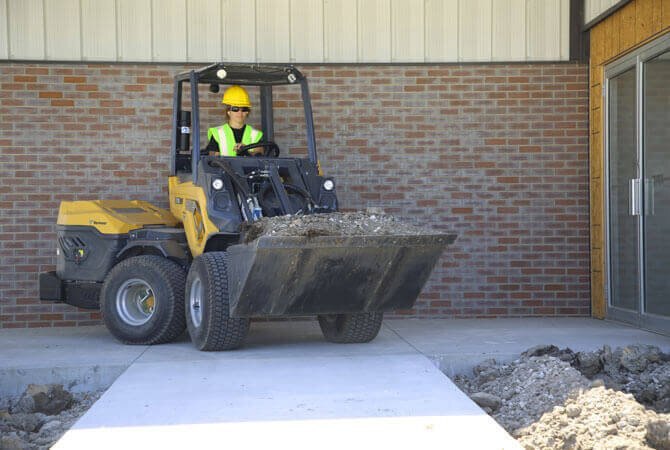

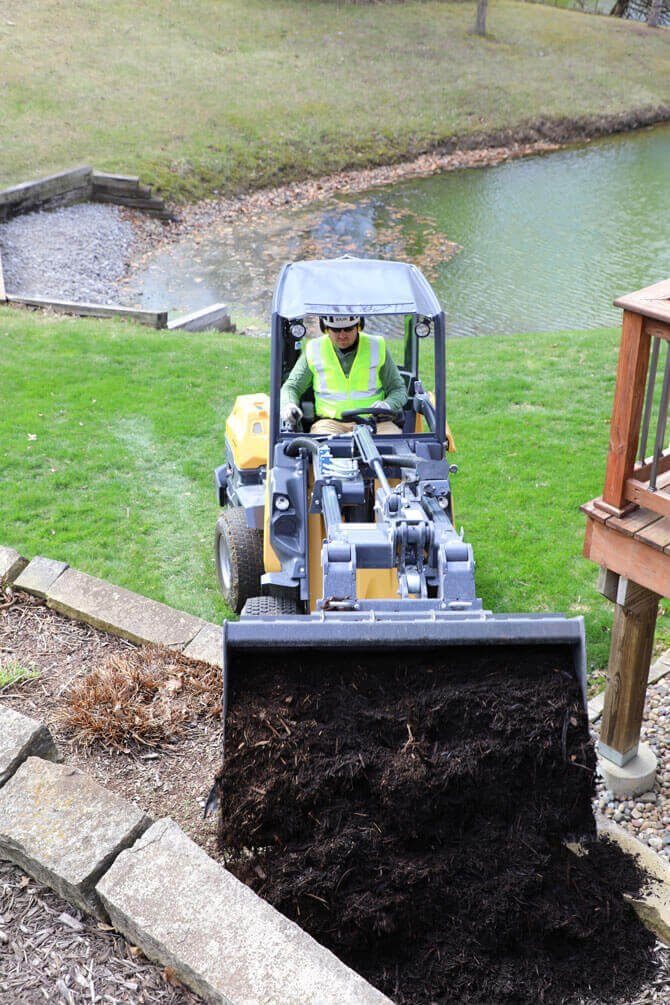

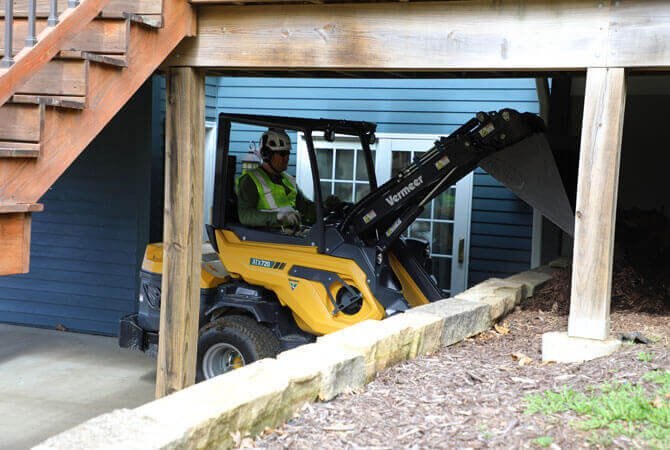

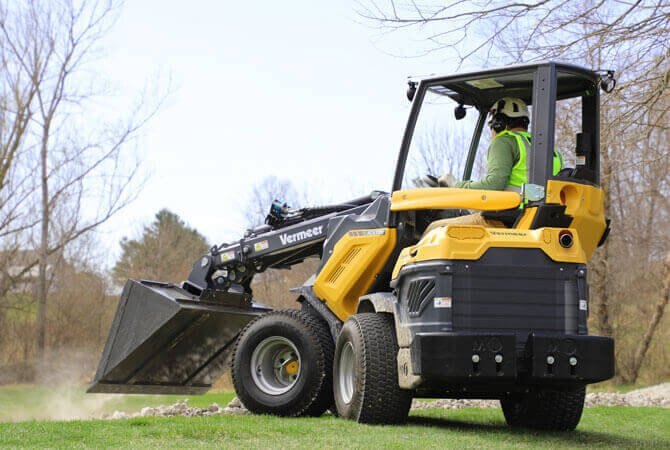

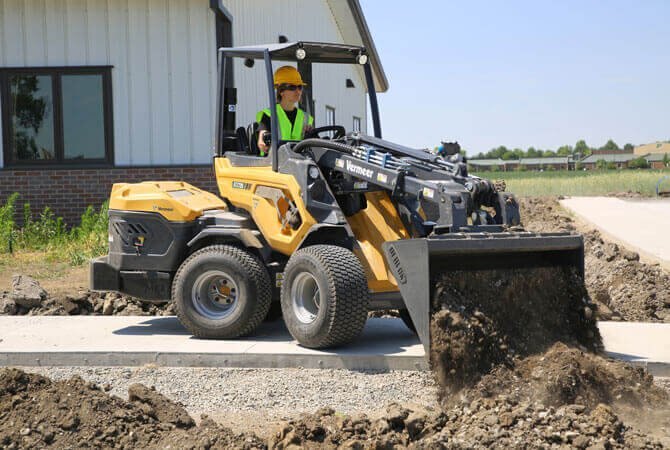

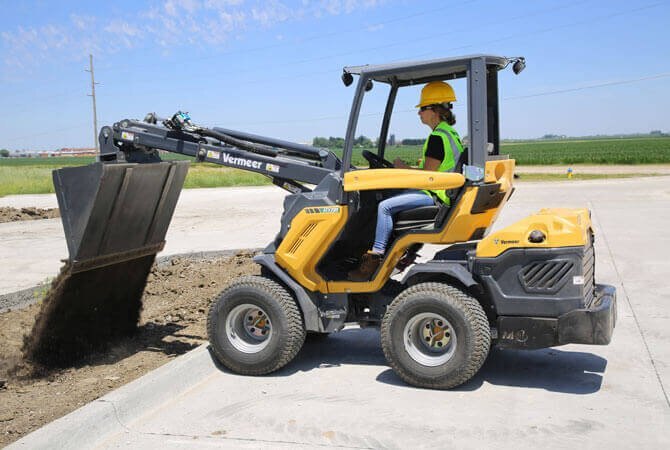

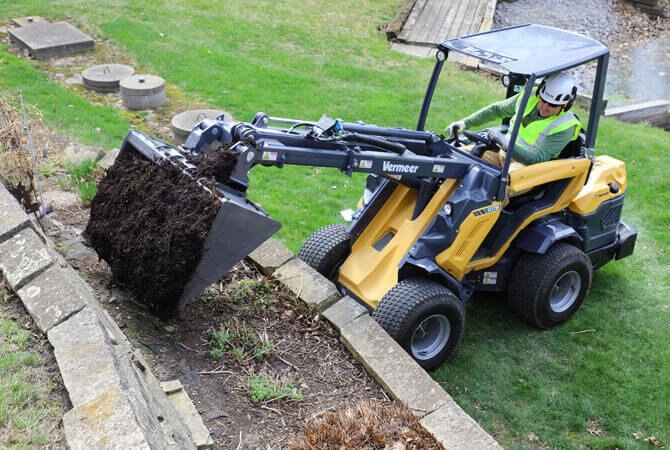

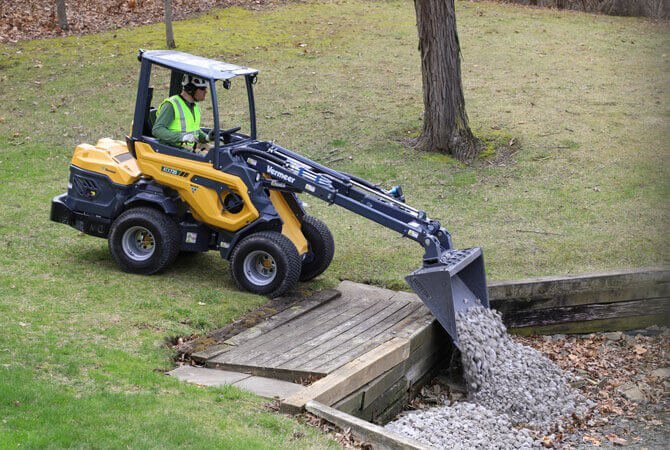

Vermeer ATX720 Compact Articulated Loader
Call for Price
Overview
Specifications
engine
operational
literature
Documents
| The Vermeer ATX720 compact articulated loader is designed with a combination of power, speed and agility. With a telescopic boom, heavy lifting capabilities and integrated backweights, this machine was built for a variety of jobs. |
Model
ATX720 Compact Articulated Loader
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Fuel Type
Diesel
Transmission
Hydrostatic
Cooling System
Liquid
Make And Model
Kubota D1305
Gross Horsepower
25 hp (18.6 kW)
Fuel Tank Capacity
9 gal (34.1 L)
Width
44.5 in (113 cm)
Height
79.5 in (201.9 cm)
Length
109.8 in (278.9 cm)
Travel Speed
5.6 mph (9 km/hr)
Standard Tires
23x10.50-12
Ground Pressure
156 lb/sq ft (70.8 kg/m²)
Ground Clearance
8.3 in (21.1 cm)
Hydraulic Oil Tank Capacity
11.1 gal (42 L)
Tipping Capacity (straight)
2694 lbs (1222 kg)
Auxiliary Hydraulics Oil Flow
9.8 gpm (37.1 L/min)
Tipping Capacity (articulated)
2072 lbs (939.8 kg)
Turning Radius: Inside/outside
32.5 in - 82.3 in (82.6 cm - 209 cm)
Pivot Point Height (extended Boom)
114 in (289.6 cm)
Rated Operating Capacity (straight)
2155 lbs (977.5 kg)
Angle Of Departure With Rear Weights
19 deg
Rated Operating Capacity (articulated)
1658 lbs (752.1 kg)
Weight With Rear Weights And No Attachments
3911 lbs (1774 kg)
Outreach With Horizontal Boom (extended Boom)
46.6 in (118.4 cm)
Literature
| Name | Link |
| OEM Brochure | Download |
Documents
63e5b2911224af1bb216b722.pdf Model
ATX720 Compact Articulated Loader
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Quantity
1
