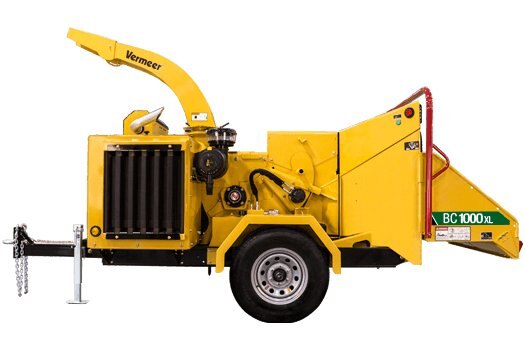

Vermeer BC1000XL Tier 4 Final Brush Chipper

  • Vermeer BC1000XL Tier 4 Final Brush Chipper
  • Vermeer BC1000XL Tier 4 Final Brush Chipper
  • Vermeer BC1000XL Tier 4 Final Brush Chipper
  • Vermeer BC1000XL Tier 4 Final Brush Chipper
  • Vermeer BC1000XL Tier 4 Final Brush Chipper
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Enhanced with the modern day operator in mind, the BC1000XL is available with either a Tier 4 Final 49-hp or 74-hp (36.4-kW or 55-kW) engine that meets all the latest emission regulations. When transporting the machine, expect smooth towing thanks to the rubber-torsion suspension.
Specifications
Model
BC1000XL Tier 4 Final Brush Chipper
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
dimensions
Width
66.5 in (168.9 cm)
Height
101 in (256.5 cm)
Weight - Engine Option One
4995 lbs (2265.7 kg)
Weight - Engine Option Two
4995 lbs (2265.7 kg)
Length - Feed Table Up, Tongue In
150 in (381 cm)
Tongue Weight - Engine Option One
600 lbs (272.2 kg)
Tongue Weight - Engine Option Two
600 lbs (272.2 kg)
Length - Table Down, Tongue Extended
198 in (502.9 cm)
operational
Diameter
1.5 in (3.8 cm)
Thickness
26.1 in (66.3 cm)
Reset Method
Green Hold to Run Button
Actuation Force
34 lbs (15.4 kg)
Weight With Shaft
1160 lbs (526.2 kg)
Material Thickness
11 in (27.9 cm)
Infeed Table Length
60.5 in (153.7 cm)
Infeed Hopper Height
35 in (88.9 cm)
Weight Of Feed Roller
350 lbs (158.8 kg)
Actuation Force (BFSB)
34 lbs (15.4 kg)
Bottom Feed Stop Bar Diameter
2 in (5.1 cm)
Feed Roller Minimum Distance To Drum
5 in (12.7 cm)
features & options

Features
Bottom Feed Stop Bar
Directional ControlYes
Four Position Feed Control Bar
Green Hold to Run Button
Replaceable Threaded Knife BlockYes
Rotational LockYes
Shutdown SystemYes
Options
Air Cleaner - 2-stage dry with safety element
Alternator - 95 Amp
Belt Idler/Tensioner - Yes
Belt Type - 5V
Bore - 2.4 in (6.1 cm)
Clutch Drive Engagement - Belt tensioner
Clutch Type - Clutchless PTO
Coolant Capacity (Engine and Radiator) - 13.3 gal (50.3 L)
Coolant Capacity (Engine and Radiator) - 2.9 gal (11 L)
Cooling Medium - Liquid
Dynamic Capacity - 31400 lbs (14242.8 kg)
Extended Warranty - Optional
Fan - 15" (38.1 cm) suction
Fan - 18.625" (47.3 cm) suction
Fuel Tank Capacity - 25 gal (94.6 L)
Fuel Type - Diesel
Gross Horsepower (Maximum) - 49 hp (36.5 kw)
Gross Horsepower (Maximum) - 74 hp (55.2 kw)
Make and Model - Deutz D2.9L Tier 4 Final
Make and Model - Deutz TD2.9L Tier 4 Final
Manufacturer - Linkbelt
Max Fuel Consumption - 3 gph (11.4 lph)
Max Fuel Consumption - 4.6 gph (17.4 lph)
Maximum Angle of Continuous Operation - 30 deg
Number of Bearings - 2
Number of Cylinders - 4
Oil Filter - Spin-on
Oil Volume with Filter - 8.4 qt (7.9 L)
Preventive Maintenance - Optional
Recommended Oil - 10W30
Special Paint - Optional
Static Capacity - 53500 lbs (24267.2 kg)
Torque (Max) - 108 ft-lb (146.4 Nm)
Torque (Max) - 181 ft-lb (245.4 Nm)
Type - Spherical rollers
