ID # 37837971

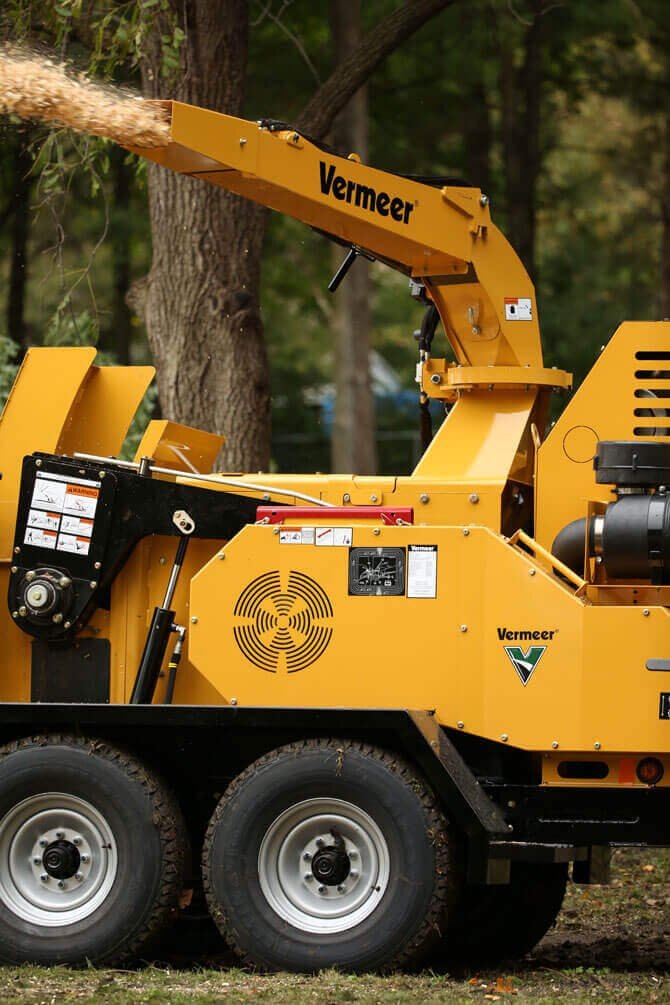

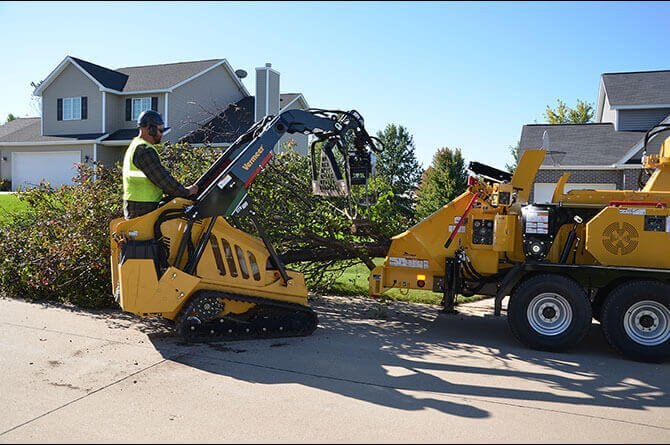

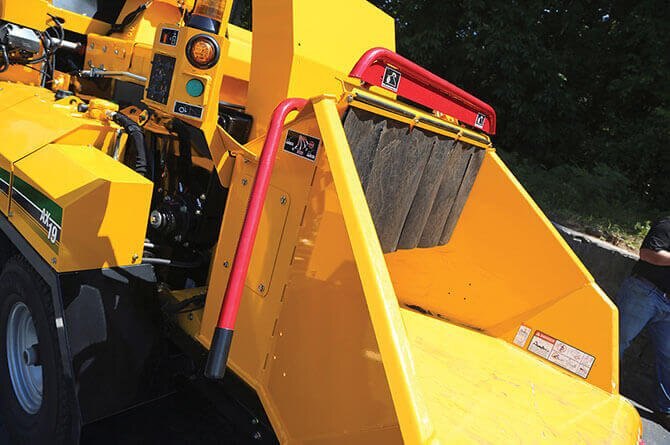

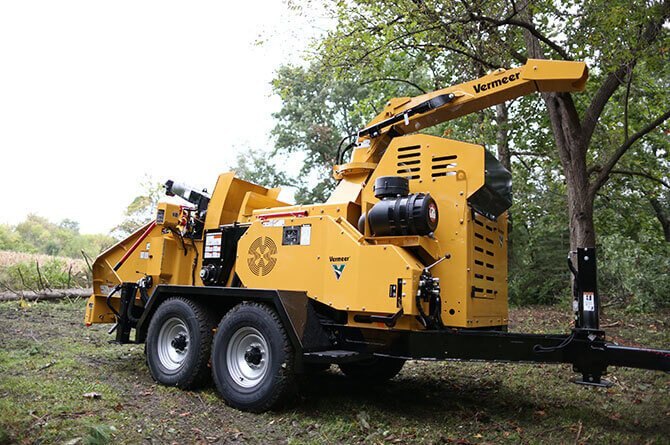

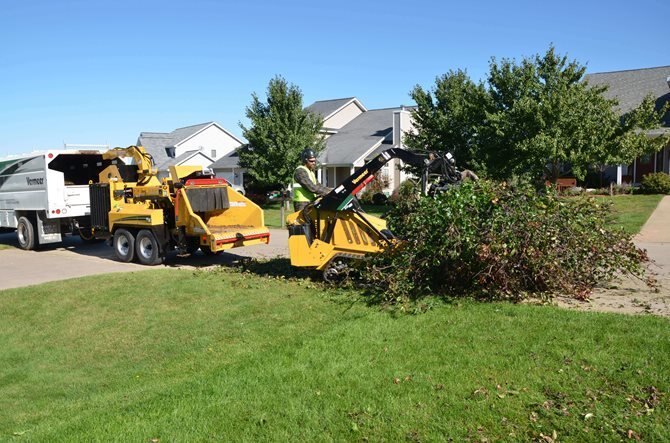

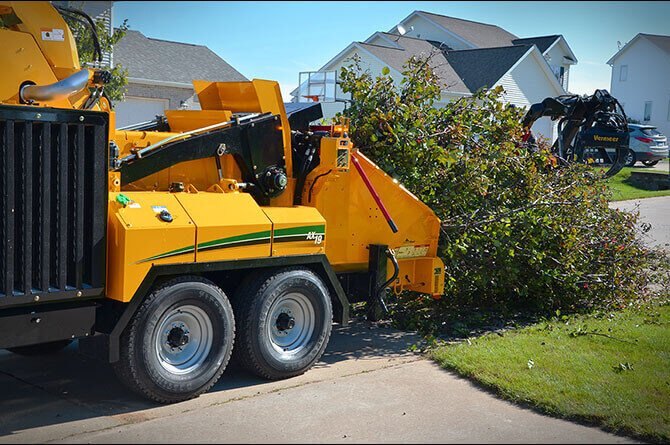

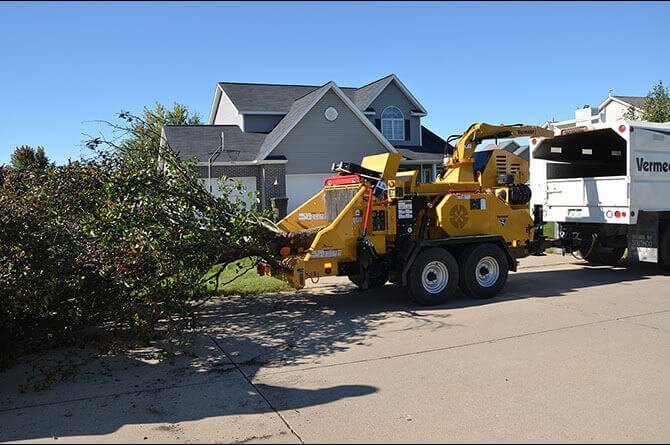

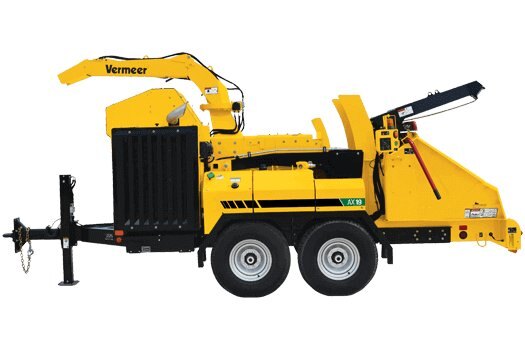

Vermeer AX19 Brush Chipper

  • Vermeer AX19 Brush Chipper
  • Vermeer AX19 Brush Chipper
  • Vermeer AX19 Brush Chipper
  • Vermeer AX19 Brush Chipper
  • Vermeer AX19 Brush Chipper
  • Vermeer AX19 Brush Chipper
  • Vermeer AX19 Brush Chipper
  • Vermeer AX19 Brush Chipper
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Equipped with mechanical feeding capabilities and a 173-hp (123-kW) John Deere diesel engine, this unit will efficiently work in large land-clearing operations or on a rural jobsite. The AX19 features up to 12,000 lb (5443.1kg) of pull-in force with the support of the patented SmartCrush control system, allowing you to feed large-diameter logs or branchy limbs with minimal effort. With no two jobs alike, the AX19 is built to finish the challenge.
Specifications
Model
AX19 Brush Chipper
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
dimensions
Width
79 in (200.7 cm)
Height
108 in (274.3 cm)
Weight With Outriggers (additional)
170 lbs (77.1 kg)
Weight (without Winch And Hydraulic Jack)
11000 lbs (4989.5 kg)
Weight (with Winch, Hydraulic Jack And Hydraulic Chute)
11400 lbs (5171 kg)
operational
Diameter
1.5 in (3.8 cm)
Thickness
26.1 in (66.3 cm)
Reset Method
Green Hold to Run Button
Actuation Force
34 lbs (15.4 kg)
Weight With Shaft
1160 lbs (526.2 kg)
Material Thickness
11 in (27.9 cm)
Infeed Table Length
60.5 in (153.7 cm)
Infeed Hopper Height
35 in (88.9 cm)
Weight Of Feed Roller
350 lbs (158.8 kg)
Actuation Force (BFSB)
34 lbs (15.4 kg)
Bottom Feed Stop Bar Diameter
2 in (5.1 cm)
Feed Roller Minimum Distance To Drum
5 in (12.7 cm)
features & options
Features
Bottom Feed Stop Bar
Directional ControlYes
Four Position Feed Control Bar
Green Hold to Run Button
Toolbox Description
Options
Adjustable Height Discharge Chute - Optional
Air Cleaner - 2 Stage Dry
Alternator - 90
Belt Idler/Tensioner - Spring loaded
Belt Type - 5V
Bore - 2.5 in (6.4 cm)
Clutch Drive Engagement - Manual Lever
Clutch Type - 12" Spring Loaded
Coolant Capacity (Engine and Radiator) - 32 gal (121.1 L)
Cooling Medium - Liquid
Dynamic Capacity - 31400 lbs (14242.8 kg)
Extended Warranty - Optional
Fan - 26" Suction
Fuel Tank Capacity - 40 gal (151.4 L)
Fuel Type - Diesel
Gross Horsepower (Maximum) - 173 hp (129 kw)
Hydraulic Chute Controls - Standard
Hydraulic Outriggers - Optional (Manual only)
Make and Model - John Deere 4045HFC09
Manufacturer - Linkbelt
Max Fuel Consumption - 6.8 gph (25.7 lph)
Maximum Angle of Continuous Operation - 30 deg
Number of Bearings - 2
Number of Cylinders - 4
Oil Filter - Spin-on
Oil Volume with Filter - 15.5 qt (14.7 L)
Preventive Maintenance - Optional
Recommended Oil - ACEA E-7 & E-6 or API CI-4
Remote Control - (Basic or optional Deluxe)
Rope Length - 150 ft (45.7 m)
Rope Line Pull - 3250 lbs (1474.2 kg)
Special Paint - Optional
Static Capacity - 53500 lbs (24267.2 kg)
Torque (Max) - 492 ft-lb (667.1 Nm)
Type - Spherical Roller
Winch Boom Structure - 0.25 GR50 detachable
Winch Controls - Forward, Reverse, Free Spool
Winch Input Speed - 87 rpm
Winch Relief System - 2300 psi (158.6 bar)
Winch Rope - 9/16"
