Vermeer
ID # 37837945

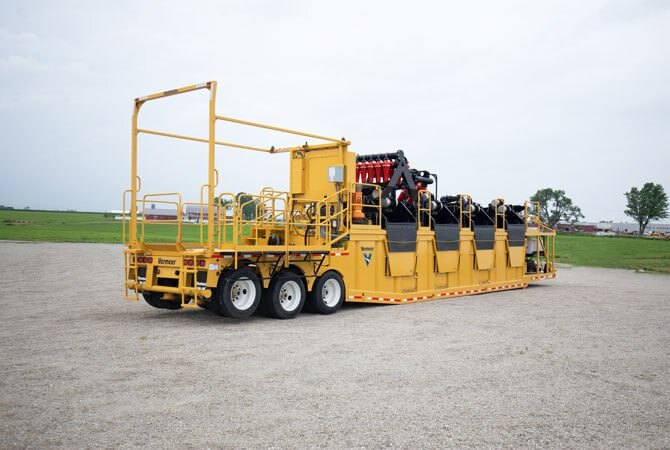

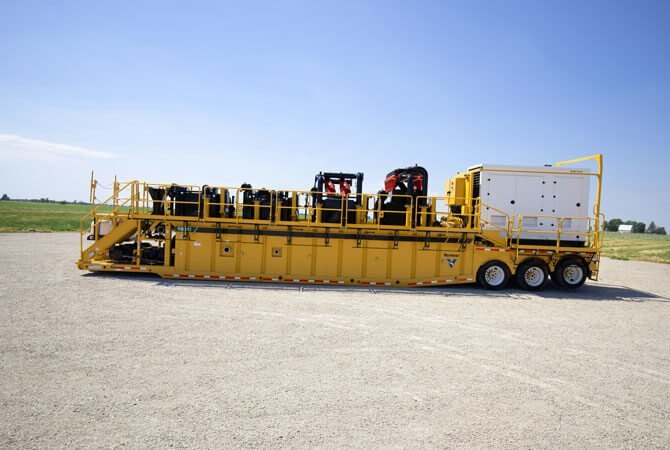

Vermeer R600T Reclaimer
Call for Price
Overview
Specifications
dimensions
operational
features & options
literature
Documents
| The successor to the popular R9x12T reclaimer, the new R600T reclaimer is designed for large-scale pipeline projects with high-volume needs. Equipped with a 600-gpm (2,271.2-L/min) cleaning system that can process over 1,100 gpm (4,163.9 L/min) and a three-tank unit with a total capacity of 7,729 gallons (29,257.4 L), it's the solution to helping reduce the amount of drilling fluid additives and fresh water required to complete installations. |
Model
R600T Reclaimer
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Width
8.4 ft (2.6 m)
Height
13.5 ft (4.1 m)
Length
54.2 ft (16.5 m)
Weight
53940 lbs (24466.8 kg)
Desander Tank
1934 gal (7321 L)
Number Of Tanks
3
Maximum Capacity
7729 gal (29257.4 L)
Scalped Tank Capacity
3016 gal (11416.8 L)
Clean/Mix Tank Capacity
2779 gal (10519.7 L)
Gross Vehicle Weight Rating (GVWR)
65500 lbs (29710.3 kg)
Shaker Type
Linear
Screen Dimension
24 in x 43.9 in (63.5 cm x 125.2 cm)
Desilter Capacity
520 gpm (1968.4 L/min)
Number Of Shakers
3
Desilter Quantity/Size
(16) 5-in (12.7-cm) cones
Shaker Bed Area - Each
25.8 sq-ft (2.4 sq-m)
Number Of Screens Per Shaker
Four screens lower deck, three screens upper deck
Cleaning Capacity (First Cut)
600 gpm (2271.2 L/min)
Literature
| Name | Link |
| OEM Brochure | Download |
Documents
63e5b236401c1f6bbe60a595.pdf Model
