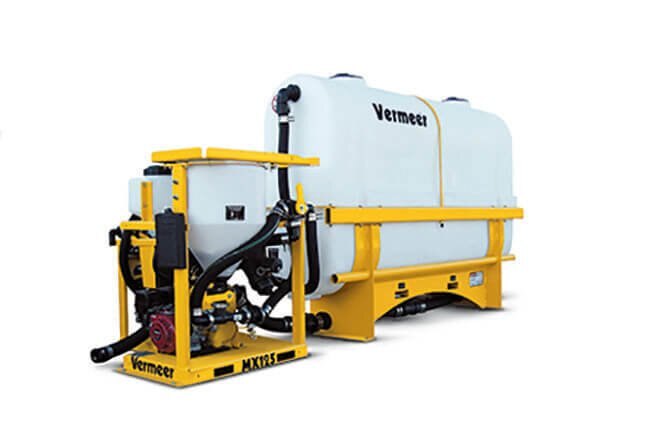

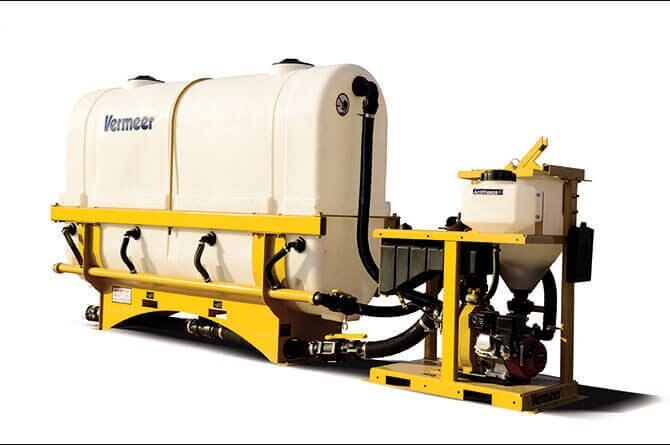

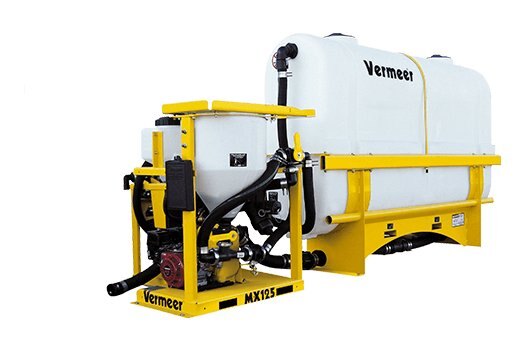

Vermeer MX125 Mixing System

  • Vermeer MX125 Mixing System
  • Vermeer MX125 Mixing System
  • Vermeer MX125 Mixing System
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Designed for small-diameter, short-distance horizontal directional drilling jobs, the MX125 is powered by a 5.5-hp (4.1-kW) Honda gas engine or a 6.7-hp (5-kW) Hatz diesel engine. It comes with your choice of a 250-gal, 300-gal or 500-gal (946-L, 1,135.6-L or 1,892.7-L) tank.
Specifications
Model
MX125 Mixing System
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
engine
Fuel Capacity
5 gal (18.9 L)
Gross Horsepower
6.7 hp (5 kw)
operational
Width
30 in (76.2 cm)
Length
36 in (91.4 cm)
Weight
340 lbs (154.2 kg)
Pump Type
Monarch 3" (7.62 cm) grease seal pump
Fuel Capacity
5 gal (18.9 L)
Mixing Action
Venturi / Recirculation
Anti-Freeze Capacity
5 hp (3.7 kw)
Gas Engine Option Horsepower
5.5 hp (4.1 kw)
Diesel Engine Option Horsepower
6.7 hp (5 kw)
features & options

Features
Integrated Mixing HopperYes
Straining System (Makeup Water)Yes
Straining System (Outlet)Yes
Options
Height - 52 in (132.1 cm)
Height - 61 in (154.9 cm)
Height - 69.5 in (176.5 cm)
Length - 106 in (269.2 cm)
Length - 64 in (162.6 cm)
Length - 74 in (188 cm)
Mixing Jets - 2 in-line eductor nozzles
Mixing Jets - 3 in-line eductor nozzles
Mixing Jets - 4 in-line eductor nozzles
Weight - 380 lbs (172.4 kg)
Weight - 600 lbs (272.2 kg)
Weight - 687 lbs (311.6 kg)
Width - 28 in (71.1 cm)
Width - 28.5 in (72.4 cm)
Width - 38 in (96.5 cm)
literature
Name Link
OEM Brochure Download
