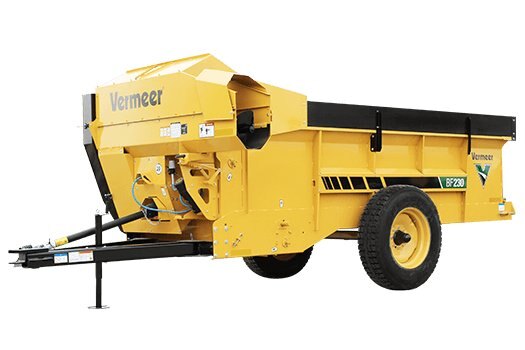

Vermeer BF230 FEED WAGON

  • Vermeer BF230 FEED WAGON
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The BF230 feed wagon from Vermeer features a low loading height at just 70-in (180-cm), making it ideal for operations of multiple sizes. These machines were created to allow operators to be able to feed a complete ration without having a vertical mixer.



Specifications
Model
BF230 FEED WAGON
Category Name
Agriculture
Sale Type
New
Manufacturer
Vermeer
dimensions
Tires
295/75R-22.5
Total Height
84 in (213.4 cm)
Working Width
108 in (274.3 cm)
Loading Height
70 in (177.8 cm)
Machine Weight
3104 lbs (1408 kg)
Transport Width
98 in (248.9 cm)
drivetrain
PTO Speed
540 rpm
Hydraulic Drive
Optional hydraulic orbit motor
Mechanical Drive
Standard
operational
Capacity
230 cu ft (6.5 cu m)
Auger Length
80.5 in (204.5 cm)
Scale Display
Digi-Star EZ2500V
Floor Material
Steel
Hydraulic Type
Optional, 1 double-acting
Hydraulic Flow
Optional, 10 gpm (38 L/min)
Conveyor Length
82 in (208.3 cm)
Discharge Style
Conveyor or auger
Inside Box Length
162 in (411.5 cm)
Hydraulic Pressure
Optional, 1800 psi (124 bar)
Discharge Direction
Left
Jack Stand Weigh Bar
Optional
Number Of Weigh Bars
3
Recommended PTO Horsepower
60 hp (44.7 kw)
Inside Box Width - Above Flare
60 in (152.4 cm)
Inside Box Width - Below Flare
54 in (137.2 cm)
