Tubeline

ID # 37837419

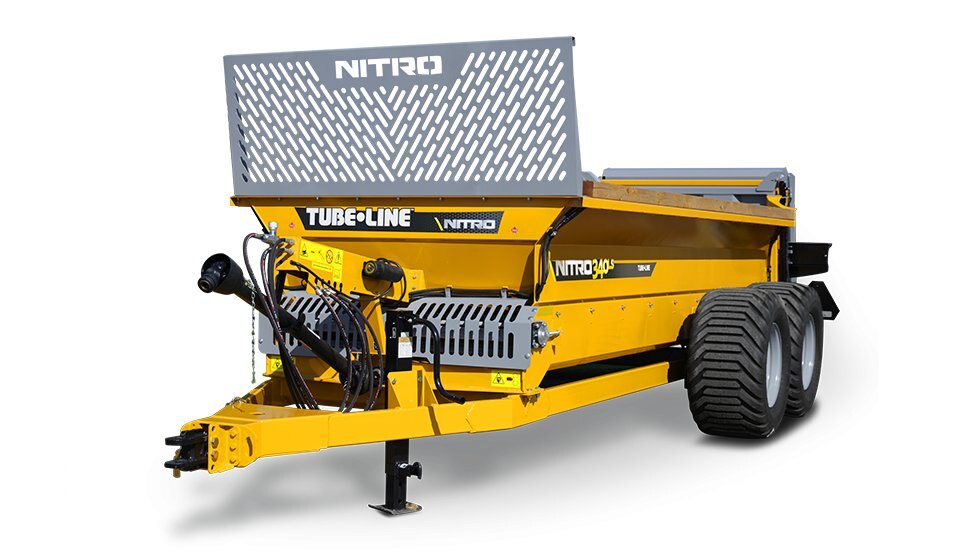

Tubeline Nitro 340LS

Call for Price
Overview

The Nitro LS series spreaders are ideal for farms with small herds. With compact box sizes and lower loading heights, you’ll be amazed at the efficiency of our LS spreaders. Available in 3 models, the Nitro LS features a guillotine-style endgate, a reversible live apron floor, and our quick drop vertical beaters.

Specifications
Model
Nitro 340LS
Category Name
Agriculture
Sale Type
New
Manufacturer
Tubeline
Heaped
344 cu. ft. (9.74 cu. m.)
PTO Speed
540 RPM
Beater Speed
540 RPM
Struck Level
187 cu. ft. (5.3 cu. m.)
Overall Length
24.5' (297")
Beater Diameter
32"
Shipping Weight
7,128 lbs.
Horse Power Req.
60 HP
Capacity (Heaped)
344 cu. ft.
Capacity (Struck)
187 cu. ft.
Carrying Capacity
8 Ton (7,257 kg)
Tandem Tire Sizes
16.5-16.1 Implement 425/22.5 Truck 550/45-22.5 Flotation 11R-22.5 New or Used Truck
Apron Chain Link Dia.
5/8"
Required Tractor PTO HP
60
Loading Height (Single Axle)
62.75"
Wheel Hub Capacity (Single Axle)
8,000 lbs (8 bolt) x4
Overall Outside Width (Single Axle)
107"
Inside Dimensions (Inside Width Between Flare 80.75")
62"W x 27"D x 174"L
features

https://tubeline.ca/img/products/spreaders/features/warranty.png Apron Chain Limited Lifetime Warranty

Under the Apron Chain Limited Lifetime Warranty, Tubeline will replace a broken apron chain or connecting link on any Nitro model manure spreader. Restrictions may apply. For more information, please contact the Tubeline office.

https://tubeline.ca/img/products/spreaders/features/endgate.png Guillotine Endgate

The guillotine endgate can be opened partially to meter the amount of material being delivered to the beater assembly. This ensures the optimal delivery of lime and various manure consistencies to the field.

Other Standard Features

  • Hydraulic-Driven Apron Chain
  • Apron Chain
  • Galvanized Slats
  • Quick Drop Beaters
  • Replaceable Reversible Knives
  • Robust and Dynamically Balanced
  • Driveline Protection
  • Industrial Jack
  • High Load Bearings
options

Tubeline Nitro 340LS Paddle Kit

The optional bolt on paddle kit cups material to provide better throw.

Tubeline Nitro 340LS LED Lights

LED lights and flashers ensure transit safety. Innovative light covers mechanically open and close in sequence with the end gate, ensuring lights are protected while spreading.

Tubeline Nitro 340LS Optional Colours

In addition to the standard yellow, the Nitro lineup is available in red, green, blue and orange.

Tubeline Nitro 340LS Enhanced Rubber Seal Kit

The Enhanced Rubber Seal Kit adds a U-shape compression seal to the front panel and the endgate to help contain semi solid materials.

Tubeline Nitro 340LS Oscillating Ball Hitch

Optional on all models is the oscillating ball hitch available in various pin sizes.

Tubeline Nitro 340LS Gate Indicator

With the gate indicator, you can quickly and easily see how open the endgate is from the seat of your tractor.
