ID # 61417114

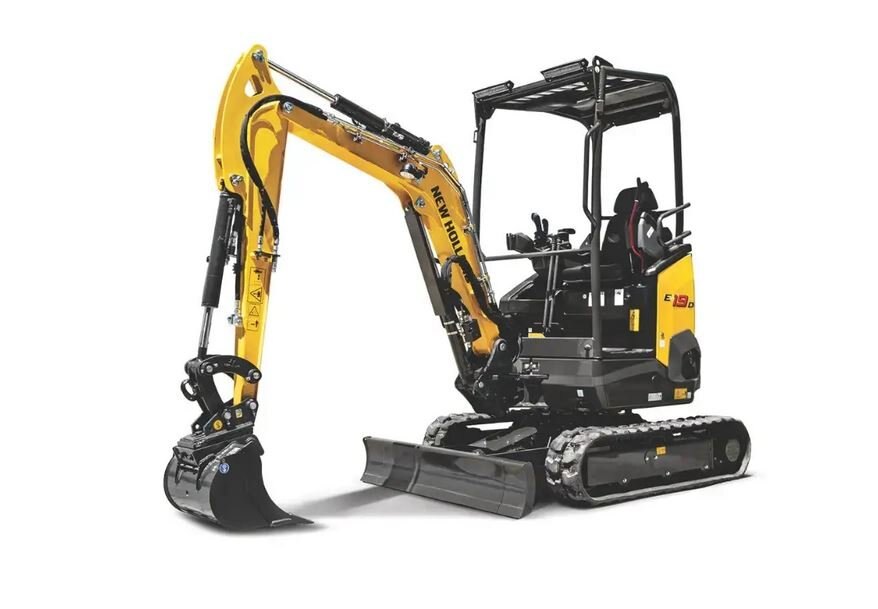

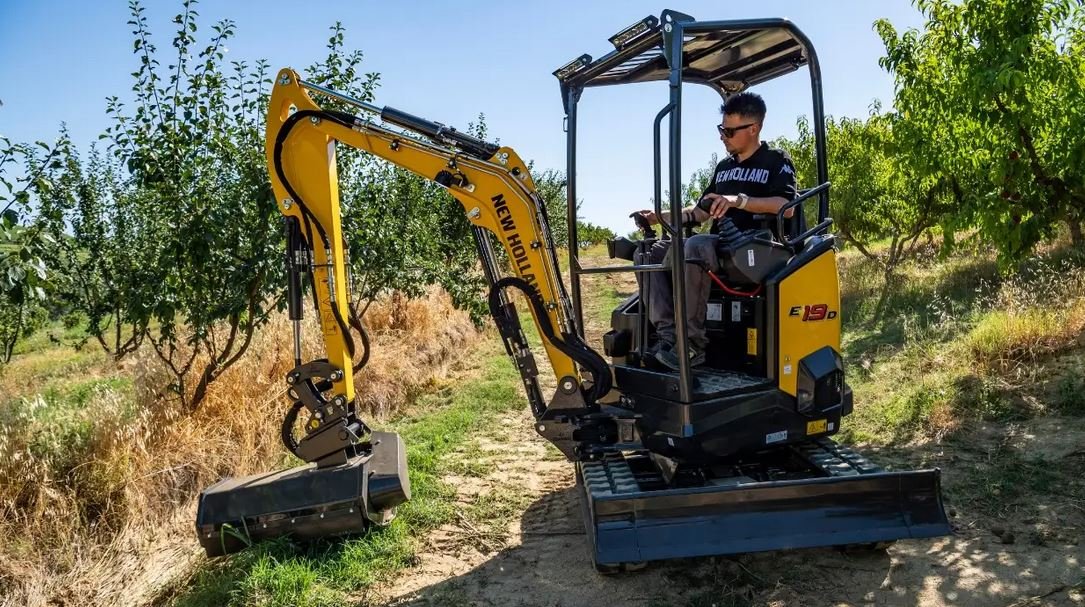

New Holland E19D Mini Excavators

  • New Holland E19D Mini Excavators
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

New Holland E19D Mini Excavators THE RIGHT TOOL FOR THE JOB

New Holland mini excavators have a capacity range from 1.7 to 6.0 tons (1542 to 5443 kg). With canopy, cab, and zero tail swing versions to choose from, there is a model suited for any job. Leverage a New Holland mini excavator for landscaping, amenity work, agriculture, horticulture, nurseries, vineyards, estate management, and general contracting. Other applications include irrigation and drainage construction, fence work, temporary building construction, and crop support.

Designed to work long days, each model has class-leading excavation performance with the flexibility to power a wide range of attachments, including hydraulically powered attachments like soil augers, hammers and compactors. New Holland mini excavators display powerful versatility with the strength of a larger machine.

All models have three separate pumps to deliver enhanced performance, perfect for traveling between job sites, using the dozer blade, or working with the excavator. Need more? For the most demanding auxiliary attachments, a fourth pump option is available on the largest E57C and E60C models.

E19D

D Series mini excavators from New Holland Construction are built in-house and are designed for an improved operator experience, performance and jobsite efficiency. The E12D is a more capable, versatile machine tailored for construction crews, landscapers, utility contractors and municipalities looking to do more with a compact framework.
Specifications
Model
E19D
Category Name
Equipment
Sale Type
New
Manufacturer
New Holland
Gross HP
18.4 hp (13.7 kW)
Operating Weight- Cab/Canopy
4145 lb (1880 kg)
Max Dump Height- Std/Long Arm
8 ft 6 in (2580 mm) / 8 ft 10 in (2700 mm)
Max Digging Depth - Std/Long Arm
7 ft 6 in (2280) / 8 ft 2 in (2480 mm)
features

New Holland E19D Mini Excavators MINI EXCAVATOR, BIG POWER

The E19D is powered by a 18.4 hp (13.7 kW) Stage V-certified Yanmar 3TNV76 engine, known for durability and low emissions. This power is housed in a compact and easily transportable package, measuring 7 ft 9 in (2370 mm) in height and 12 ft 8 in (3860 mm) in overall transport length.

ARMED TO DIG

Specify your D Series compact excavator with the arm length to best suit your requirements. Length on the E19D standard digging arm measures up to 3 ft 9 in (1.15 m) Arm and 4 ft 5 in (1.35 m) with the long arm.

The standard arm yields 7 ft 6 in (2280) of maximum digging depth and gets a maximum 8 ft 2 in (2480 mm) below surface with the long arm. With all this muscle, plus 2136 lbf (9.5 kN) of standard arm digging force, the E19D will quickly become your partner in productivity.

DESIGNED TO DUMP

The standard arm on the E19D provides a maximum 8 ft 6 in (2580 mm) of dump height and 3372 lbf (15 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 8 ft 10 in (2700 mm) in maximum dump height.

SIMPLE SERVICEABILITY

For contractors and operators, serviceability is a key component to weigh when considering mini excavators. The E19D includes a tipping cab/canopy for full engine access, as well as three large side and rear panels that offer fast access to key service points. Just two bolts need to be removed to tip the cab.

ATTACHMENTS FOR DEDICATED EFFICIENCY

Powering demanding attachments is a key New Holland advantage.With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking.The E19D arrives ready to run a wide array of attachments like hydraulic hammers, compaction plates, grapples and mulchers. Models are available with factory-installed couplers, buckets and thumbs.

DESIGNED FOR AND AROUND YOU

The E19D is available with a ROPS/FOPS canopy or a fully enclosed cab. Both configurations are packed with comfort and safety features. In the cab, operators will find a fabric mechanical seat, height-adjustable armrests, manual or automatic climate control; plus, six directional vents and intuitive joystick-mounted controls that move with the seat for smoother, more precise operation over uneven terrain.

Additional cab features include a sliding right-side window, overhead-opening front window, radio and speakers, rearview mirrors, front wiper/washer, USB and 12V charging ports and bottle holder. See real-time feedback on coolant and hydraulic oil temperatures, fuel levels, engine RPM and machine hours. Safety-focused details include a control cut-out lever, manual/auto idle settings, RPM hand dial, a 2-inch seat belt, emergency exit hammer and keyed locks common to the ignition.
description
Operating Weight Lb
4145
Number Of Arm Options
2
Standard Arm Length Ft/in
3 ft 9 in
driveline
Engine Model
3TNV7‌‌‌‬‍‬‌‌‌‌‌‬‬‍‬‬‌‍‬‌‌‍‌‌‌‌6
Rated Speed Rpm
2300
Displacement In³
68
Track Shoe Width In
9
dimensions
Zero Tailswing
Dozer Blade Type
Straigh‌‌‌‬‍‬‌‌‌‌‌‬‬‍‌‬‌‍‬‌‌‍‌‌‌‌t
Ground Clearance In
18
Tailswing Radius Ft/in
2 ft 2 in
Undercarriage Width Ft/in
3 ft 3 in
Max Transport Height Ft/in
7 ft 9 in
Dig Depth - Mono Boom Ft/in
7 ft 6 in
Track Length On Ground Ft/in
3 ft 11 in
Dump Height - Mono Boom Ft/in
8 ft 6 in
Vertical Wall - Mono Boom Ft/in
5 ft 10 in
Transport Length Mono Boom Ft/in
12 ft 8 in
Ground Level Reach - Mono Boom Ft/in
12 ft 10 in
capacities
Fuel Tank Gallon (US)
7
Hydraulic Tank Gallon (US)
5
performance
Arm Tearout Lbf
2136
Bucket Breakout Lbf
3372
Number Of Main Pumps
2
Travel Speed - Low Mph
1.4
End Lift - Max Reach Lb
397
Travel Speed - High Mph
2.7
Main Pump - Flow Gallon (US)/min
27
literature
Name Link
E19D Mini Excavator - Specifications Download
