ID # 61417109

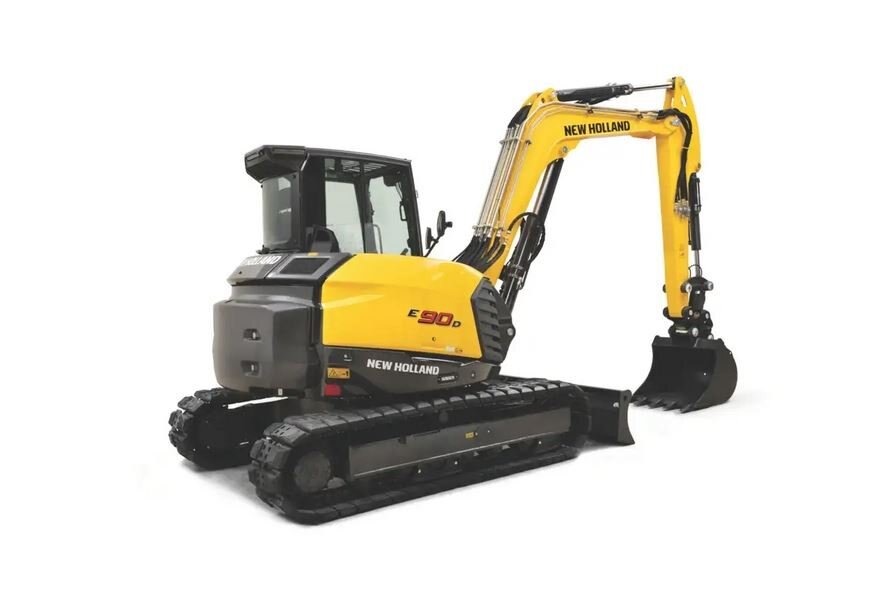

New Holland E90D Midi Excavators

  • New Holland E90D Midi Excavators
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

New Holland E90D Midi Excavators AN EXCAVATOR LINE WITH MORE POWER AND CAPACITY

New Holland Construction enters the midi excavator market with its first model. The midi excavator category combines powerful performance and versatility in a compact design. These machines come with a wide set of features as standard equipment and have mechanical, technological and productivity-related optional equipment. Several segments can benefit from having this new size of excavator such as landscaping, amenity work, agriculture, horticulture, nurseries, vineyards, estate management, water and sewer, municipal projects, and general contracting. Choose this size of midi excavator for a variety of projects from urban settings to outdoor field projects.

E90D

Operators are going to find a machine uniquely built for them and their needs with the powerful performance within E90D's compact frame. This excavator is meticulously crafted to excel in confined spaces where larger machines fall short. Ideal for small-to-medium-sized construction companies, landscapers, municipalities, and farmers, the E90D can handle a variety of tasks with ease — from digging and grading to material handling.
Specifications
Model
E90D
Category Name
Equipment
Sale Type
New
Manufacturer
New Holland
Max Power (2300 Rpm)
73 HP (537 kW)
Max Dump Height- Std/Long Arm
183.5 in (4660 mm) / 191.8 in (4870 mm)
Operating Weight - Cab/Canopy
20,305 lbs (9210 kg)
Max Digging Depth - Std/Long Arm
183.5 in (4660 mm) / 191.8 in (4870 mm)
features

New Holland E90D Midi Excavators GREAT SET OF SPECIFICATIONS

Impressive specifications and versatile design are intrinsic to the E90D making it a standout model. Weighing in at 20,305 lbs (9210 kg), it strikes the perfect balance between strength and agility. It delivers a dig depth of up to 181.9 inches (4620 mm) and a dump height of 191.8 inches (4870 mm) and is engineered for peak performance in a variety of conditions. Sporting a distinctive monoboom design that ensures superior maneuverability, the machine allows operators to navigate tight spaces and challenging jobsites with ease.

New Holland E90D Midi Excavators ATTACHMENTS AND OPTIONS

Various attachments are available to suit the E90D for different tasks, including buckets, augers, breakers, grapples and mulchers. Heavy or light counterweights can be added to the machine to enhance lift performance and stability. Operators can also adjust joystick sensitivity and hydraulic response to match their personal preferences, ensuring a smooth and efficient operation every time.

New Holland E90D Midi Excavators REMOTE TRACKING AND DIAGNOSTICS

Incorporating the latest technology, the E90D models come standard with telematics and a five-year advanced subscription to provide real-time tracking, diagnostics, and performance monitoring. This connectivity enables owners and operators to stay informed about the machine's status, schedule maintenance and address any issues promptly. The machine also features adjustable controls and an auto-lubrication system, simplifying maintenance and reducing the need for manual intervention.
description
Operating Weight Lb
20305
Number Of Arm Options
2
Standard Arm Length Ft/in
5 ft 9 in
driveline
Engine Model
4TNV98C‌‌‌‬‍‬‌‌‌‌‌‬‍‬‌‍‬‌‌‍‌‌‌‌T
Rated Speed Rpm
2300
Displacement In³
203
Track Shoe Width In
17.7
dimensions
Zero Tailswing
Dozer Blade Type
Straigh‌‌‌‬‍‬‌‌‌‌‌‬‍‌‬‌‍‬‌‌‍‌‌‌‌t
Ground Clearance In
14.8
Tailswing Radius Ft/in
3 ft 10 in
Undercarriage Width Ft/in
7 ft 7 in
Max Transport Height Ft/in
8 ft 5 in
Dig Depth - Mono Boom Ft/in
14 ft 0 in
Track Length On Ground Ft/in
7 ft 5 in
Dump Height - Mono Boom Ft/in
15 ft 4 in
Width Over Fixed Tracks Ft/in
7 ft 7 in
Vertical Wall - Mono Boom Ft/in
11 ft 6 in
Transport Length Mono Boom Ft/in
20 ft 4 in
Ground Level Reach - Mono Boom Ft/in
14.8
capacities
Fuel Tank Gallon (US)
27.7
Hydraulic Tank Gallon (US)
22.5
performance
Arm Tearout Lbf
9779
Bucket Breakout Lbf
13151
Number Of Main Pumps
1
Travel Speed - Low Mph
1.6
Travel Speed - High Mph
3.2
Main Pump - Flow Gallon (US)/min
50.7
literature
Name Link
E90D Midi Excavator Specifications Download
