New Holland C314X Mini Track Loaders
Ditch the shovel and wheelbarrow and all the hard manual labor that goes with them. The New Holland C314 mini track loader is all the equipment you need to get more done. The C314’s big operating capacity adds more jobs to your residential construction and landscaping checklist. Furthermore, the narrow working width gets you in and out of tight spots with ease. |

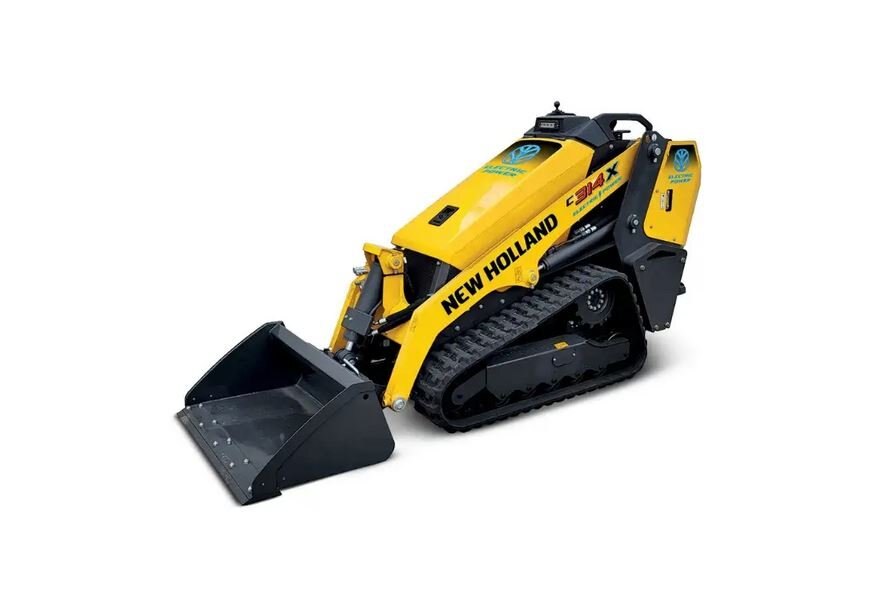

C314XDitch the shovel, wheelbarrow and all the hard manual labor that goes with them — New Holland Construction's first all-electric Mini Track Loader is all the equipment you need for any compact jobsie you want to tackle. The C314X is loaded with the features that benefit your jobs from start to finish. Two track configuration widths means there’s no sacrificing top-grade performance on anysize jobsites, or even indoor confined locations. |
TAKE A BREAK FROM BACK-BREAKING WORK

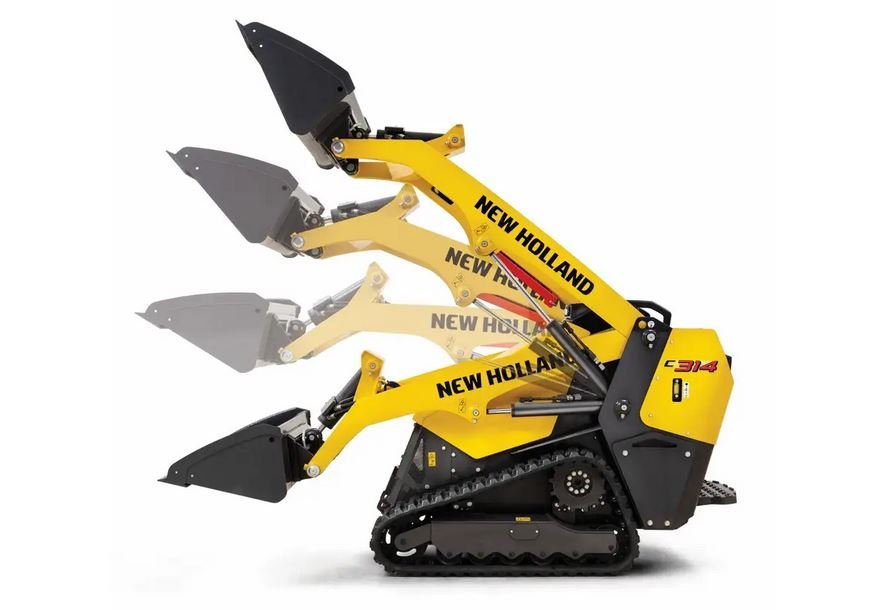

LIFT WITH EASEGrading residential lots, moving palletized material, installing landscape irrigation just got easier. The C314X and all 3,886 lb (1862 kg) of operating weight on it's narrow track configuration and 4,133 lb (1875 kg) on the wide track configuration have your back on the jobsite. The radial lift geometry with 86.7" hinge pin height means a simple linkage system with a single pivot point to maxium dump height, providing greater forward reach without the need for added daily maintence checks. |
SMALL BUT MIGHTYTake a break from back-breaking work to discover how power and versatility are a formidable combination in the C314X. A 56.5 in (1435 mm) machine height and 85.6 in (2175 mm) machine length - providing up to 2,810 lb (1275 kg) of tipping load on the narrow track. Plus, dual electric drive motors offer swift maneuverability and adjustable EH controls allows operators to complete the most precise jobs in tight areas with ease. |
CONSIDER WIDE TRACKThe width of the wide track configuration on the C314X measures 40.4 in (1026 mm) to maximize your versatility and maintain stability in developing job sites and moving landscaping materials over uneven terrain. With 2,945 lb (1336 kg) of tipping load on the wide track and 1,472 lbs (667 kg) at 50% of rated operating capacity, you can count on the C314X to possess the strength required for the operation. |
POWER AND VERSATILITYThe C314X's standard common industry interface (CII) coupler and 14-pin electric multifunction control offers greater compatibility with attachments ranging from augers, trenchers, grader boxes, landscape rakes, and beyond. The 23.5 kWh electric powertrain provides quiet and smooth operation. Operators can maximize the total cost of ownership with less maintenance and maximum uptime with 3 to 7 hours of ru EFFICIENT OPERATIONOperators can take advantage of a cushioned platform, grab handles, hand throttle, key start, cup holder and cell phone pocket. Use the ergonomic electro-hydraulic joystick controls with adjustable sensitive and responsivness to tackle jobs and maneuver the most complex jobsites. |
