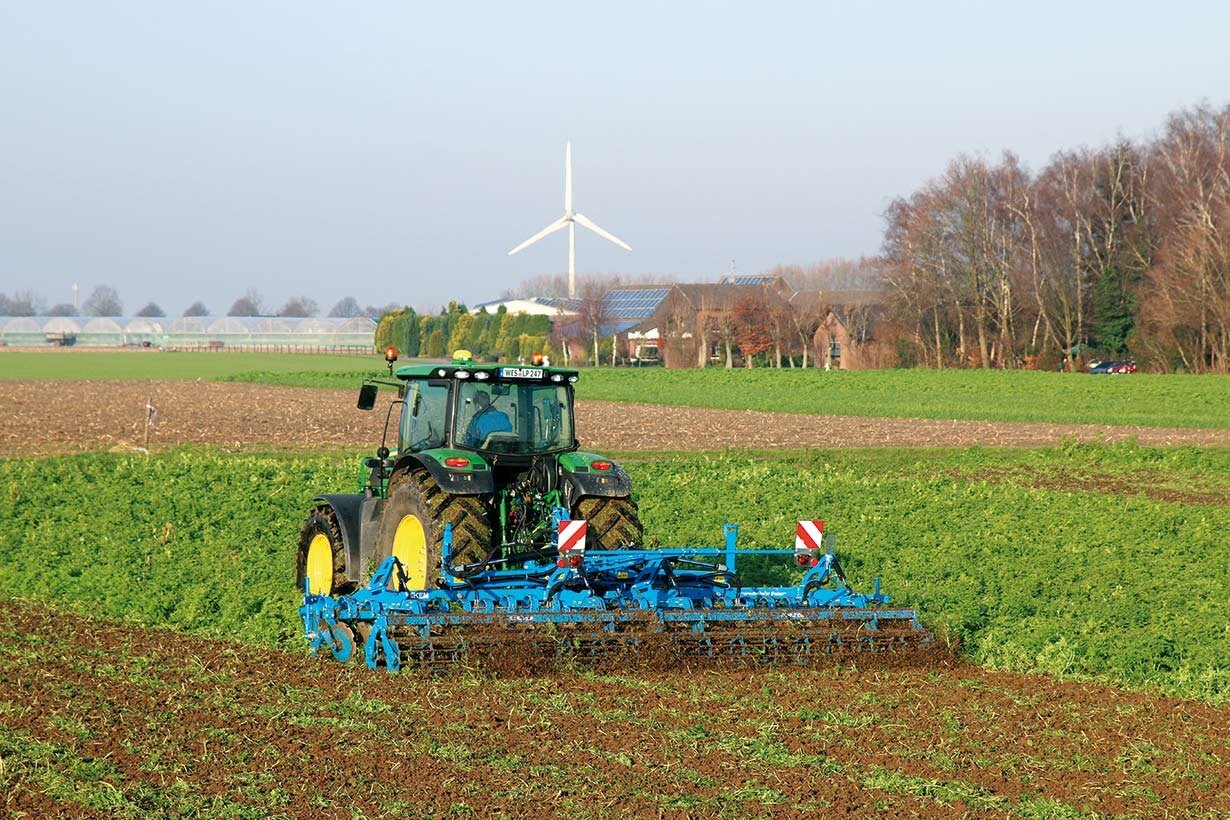

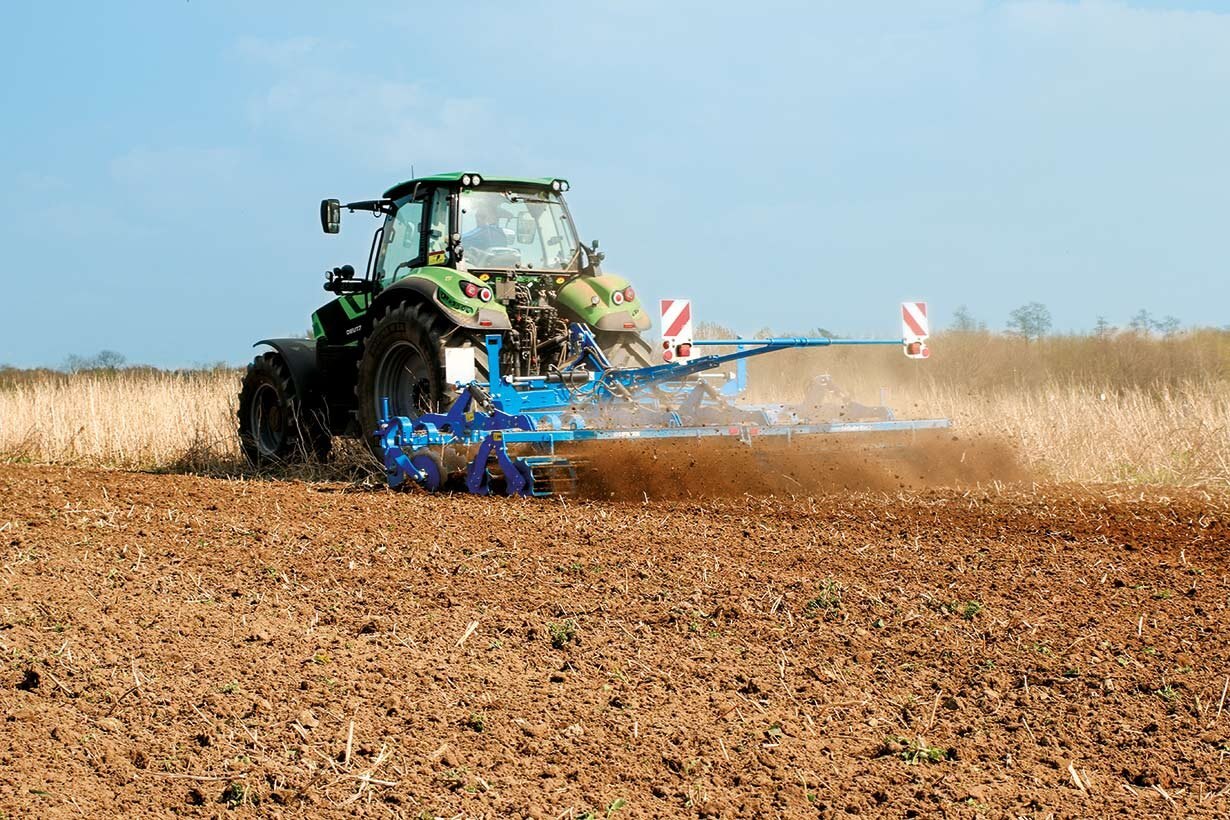

The compact Heliodor compact disc harrow can be used for shallow stubble cultivation on light and medium soils or for seedbed preparation. Its low weight allows high working speeds with low power requirements and therefore powerful cultivation. The Heliodor is available in working widths of 3 - 16 metres and can be combined in a variety of ways for sowing, catch crop sowing or slurry spreading.
Frame and discs

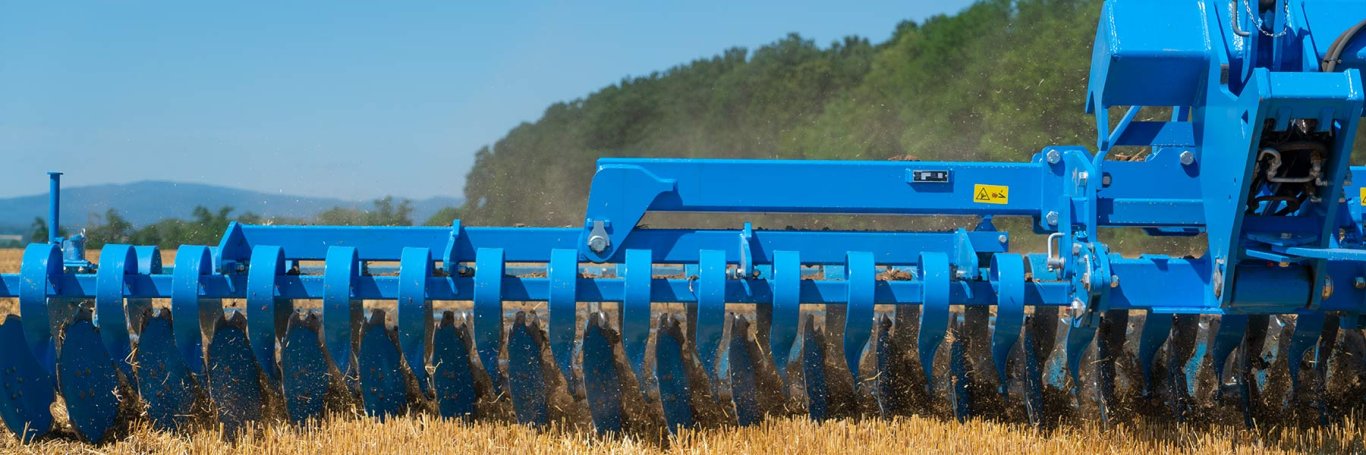

The Heliodor works with 2 rows of serrated concave discs with a diameter of 510 mm:
Line spacing: 12.5 cm
Beam spacing: 70 or 95 cm
Frame height: 54.5 cm
Working depth: up to 12 cm

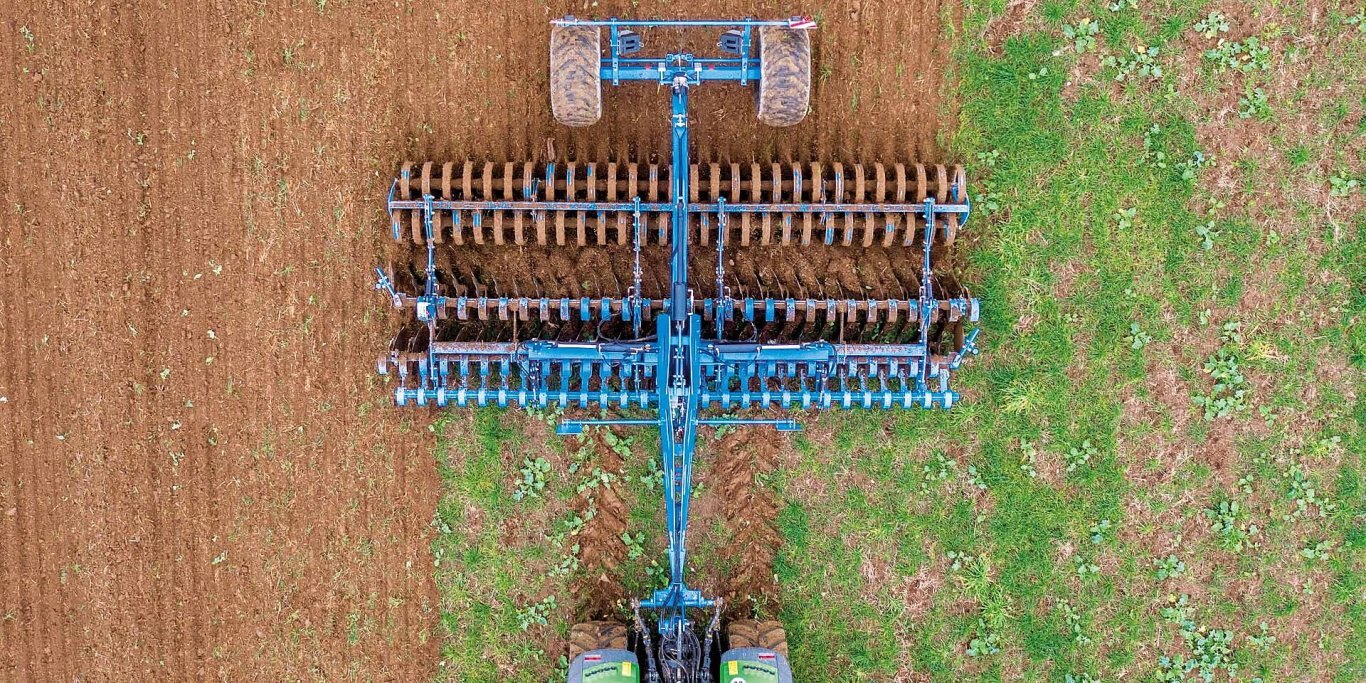

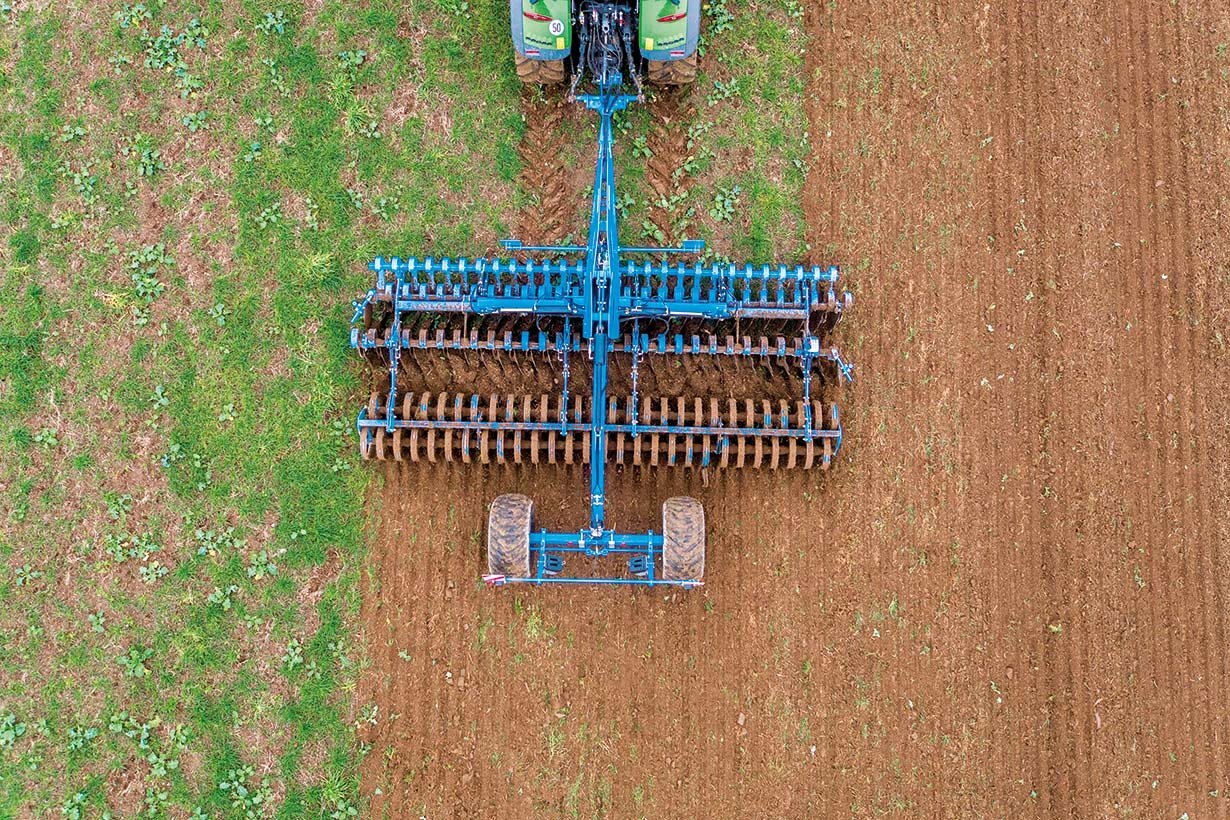

Its short, compact structure with an optimum centre of gravity enables it to be used on lighter tractors that have a lower lifting capacity. The Heliodor is therefore available in mounted versions up to 7 m working width. Semi-mounted versions are available from 4 - 7 metres wide and trailed models from 8 - 16 metres.
Work without clogging
The open design of the Heliodor frame with large free spaces prevents blockages.
Perfectly adapted

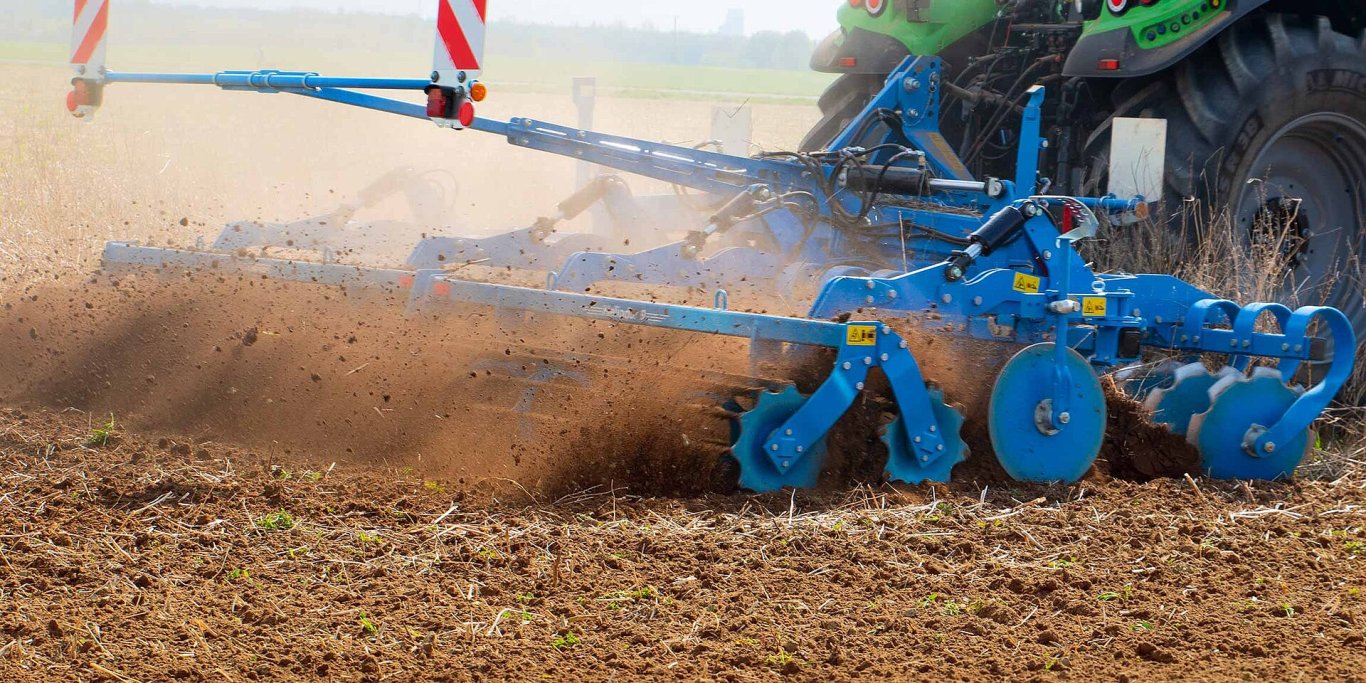

From working widths of 5 metres, the Heliodor's disc sections are pendulum-suspended under the frame. Regardless of the chassis unit, the self-levelling suspension ensures that the implement runs smoothly while adapting the depth control to the contours of the field. There are further ways to adapt the compact disc harrow to your conditions.
Gut kombiniert

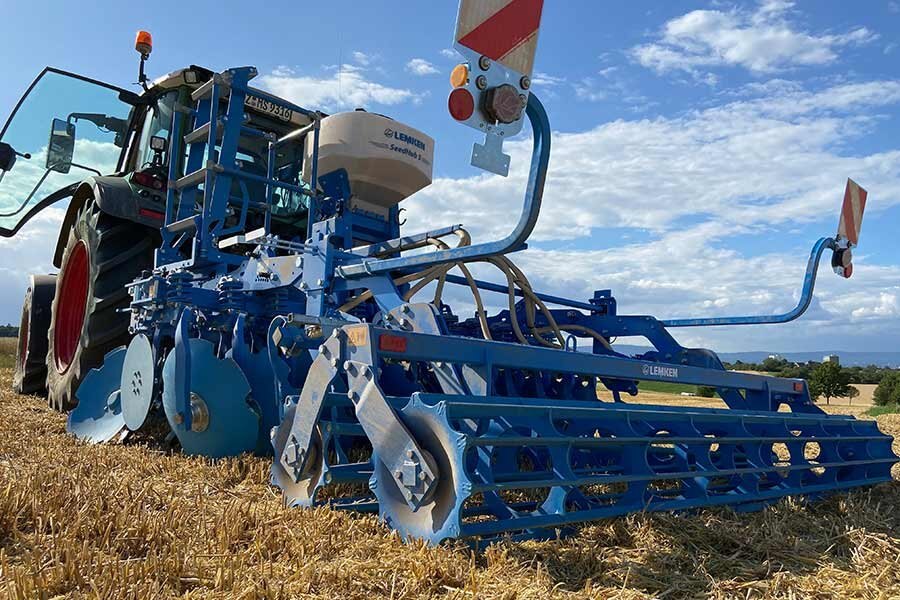

The Heliodor compact disc harrow can be combined in many ways, with seed drills for sowing, catch crop sowing or slurry spreading.

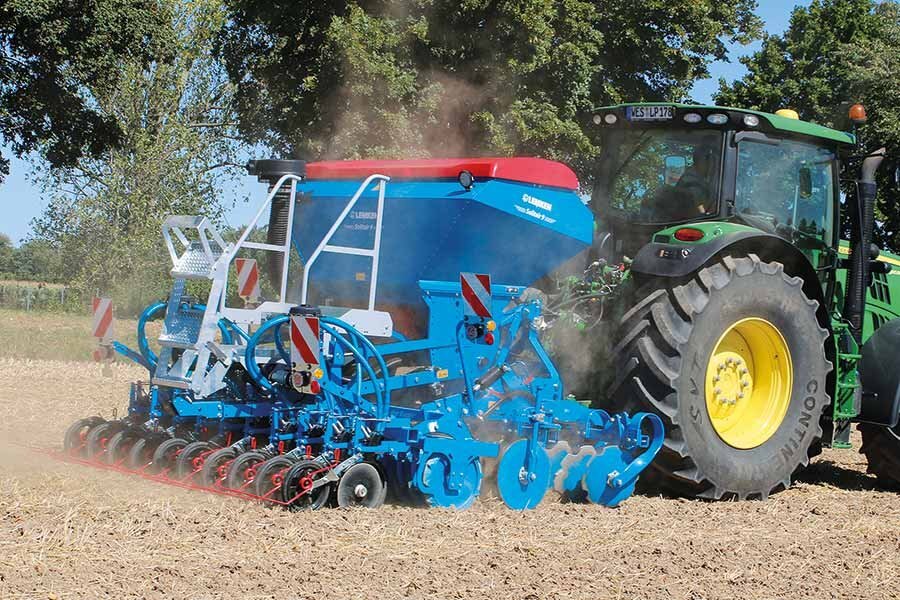

Powerful teams for sowing

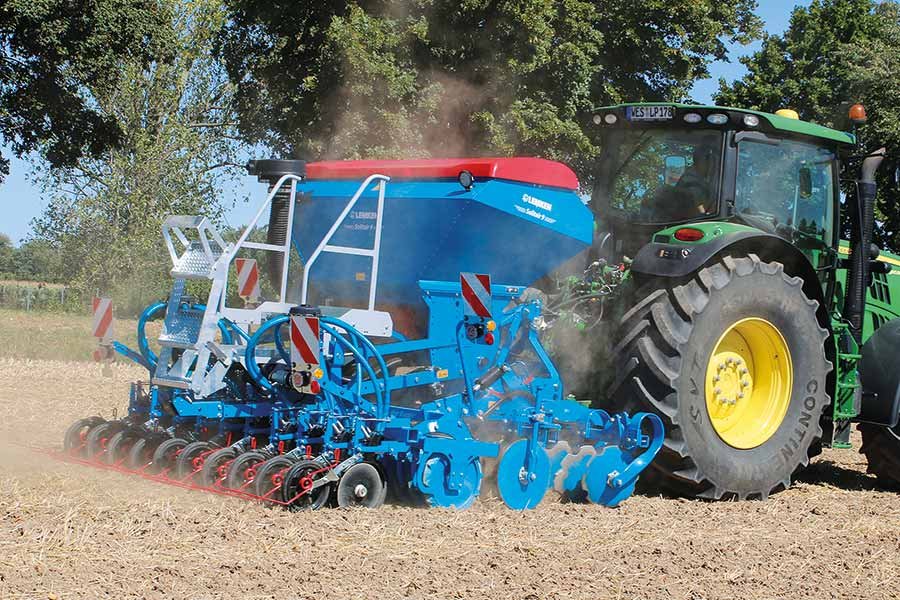

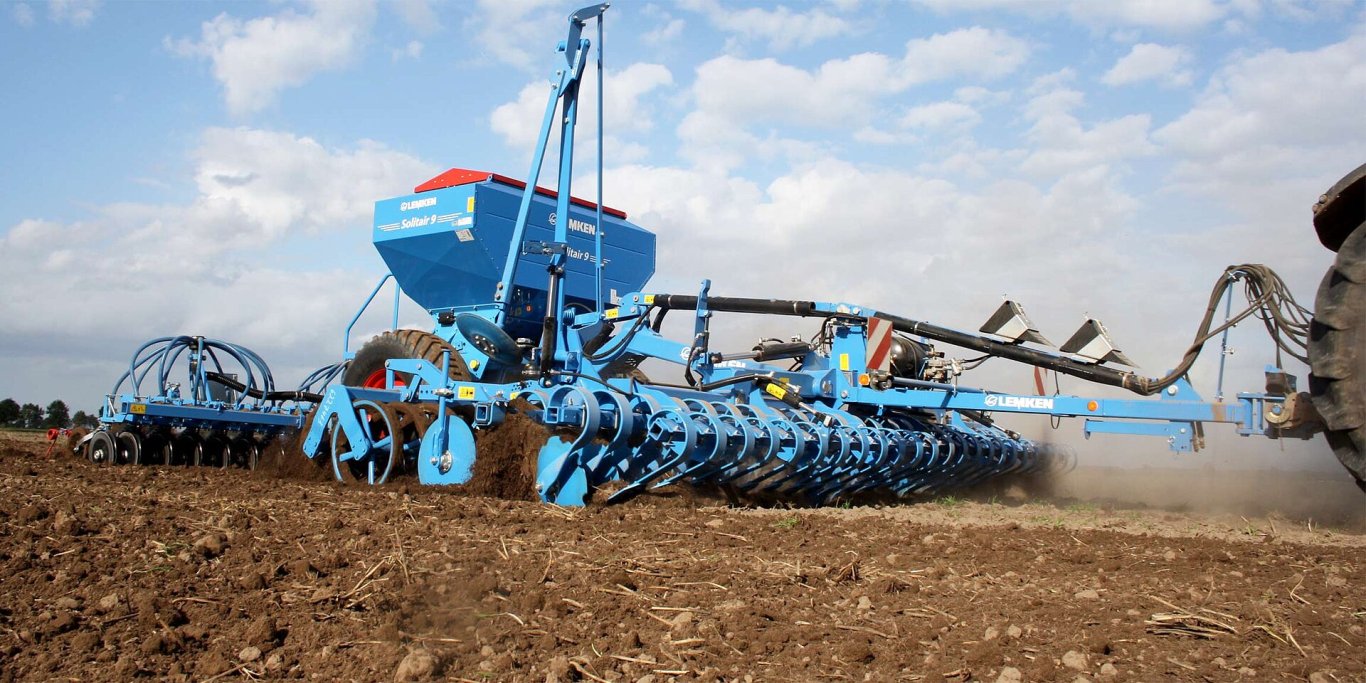

All mounted and semi-mounted pneumatic seed drills up to 6 m working width can be combined with the Heliodor for seedbed preparation. A combination axle is required for the semi-mounted versions.
