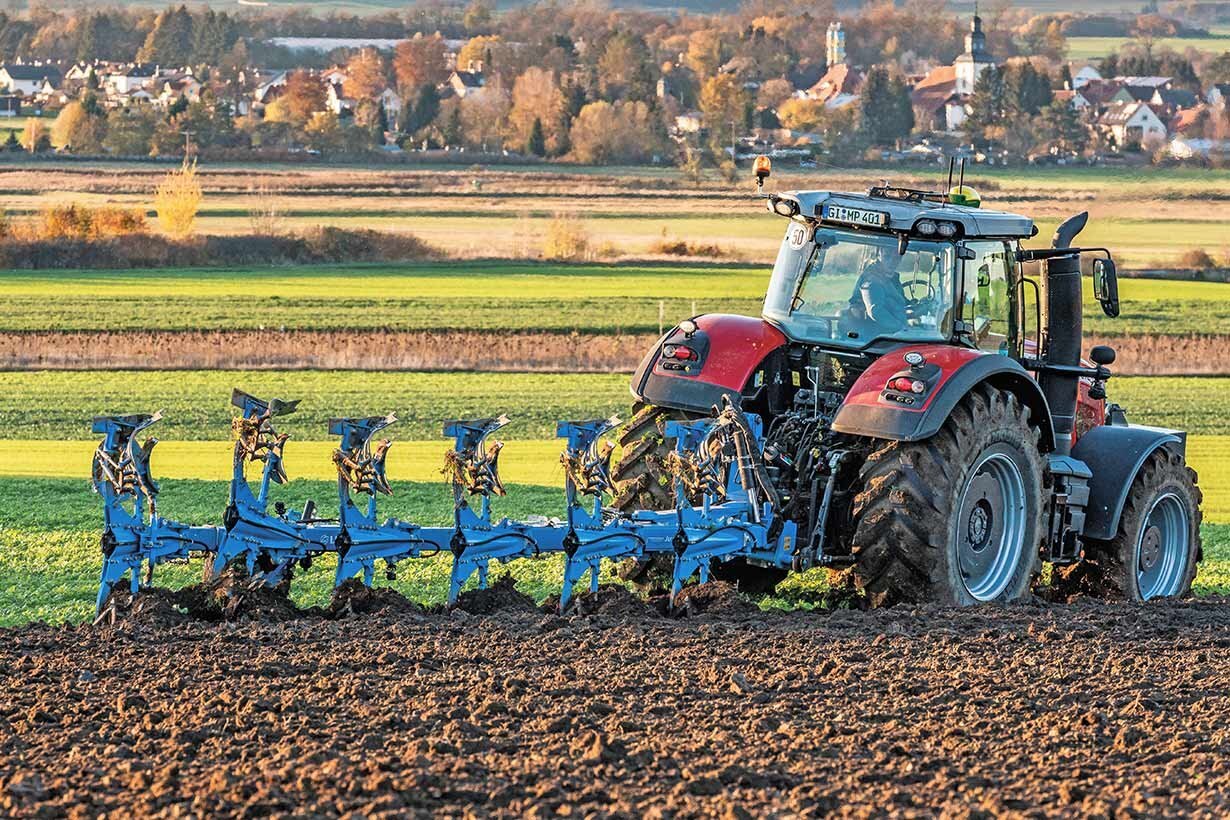

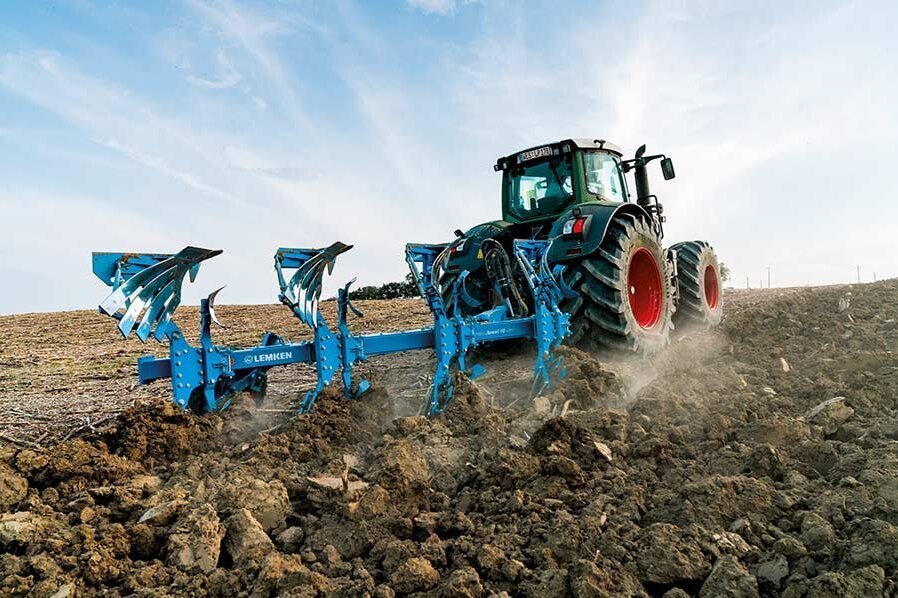

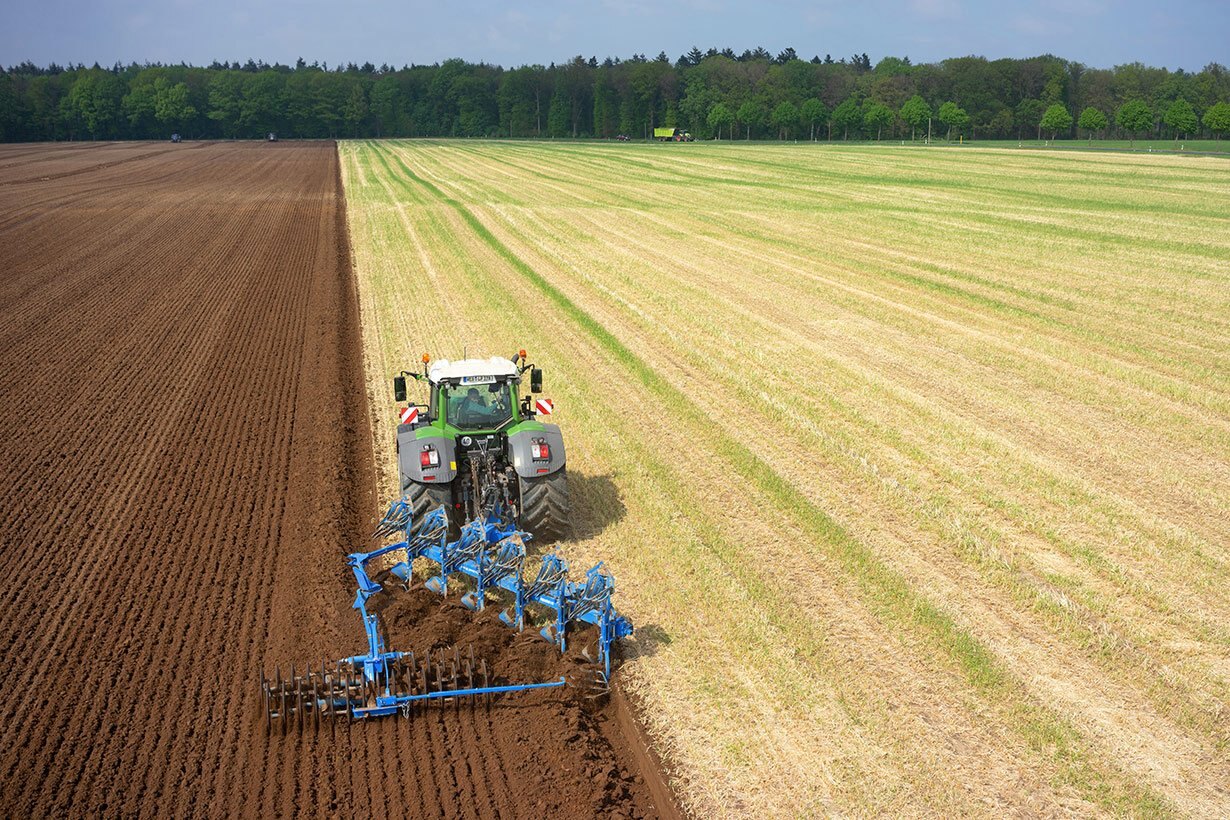

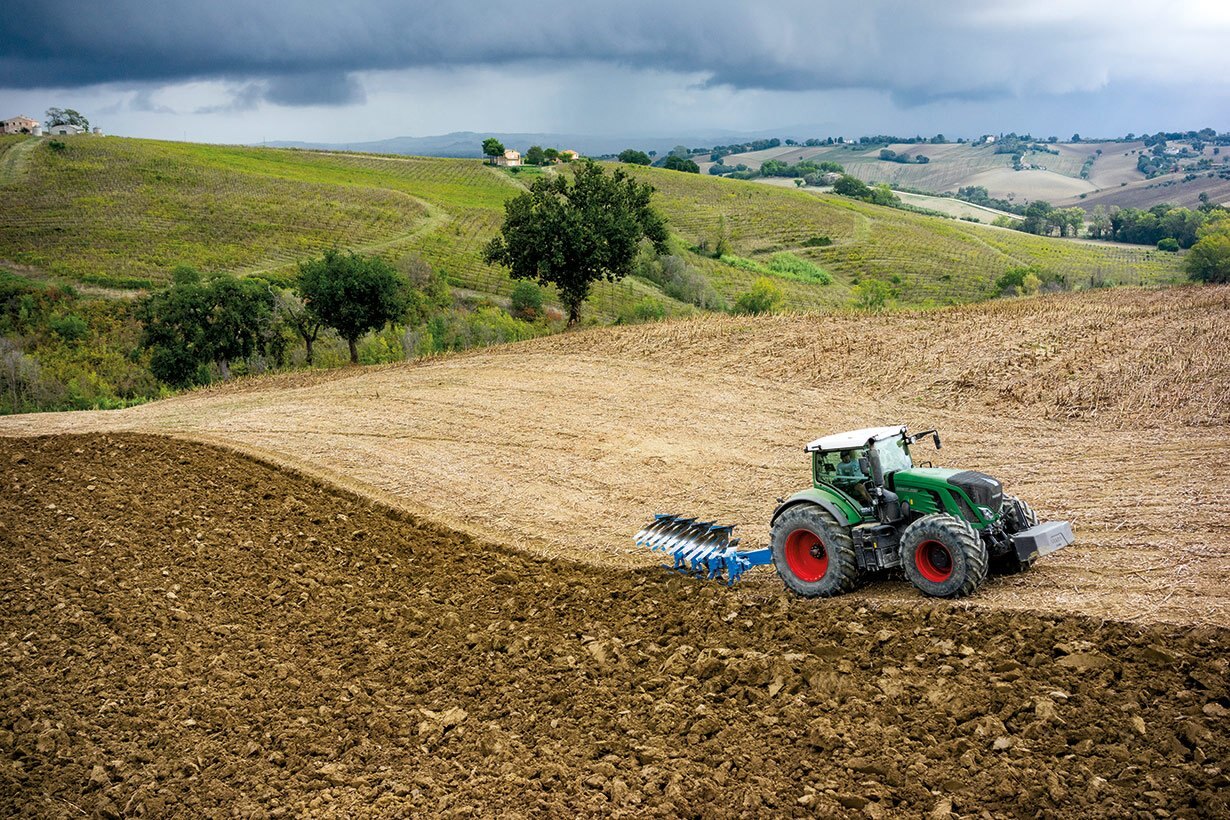

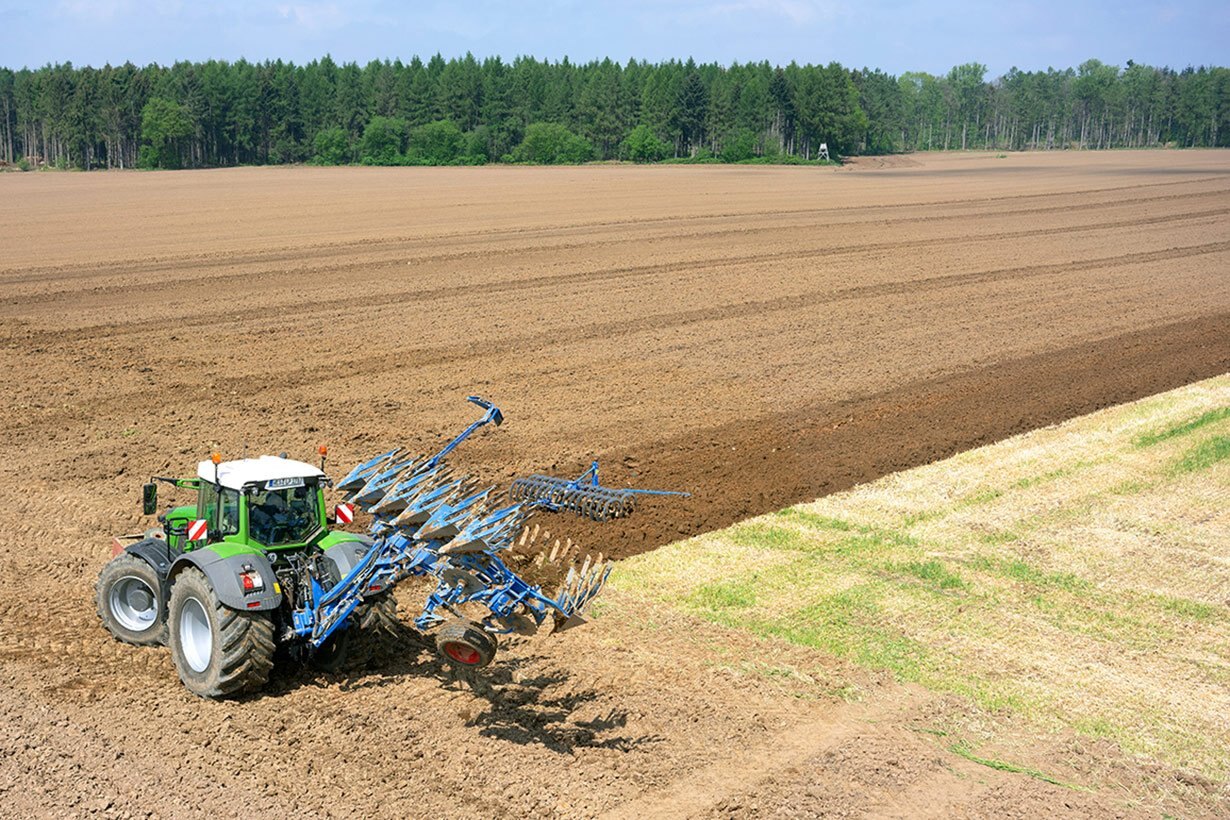

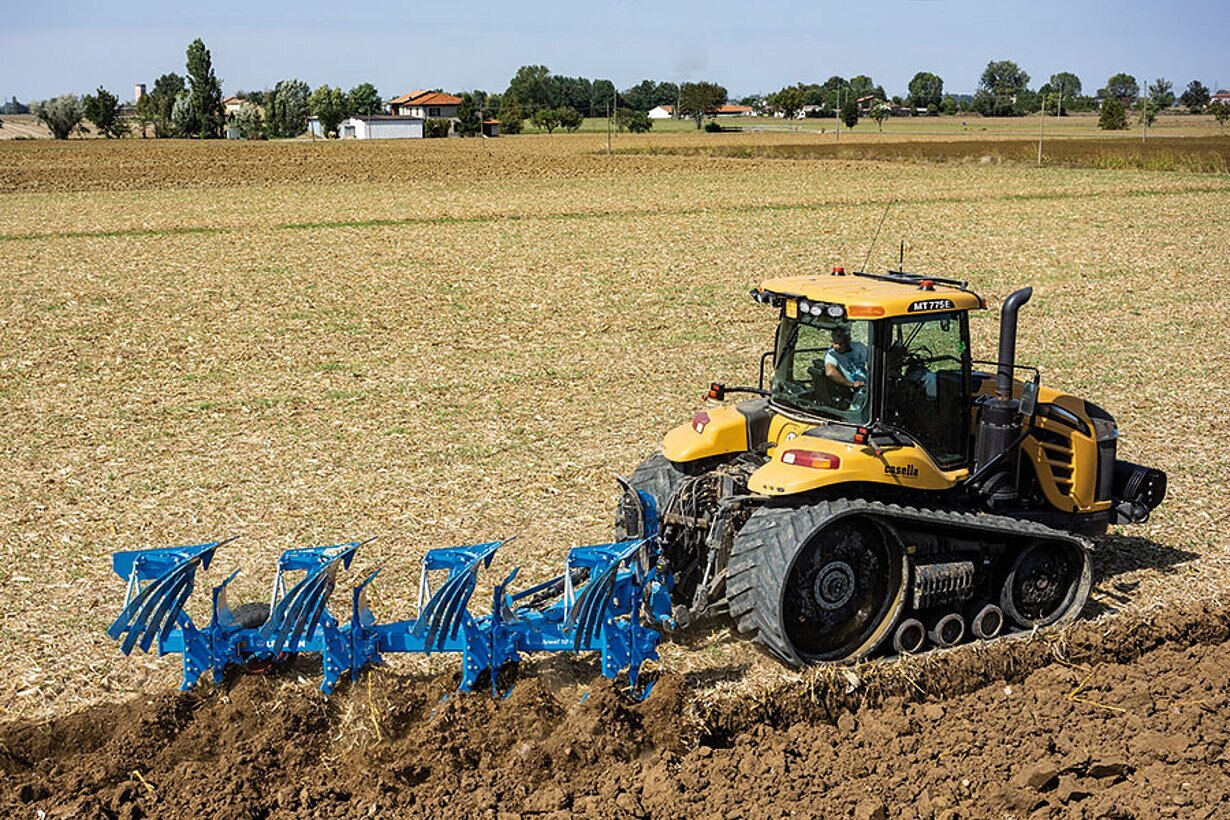

Lemken Juwel 10 M V U 6 90

  • Lemken Juwel 10 M V U 6 90
  • Lemken Juwel 10 M V U 6 90
  • Lemken Juwel 10 M V U 6 90
  • Lemken Juwel 10 M V U 6 90
  • Lemken Juwel 10 M V U 6 90
  • Lemken Juwel 10 M V U 6 90
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • For tractors from 150 - 450 hp
  • 3 - 7 furrows
  • Body spacing 90, 100 or 120 cm

No soil too heavy

The 3 - 7 furrow Juwel 10 is specially designed for heavy conditions and large tractors with up to 450 hp and can be an alternative to the semi-mounted plough. Like the Juwel 8, it is available with OF equipment for onland or in-furrow ploughing. For safer transport and to reduce the load on the tractor, special top link damping and a transport function are available.

Lemken Juwel 10 M V U 6 90

  • Frame dimension 160  x 160  x 10 mm
  • Frame height 80 cm, 85 and 90 cm as option
  • Body spacing 90, 100 or 120 cm
  • Also available with hydraulic overload protection OptiStone (U-versions)
  • Choice from an extensive range of plough bodies, skimmers and other equipment
  • Also available in OF version for onland and in-furrow ploughing
  • Memory turnover device for particularly convenient adjustment available
Specifications
Model
Juwel 10
Category Name
Agriculture
Sale Type
New
Manufacturer
Lemken
Weight (kg)
2 518
Article Number
80 4564L
Body Spacing (cm)
90
Number Of Furrows
6
Power Requirements (hp) From - To
210 - 350
Power Requirements (kW) From - To
154 - 257
basic equipment
  • Hydraulic turnover device UniTurn M 130
  • Double acting turnover device
  • Hydraulically adjustable working width
  • Box section frame 160 x 160 x 10 mm
  • Setting Centre Optiquick©
  • Lower link connection up to 6 furrows: Cat. 3 (optional Cat. 3N=L2 Z3 or Cat. 4N=L3 Z4) with 7 furrows: Cat. 4N=L3 Z4
  • Tools and shearbolts
  • Stand
  • Underframe clearance 80 cm
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Hard-faced points (optional in angled version)
  • Shape of Dural bodies B, C, D or W

The availability and basic equipment of the machine may vary depending on the country. Please contact your dealer.
