Lemken Juwel 10 M V 5 100

  • Lemken Juwel 10 M V 5 100
  • Lemken Juwel 10 M V 5 100
  • Lemken Juwel 10 M V 5 100
  • Lemken Juwel 10 M V 5 100
  • Lemken Juwel 10 M V 5 100
  • Lemken Juwel 10 M V 5 100
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • For tractors from 150 - 450 hp
  • 3 - 7 furrows
  • Body spacing 90, 100 or 120 cm

No soil too heavy

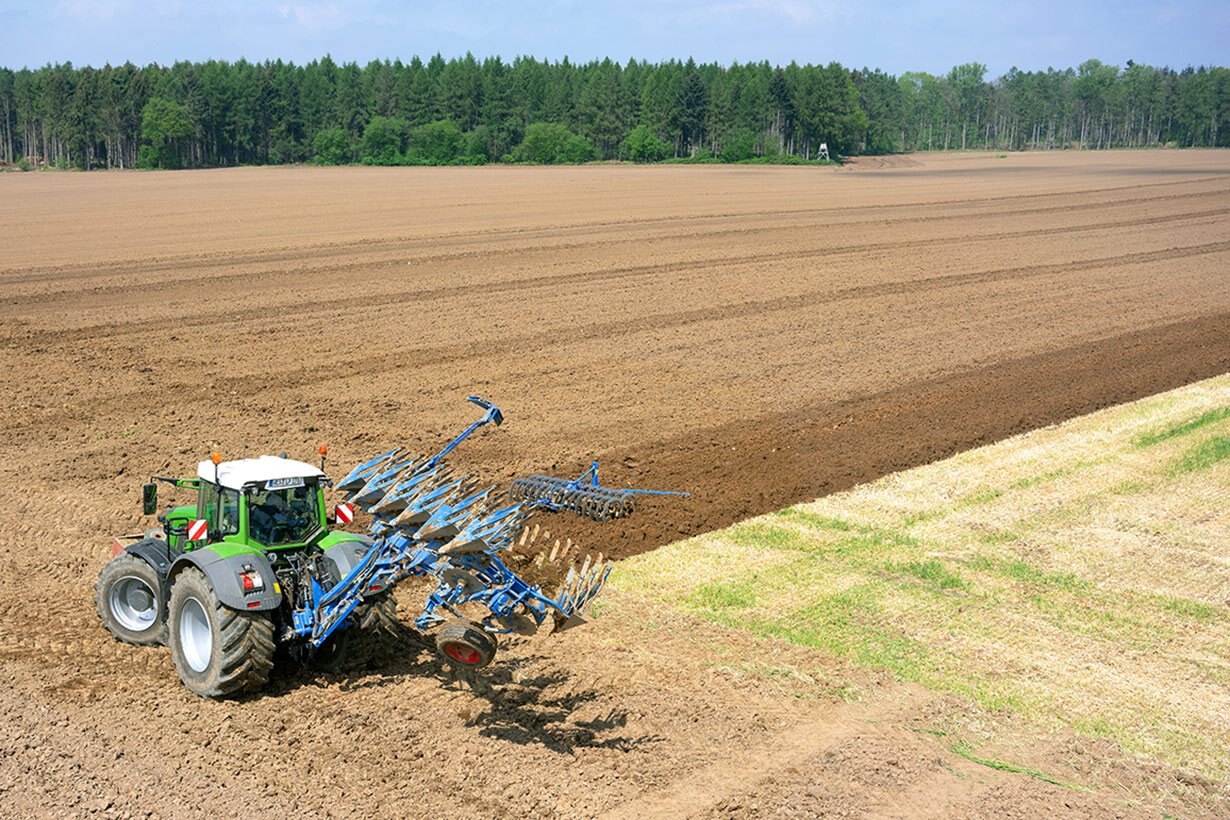

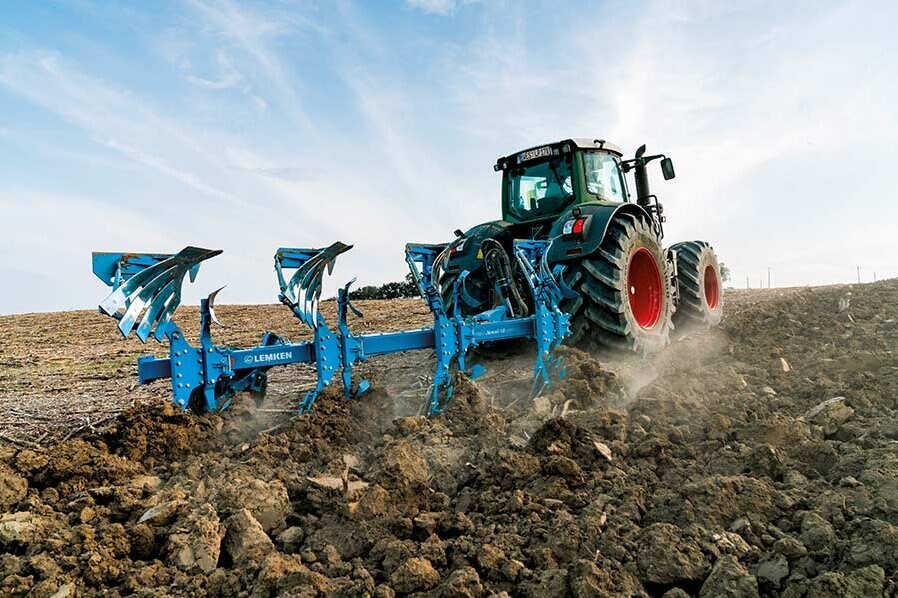

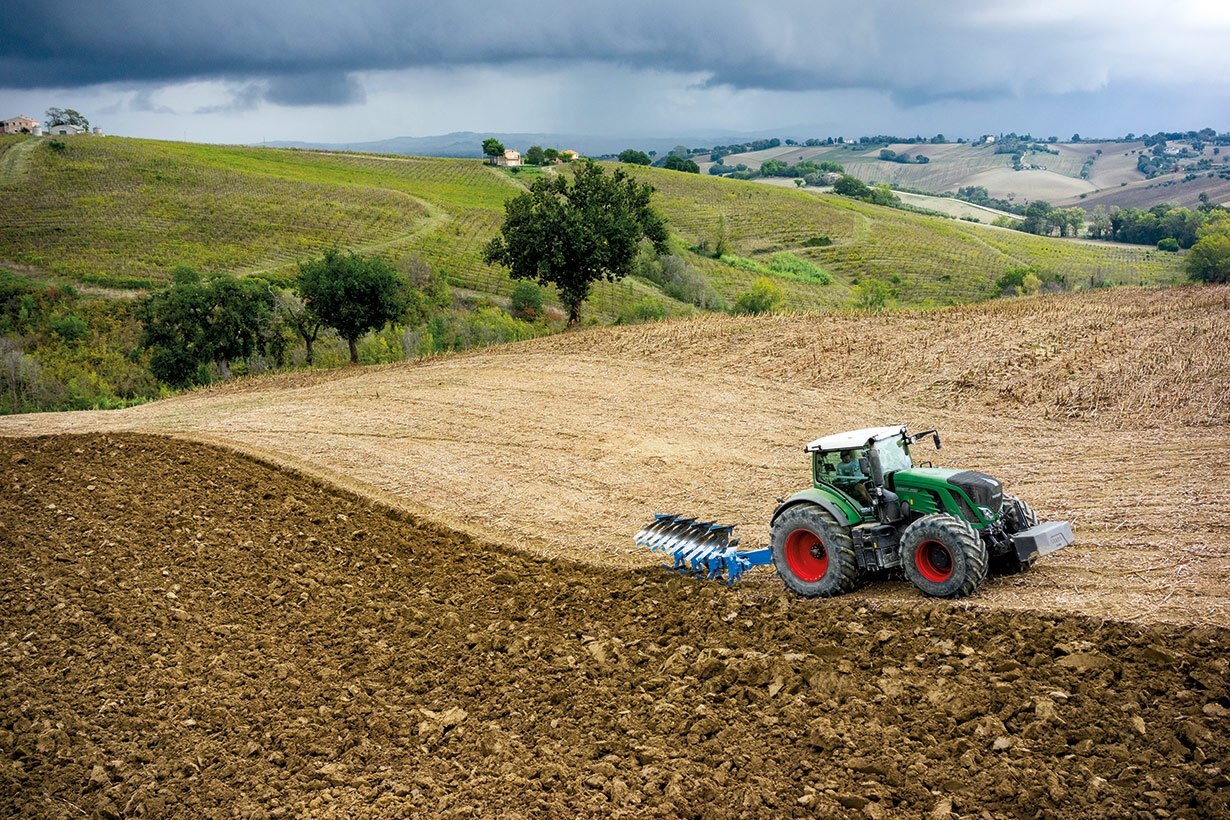

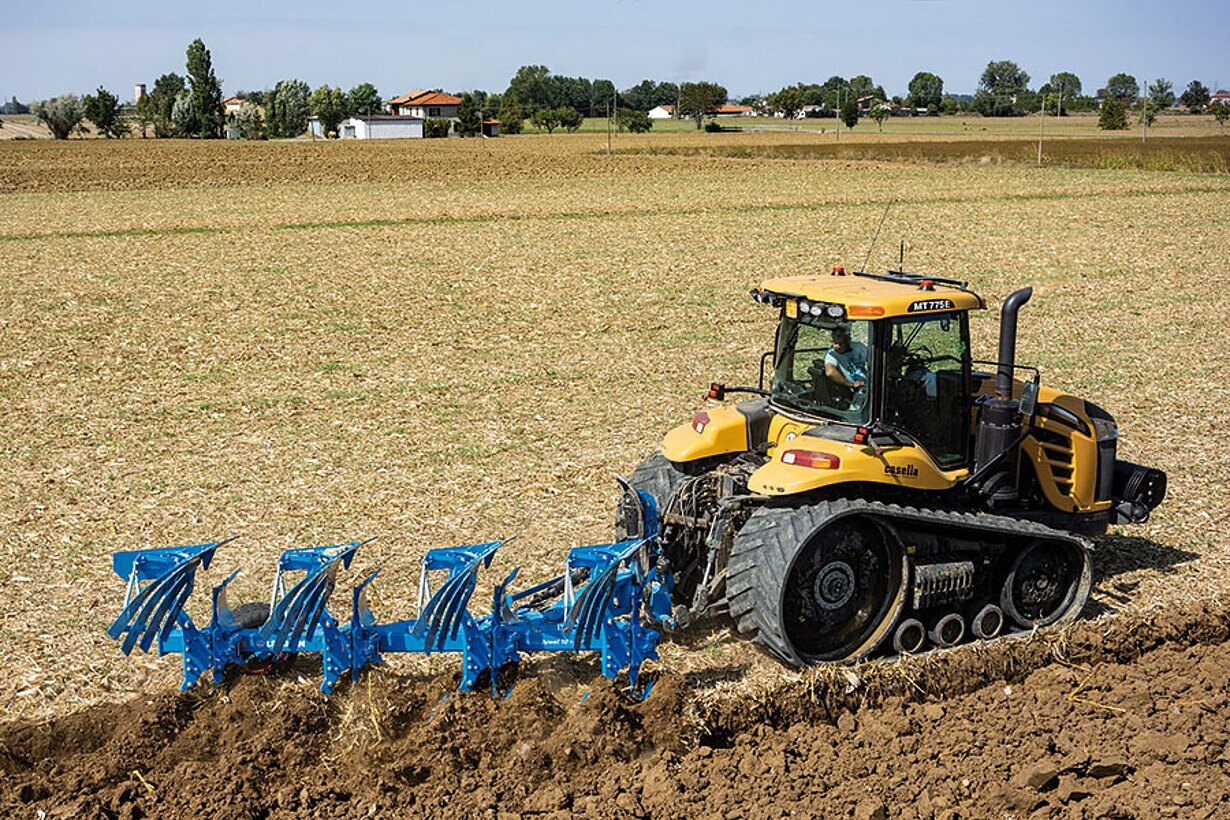

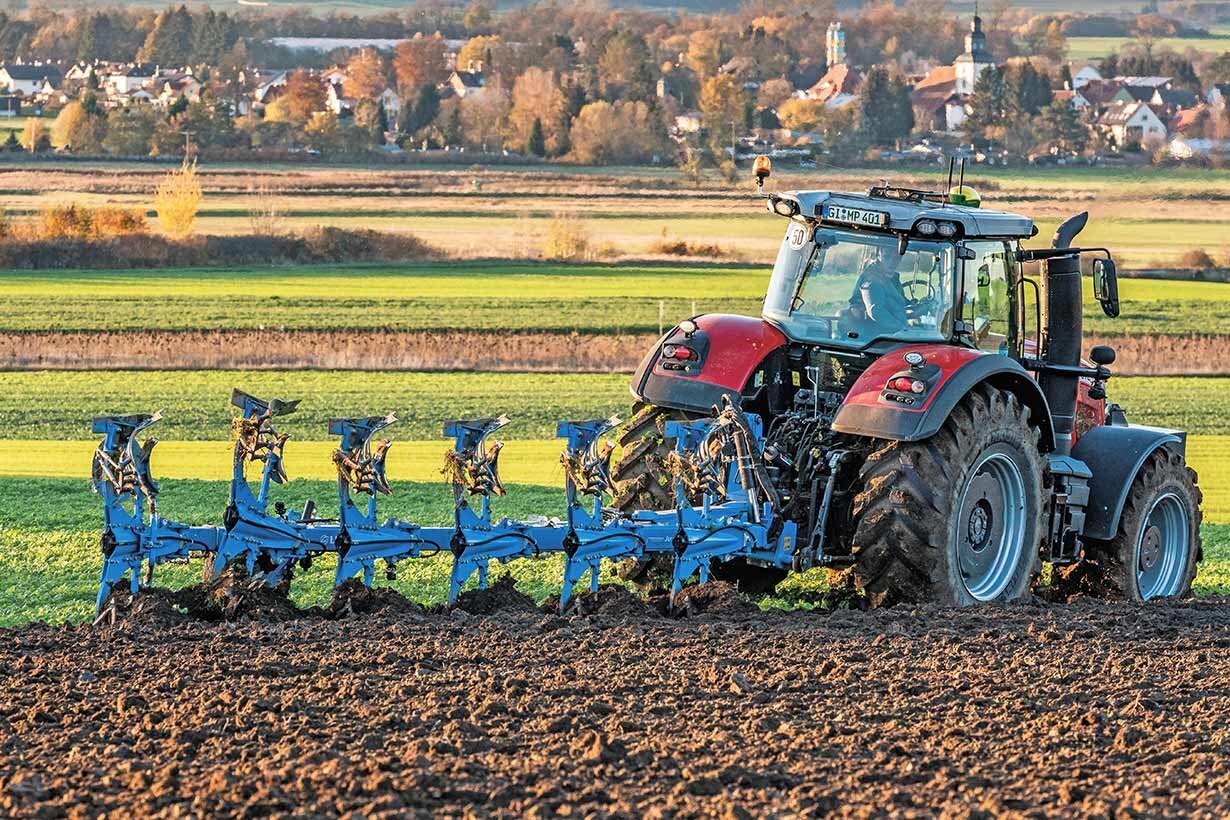

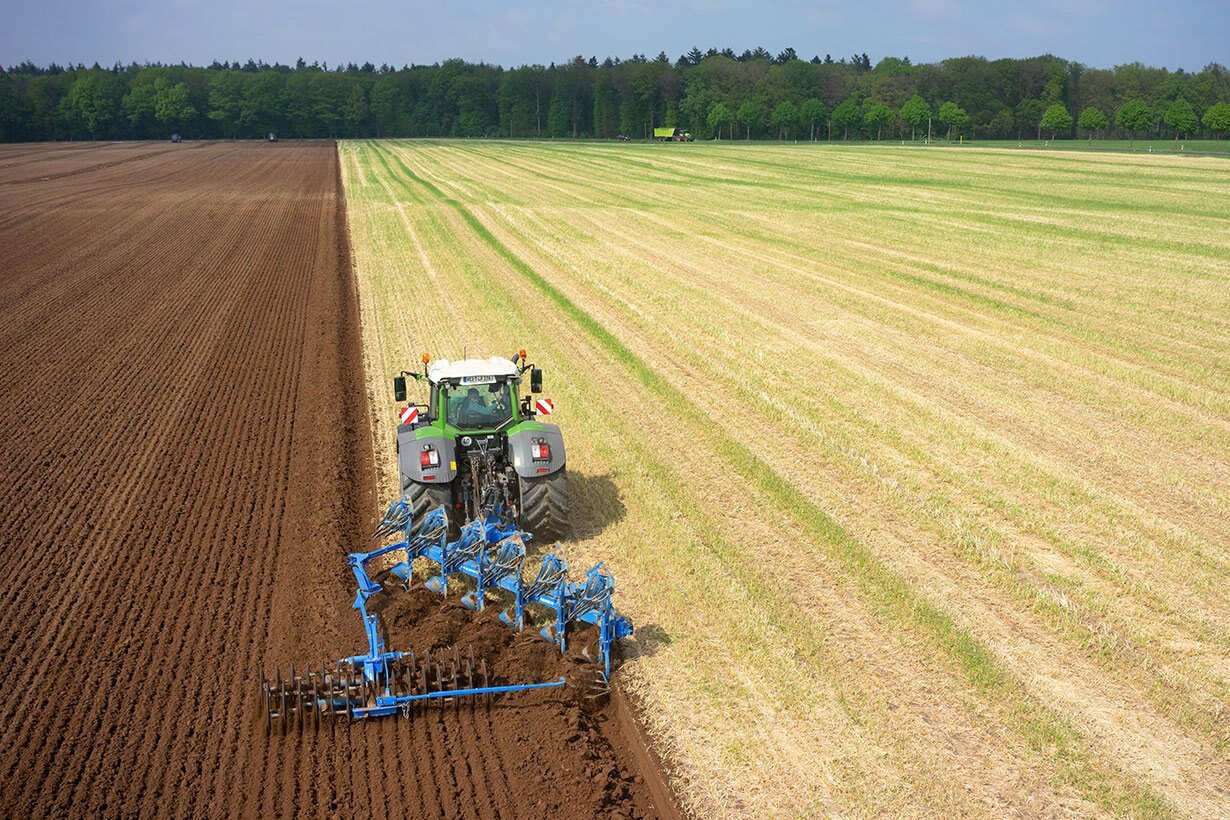

The 3 - 7 furrow Juwel 10 is specially designed for heavy conditions and large tractors with up to 450 hp and can be an alternative to the semi-mounted plough. Like the Juwel 8, it is available with OF equipment for onland or in-furrow ploughing. For safer transport and to reduce the load on the tractor, special top link damping and a transport function are available.

Lemken Juwel 10 M V 5 100

  • Frame dimension 160  x 160  x 10 mm
  • Frame height 80 cm, 85 and 90 cm as option
  • Body spacing 90, 100 or 120 cm
  • Also available with hydraulic overload protection OptiStone (U-versions)
  • Choice from an extensive range of plough bodies, skimmers and other equipment
  • Also available in OF version for onland and in-furrow ploughing
  • Memory turnover device for particularly convenient adjustment available
Specifications
Model
Juwel 10
Category Name
Agriculture
Sale Type
New
Manufacturer
Lemken
Weight (kg)
1930
Article Number
80 4521L
Body Spacing (cm)
100
Number Of Furrows
5
Working Width Per Furrow (cm)
30-55
Power Requirements (hp) From - To
180 - 300
Power Requirements (kW) From - To
132 - 221
basic equipment
  • Hydraulic turnover device UniTurn M 130
  • Double acting turnover device
  • Hydraulically adjustable working width
  • Box section frame 160 x 160 x 10 mm
  • Setting Centre Optiquick©
  • Lower link connection up to 6 furrows: Cat. 3 (optional Cat. 3N=L2 Z3 or Cat. 4N=L3 Z4) with 7 furrows: Cat. 4N=L3 Z4
  • Tools and shearbolts
  • Stand
  • Underframe clearance 80 cm
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Hard-faced points (optional in angled version)
  • Shape of Dural bodies B, C, D or W

The availability and basic equipment of the machine may vary depending on the country. Please contact your dealer.
