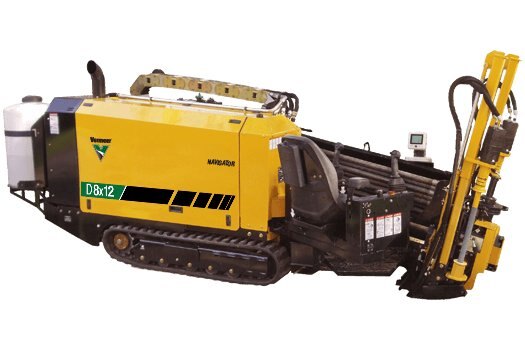

Vermeer D8x12 HDD
Call for Price
Overview
Specifications
dimensions
engine
operational
features & options
litareture
Documents

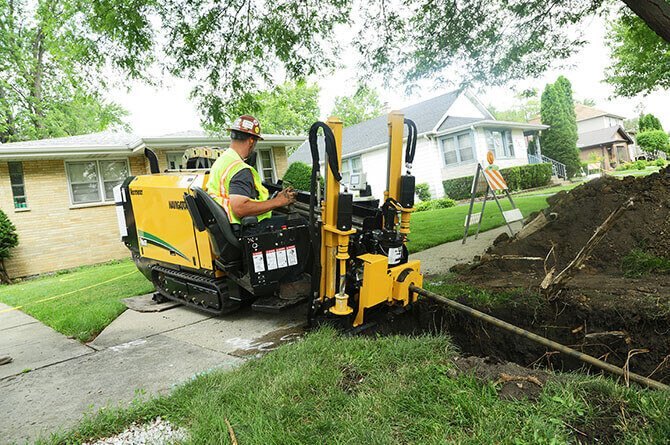

| The D8x12 Navigator® horizontal directional drill offers innovation and brawn of a large drill with a compact body and enhanced performance of a small drill. This drill offers two rod options, straightforward controls, a narrow footprint and enhanced power with less sound disruption. It is ideal for small service installation, such as gas distribution, power, water and telecommunication networks. |
Model
D8x12 HDD
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Weight
6600 lbs (2993.7 kg)
Fuel Tank
18 gal (68.1 L)
Hydraulic System
25 gal (94.6 L)
Angle Of Approach
20 deg
Width (Minimum Transport)
35.5 in (90.2 cm)
Height (Minimum Transport)
65 in (165.1 cm)
Length (Minimum Transport)
139 in (353.1 cm)
Fuel Type
Ultra Low Sulfur Diesel
Aspiration
Turbo Charged
Make And Model
Cat
Gross Horsepower
48 hp (35.8 kw)
Maximum Engine RPM
2200 rpm
Max Fuel Consumption
2.5 gph (9.5 lph)
Thrust
7850 lbs (34.9 kN)
Weight
18 lbs (8.2 kg)
Pullback
7850 lbs (34.9 kN)
Minimum Bend Radius
57 ft (17.4 m)
Minimum Bore Diameter
2.5 in (6.4 cm)
Thrust/Pullback Pump Relief Pressure
3000 psi (206.8 bar)
Maximum Spindle Speed At Max Engine RPM
182 rpm
Thrust/Pullback Pump Flow At Max Engine RPM
27.1 gpm (102.6 L/min)
Maximum Carriage Speed At Maximum Engine RPM
159 ft/min (48.5 m/min)
Maximum Ground Drive Speed At Maximum Engine RPM
2.8 mph (4.5 km/h)
Maximum Spindle Torque (High At Maximum Engine RPM)
1200 ft-lb (1627 Nm)
Maximum Spindle Torque (Medium At Maximum Engine RPM)
4400 ft-lb (5965.6 Nm)
Litareture
| Name | Link |
| OEM Brochure | Download |
Documents
63e5b44e9691ff4a6a31771e.pdf Model
D8x12 HDD
