ID # 37838109

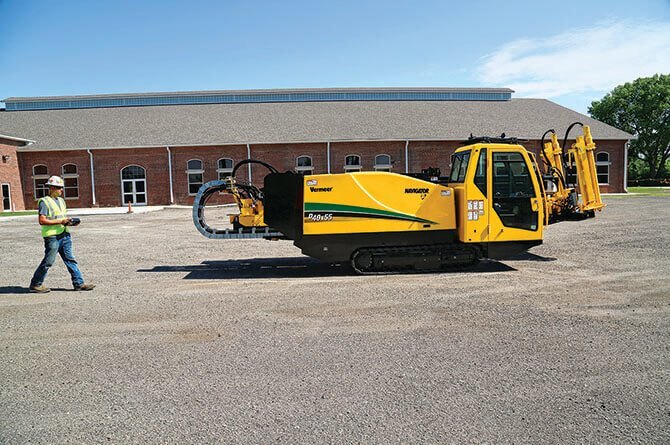

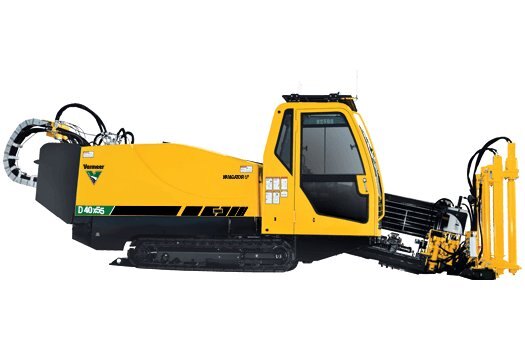

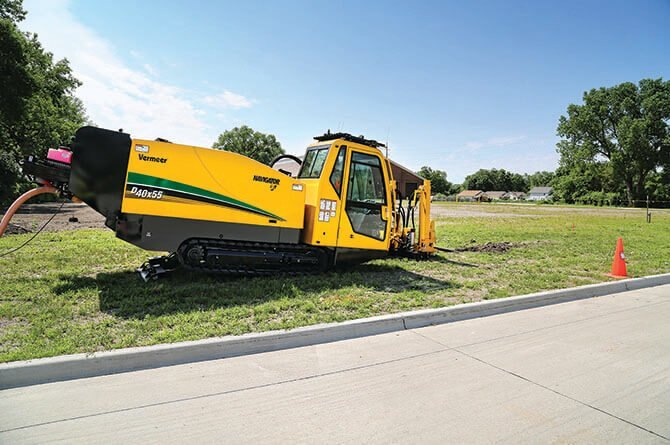

Vermeer D40x55 S3 HDD

  • Vermeer D40x55 S3 HDD
  • Vermeer D40x55 S3 HDD
  • Vermeer D40x55 S3 HDD
  • Vermeer D40x55 S3 HDD
  • Vermeer D40x55 S3 HDD
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The versatile D40x55 S3 Navigator® horizontal directional drill offers premium performance, class-leading cycle times and a variety of drill rod options, making it well-suited to a variety of applications - from long fiber shots to light pipeline work. With 40,000 lb (177.9 kN) of thrust and pullback and 5500 ft-lb (7457 Nm) of rotational torque -- a 10% increase over its predecessor (D36x50 Series II Navigator® horizontal directional drill) -- the D40x55 S3 helps maximize jobsite productivity.
Specifications
Model
D40x55 S3 HDD
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
dimensions
Weight
22380 lbs (10151.4 kg)
Fuel Tank
44 gal (166.6 L)
Hydraulic Tank
55 gal (208.2 L)
Hydraulic System
65 gal (246.1 L)
Angle Of Approach
19 deg
Width (Minimum Transport)
89 in (226.1 cm)
Height (Minimum Transport)
76 in (193 cm)
Length (Minimum Transport)
241 in (612.1 cm)
engine
Fuel Type
Ultra low sulfur diesel
Aspiration
Turbo
Make And Model
John Deere 4045
Gross Horsepower
140 hp (104.4 kw)
Maximum Engine RPM
2400 rpm
Max Fuel Consumption
7.4 gph (28 lph)
operational
Thrust
40000 lbs (177.9 kN)
Pullback
40000 lbs (177.9 kN)
Minimum Bore Diameter
4 in (10.2 cm)
Noise Level At Operator's Ear
83 dB(A)
Thrust/Pullback Pump Relief Pressure
5500 psi (379.2 bar)
Maximum Spindle Speed At Max Engine RPM
227 rpm
Thrust/Pullback Pump Flow At Max Engine RPM
32 gpm (121.1 L/min)
Maximum Carriage Speed At Maximum Engine RPM
188 ft/min (57.3 m/min)
Maximum Ground Drive Speed At Maximum Engine RPM
3.3 mph (5.3 km/h)
Maximum Spindle Torque (Low At Maximum Engine RPM)
5500 ft-lb (7457 Nm)
Maximum Spindle Torque (High At Maximum Engine RPM)
3000 ft-lb (4067.5 Nm)
Maximum Spindle Torque (Medium At Maximum Engine RPM)
4400 ft-lb (5965.6 Nm)
features & options

Features

Breakout System - Standard hydraulic vise
Drilling Lights - Standard
Flow Indicator - Standard
Remote Lockout - Standard
Stakedown System - Standard
Strike Alert - Standard

Options

Aspiration - Turbo
Brand - Aplex
Fuel Type - Diesel
Gross Horsepower - 140 hp (104.4 kw)
Make and Model - John Deere 4045
Max Fuel Consumption - 7.4 gph (28 lph)
Maximum Engine RPM - 2400 rpm
Maximum Flow - 50 gpm (189.3 L/min)
Maximum Flow - 70 gpm (265 L/min)
Maximum Operating Angle (Left/Right)* - 30 deg
Maximum Pressure - 1050 psi (72.4 bar)
Maximum Pressure - 1100 psi (75.8 bar)
On Board Tank Capacity - 6 gal (22.7 L)
