ID # 37838108

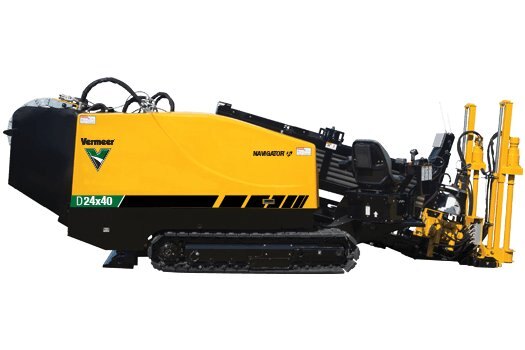

Vermeer D24x40 S3 HDD

  • Vermeer D24x40 S3 HDD
  • Vermeer D24x40 S3 HDD
  • Vermeer D24x40 S3 HDD
  • Vermeer D24x40 S3 HDD
  • Vermeer D24x40 S3 HDD
  • Vermeer D24x40 S3 HDD
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The D24x40 set the industry standard in 1993, and today there are even more reasons it's the trusted choice to meet contractors' right-size, right-power needs. With 28,000 lb (124.6 kN) of thrust and pullback and 4200 ft-lb (5694.4 Nm) of rotational torque -- an increase over its predecessor (D24x40 Series II Navigator® horizontal directional drill) -- the D24x40 S3 directional drill helps maximize machine and jobsite productivity, while class-leading cycle times help get the job done faster.
Specifications
Model
D24x40 S3 HDD
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
dimensions
Weight
21750 lbs (9865.6 kg)
Fuel Tank
44 gal (166.6 L)
Hydraulic Tank
55 gal (208.2 L)
Hydraulic System
65 gal (246.1 L)
Angle Of Approach
19 deg
Width (Minimum Transport)
89 in (226.1 cm)
Height (Minimum Transport)
76 in (193 cm)
Length (Minimum Transport)
241 in (612.1 cm)
engine
Fuel Type
Ultra low sulfur diesel
Aspiration
Turbo
Make And Model
John Deere 4045
Gross Horsepower
125 hp (93.2 kw)
Maximum Engine RPM
2400 rpm
Max Fuel Consumption
6.8 gph (25.7 lph)
operational
Thrust
24000 lbs (106.8 kN)
Weight
75 lbs (34 kg)
Pullback
24000 lbs (106.8 kN)
Minimum Bend Radius
143 ft (43.6 m)
Minimum Bore Diameter
4 in (10.2 cm)
Noise Level At Operator's Ear
83 dB(A)
Thrust/Pullback Pump Relief Pressure
5500 psi (379.2 bar)
Maximum Spindle Speed At Max Engine RPM
270 rpm
Thrust/Pullback Pump Flow At Max Engine RPM
32 gpm (121.1 L/min)
Maximum Carriage Speed At Maximum Engine RPM
240 ft/min (73.2 m/min)
Maximum Ground Drive Speed At Maximum Engine RPM
3.3 mph (5.3 km/h)
Maximum Spindle Torque (Low At Maximum Engine RPM)
4200 ft-lb (5694.4 Nm)
Maximum Spindle Torque (High At Maximum Engine RPM)
2000 ft-lb (2711.6 Nm)
features & options

Features

Breakout System - Standard hydraulic vise
Drilling Lights - Standard
Flow Indicator - Standard
Remote Lockout - Standard
Stakedown System - Standard
Strike Alert - Standard

Options

Aspiration - Turbo
Brand - Aplex
Fuel Type - Diesel
Gross Horsepower - 125 hp (93.2 kw)
Make and Model - John Deere 4045
Max Fuel Consumption - 6.8 gph (25.7 lph)
Maximum Engine RPM - 2400 rpm
Maximum Flow - 50 gpm (189.3 L/min)
Maximum Operating Angle (Left/Right)* - 30 deg
Maximum Pressure - 1050 psi (72.4 bar)
On Board Tank Capacity - 6 gal (22.7 L)
