ID # 37838104

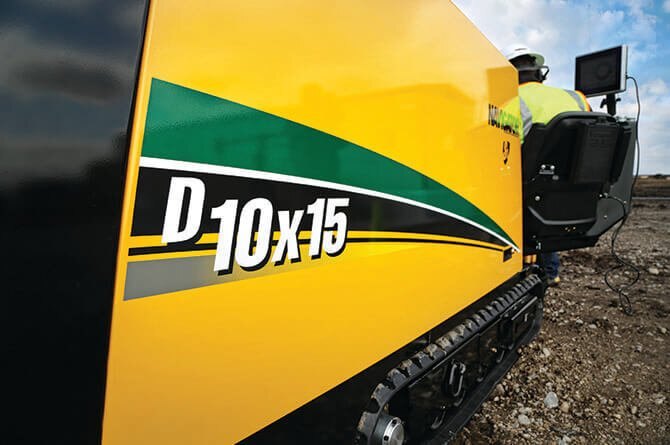

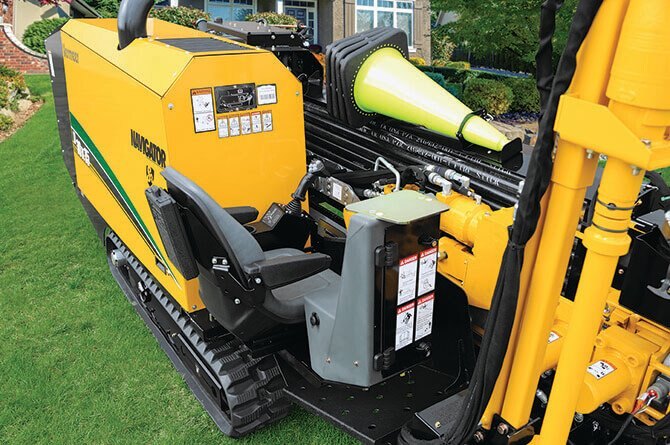

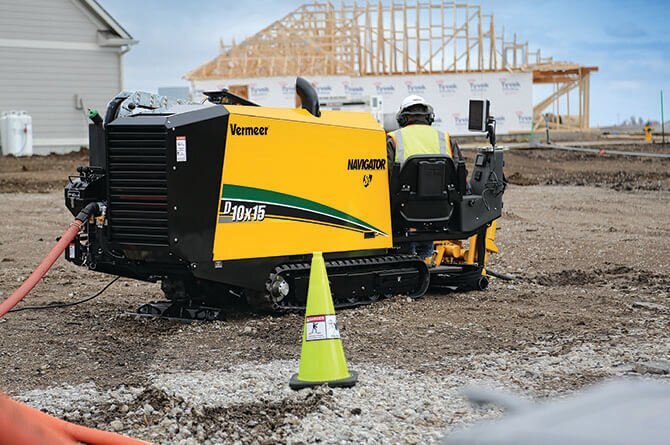

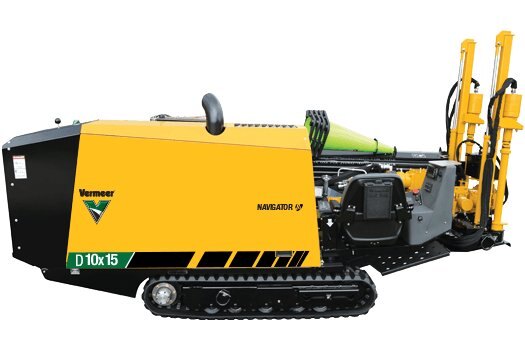

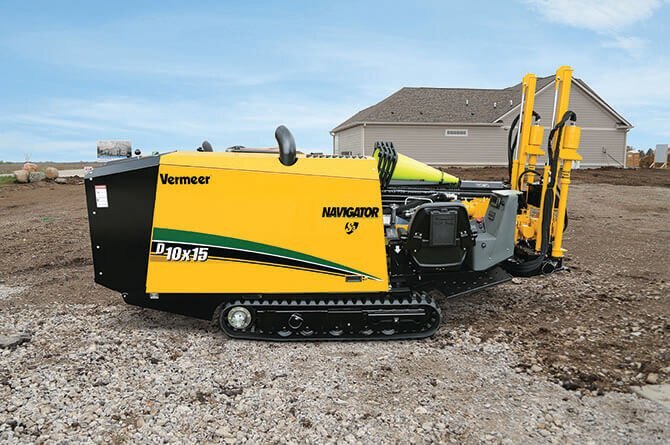

Vermeer D10x15 S3 HDD

  • Vermeer D10x15 S3 HDD
  • Vermeer D10x15 S3 HDD
  • Vermeer D10x15 S3 HDD
  • Vermeer D10x15 S3 HDD
  • Vermeer D10x15 S3 HDD
  • Vermeer D10x15 S3 HDD
  • Vermeer D10x15 S3 HDD
  • Vermeer D10x15 S3 HDD
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

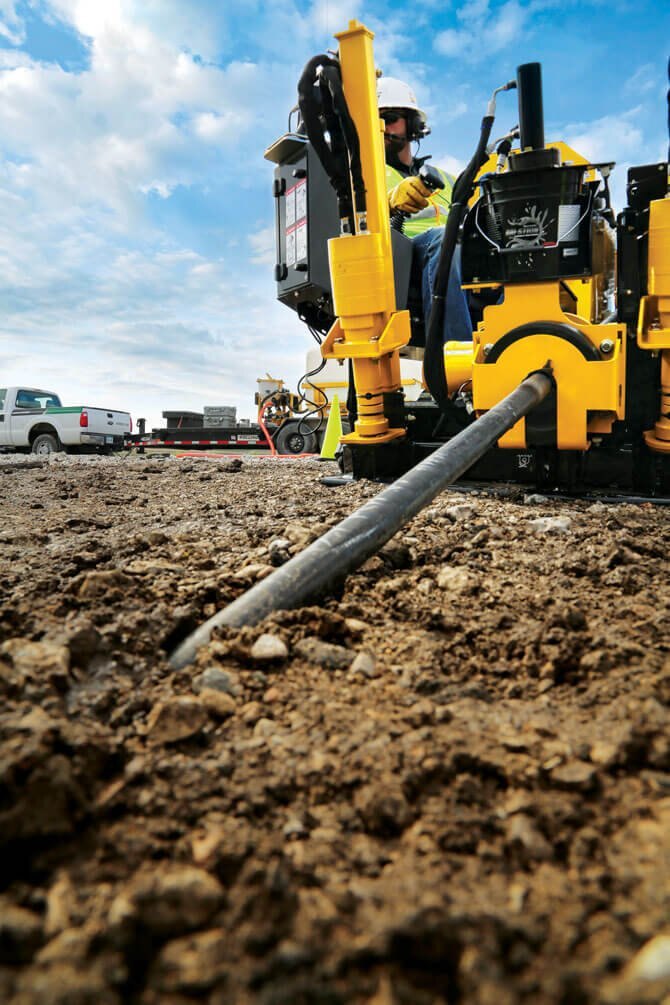

The D10x15 S3 Navigator® horizontal directional drill is a reliable, economical solution for small service installation -- built to help increase your crew's productivity so you can go from one job to the next faster. With significant gains in horsepower and speed and a reduction in noise, the D10x15 S3 can help you put more product in the ground in a shorter amount of time.
Specifications
Model
D10x15 S3 HDD
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
dimensions
Weight
7750 lbs (3515.3 kg)
Fuel Tank
18 gal (68.1 L)
Hydraulic System
25 gal (94.6 L)
Angle Of Approach
22 deg
Width (Minimum Transport)
44 in (111.8 cm)
Height (Minimum Transport)
66 in (167.6 cm)
Length (Minimum Transport)
153 in (388.6 cm)

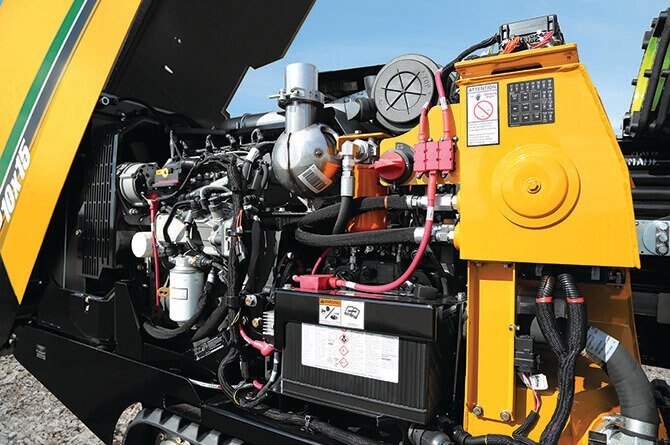

engine
Fuel Type
Low sulfur diesel
Aspiration
Turbocharged
Make And Model
Deutz TD2.9
Emissions Rating
Tier 4i (EU Stage IIIA)
Gross Horsepower
60 hp (44.7 kw)
Maximum Engine RPM
2300 rpm
Noise Level At Operator's Ear
86 dB(A)
operational
Length
6 ft (1.8 m)
Thrust
10000 lbs (44.5 kN)
Weight
26 lbs (11.8 kg)
Pullback
10000 lbs (44.5 kN)
Rod Diameter
1.66 in (4.3 cm)
Minimum Bend Radius
95.5 ft (29.1 m)
Joint Inside Diameter
.8 in (2 cm)
Minimum Bore Diameter
2.5 in (6.4 cm)
Rotation Pump Relief Pressure
4350 psi (299.9 bar)
Auxiliary Pump Relief Pressure
3000 psi (206.8 bar)
Thrust/Pullback Pump Relief Pressure
4350 psi (299.9 bar)
Maximum Spindle Speed At Max Engine RPM
240 rpm
Rotation Pump Flow At Maximum Engine RPM
29 gpm (109.8 L/min)
Thrust/Pullback Pump Flow At Max Engine RPM
29 gpm (109.8 L/min)
Maximum Carriage Speed At Maximum Engine RPM
208 ft/min (63.4 m/min)
Maximum Ground Drive Speed At Maximum Engine RPM
3.3 mph (5.3 km/h)
Maximum Spindle Torque (High At Maximum Engine RPM)
1500 ft-lb (2033.7 Nm)
features & options

Features

Breakout System - Standard hyd vise
Flow Indicator - Standard
Remote Lockout - Standard
Stakedown System - Standard or aggressive
Strike Alert - Standard

Options

Aspiration - Turbocharged
Brand - FMC
Emissions rating - Tier 4 Final (EU Stage IV)
Emissions rating - Tier 4 Final (EU Stage V)
Fuel Type - Low sulfur diesel
Gross Horsepower - 60 hp (44.7 kw)
Make and Model - Deutz TD2.9
Maximum Engine RPM - 2300 rpm
Maximum Flow - 15 gpm (56.8 L/min)
Maximum Pressure - 750 psi (51.7 bar)
Noise Level at Operator's Ear - 86 dB(A)
Noise Level at Operator's Ear - 87 dB(A)
On Board Tank Capacity - 25 gal (94.6 L)
