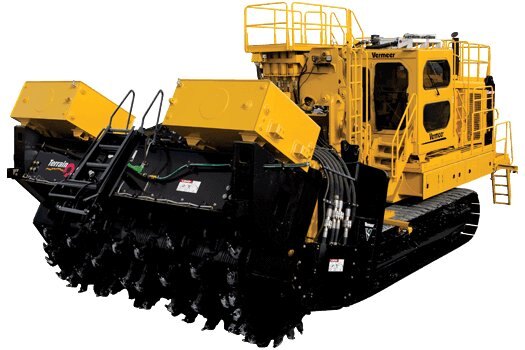

Vermeer T1655III Terrain Leveler SEM
Call for Price
Overview
Specifications
dimensions
operational
features & options
litareture
Documents
| Dual Cat engines deliver 1200 hp (895 kW) to the machine. The cab, equipped with the TEC® Plus computer-aided control system, allows the T1655III Terrain Leveler® SEM to communicate with the various control modules located throughout the machine. While the machine is performing, the air ride suspension system on the cab provides a smooth, quiet ride for the operator in the typically harsh environment of a mining operation. It also features a filtered air system, dual self-contained cooling and heating systems, sound- attenuating foam as well as dual air ride suspension seats for optimum operator and trainer comfort. |
Model
T1655III Terrain Leveler SEM
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Height Range
201 in (510.5 cm) not including handrails
Weight Range
410,000 lb (185,972.9 kg)
Width Ranges
20.4' (6.2 m) - with Terrain Leveler attachment
Approach Angle
15 deg
Oil Type
HyPower 68, HyPower 100, Hy Power 1100
Pump Type
Pressure- and flow-compensated
Track Size
Berco Hitachi EX1100
Track Pad Type
Double grouser with dirt relief
Pressure Setting
2500 psi (172.4 bar)
Track Drive Type
Dual path hydrostatic planetary transmission
Oil Tank Capacity
440 gal (1665.6 L)
Ground Pressure Maximum
25.8 psi (177.9 kPa)
Ground Pressure Minimum
25.8 psi (177.9 kPa)
Pump Flow At Maximum RPM
66.4 gpm (251.4 L/min)
Maximum Ground Speed - Low
45.7 ft/min (13.9 m/min)
Maximum Ground Speed - High
103.9 ft/min (31.7 m/min)
Parking And Emergency Brake
Wet disc, spring-applied hydraulic release
Terrain Leveler Cutting Width
180 in (457.2 cm)
Litareture
| Name | Link |
| OEM Brochure | Download |
Documents
63e5b3decbd8fa067733c47b.pdf Model
T1655III Terrain Leveler SEM
