New Inventory
ID # 37838085

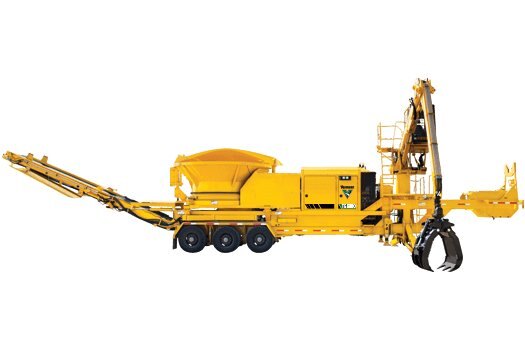

ermeer TG5000E Tub Grinder
Call for Price
Overview
Specifications
dimensions
operational
features & options
litareture
Documents
| As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need. The TG5000E tub grinder is equipped with a 500-hp (373-kW) motor to provide power to the mill. With the option to configure either a soft-start or VFD starter panel - along with Vermeer features like the duplex drum design and continuous undermill discharge conveyor system - the TG5000E has the flexibility and features you need for productive processing. |
Model
TG5000E Tub Grinder
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Maximum Width (Transport)
8.4 ft (2.5 m)
Maximum Height (Transport)
11.8 ft (3.6 m)
Maximum Length - Transport
29.3 ft (8.9 m)
Weight - Engine Option One
42080 lbs (19087.2 kg)
Rear Mount Pad Weight (Operation)
30650 lbs (13902.6 kg)
Front Mount Pad Weight (Operation)
14800 lbs (6713.2 kg)
Maximum Length - Conveyor Unfolded
51.3 ft (15.6 m)
Depth Of Tub
5.1 ft (1.5 m)
Loader Reach
27 ft (8.2 m)
Tip Diameter
29 in (73.7 cm)
Drum Diameter
22.5 in (57.2 cm)
Grapple Weight
1315 lbs (596.5 kg)
Loading Height
10.7 ft (3.3 m)
Wall Thickness
.3 in (.6 cm)
Millbox Opening
24.4 x 46.9 in (61.9 x 119.1 cm)
Drum Cutting Width
44 in (111.8 cm)
Tub Cover Positions
Transport and Operate with Hydraulic Lock. Transport also has mechanical lock
Tub Table Thickness
0.375 in (9.5 mm)
Idler Roller Diameter
8 in (20.3 cm)
Tub Cover Description
Hydraulically activated
Inside Diameter Of Tub
7.8 ft (2.4 m)
Magnetic Drive Roller Diameter
12.8 in (32.4 cm)
Standard Drive Roller Diameter
12.8 in (32.4 cm)
Thrown Object Restraint System
Pivoting tub cover assembly
Loader Lift Capacity At Full Reach
3500 lbs (1587.6 kg)
Loader Lift Capacity At 10 ' (3.05 M)
12250 lbs (5556.5 kg)
Inside Flare Diameter - At Base Of Tub
8.3 ft (2.5 m)
Inside Flare Diameter - At Tub Opening
12.3 ft (3.7 m)
Litareture
| Name | Link |
| OEM Brochure | Download |
Documents
63e5b3c7540db4273c17a46f.pdf Model
TG5000E Tub Grinder
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Quantity
1
