ID # 37838084

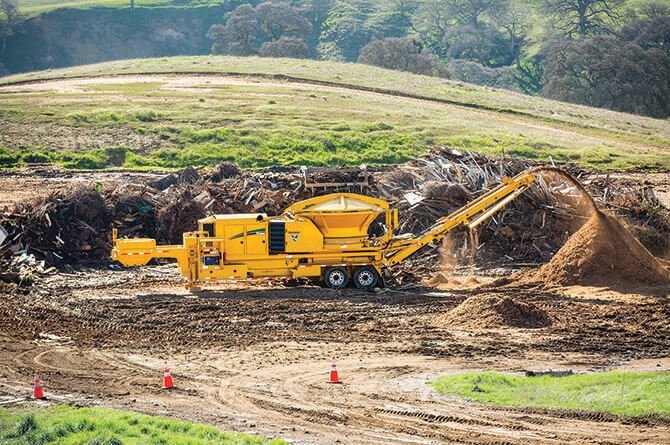

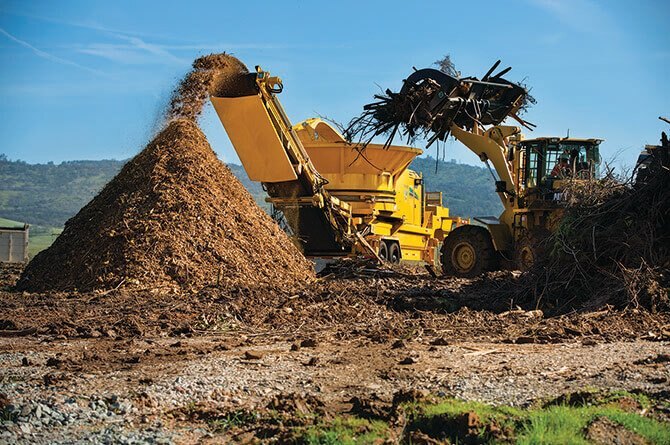

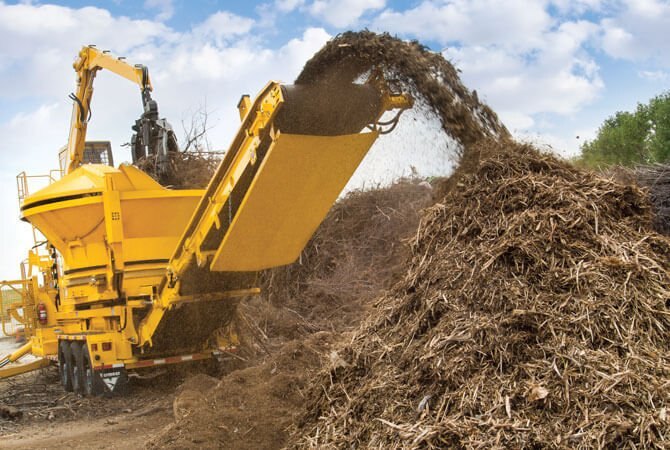

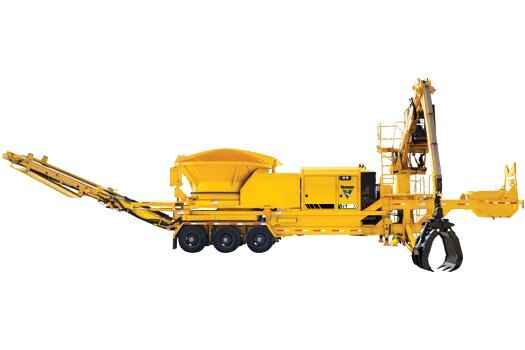

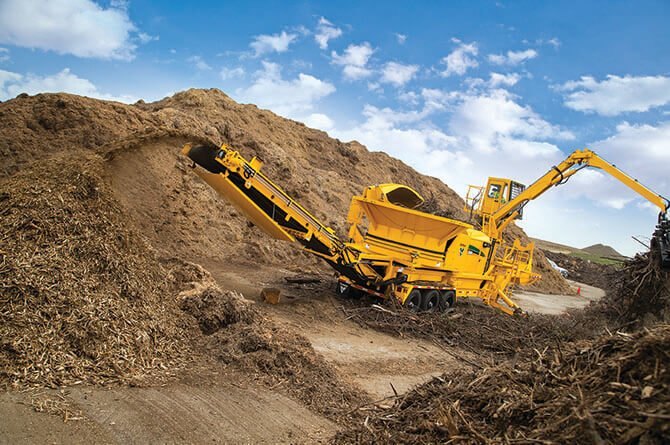

Vermeer TG5000 Tub Grinder

  • Vermeer TG5000 Tub Grinder
  • Vermeer TG5000 Tub Grinder
  • Vermeer TG5000 Tub Grinder
  • Vermeer TG5000 Tub Grinder
  • Vermeer TG5000 Tub Grinder
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The TG5000 tub grinder from Vermeer is your machine for powerful processing in a convenient package, with a 540 hp (403 kW) engine and optional loader with grapple. With the new Series III duplex drum, the TG5000 offers proven cutting performance with enhanced durability and serviceability. Look to the TG5000 for productivity and efficiency for your toughest jobs.
Specifications
Model
TG5000 Tub Grinder
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
dimensions
Axle Weight
44000 lbs (19958.1 kg)
Sound Power
Sound Power LwA=116.6 dB(A) At the lower control panel = 96.4 dB(A) In the loader cab = 76.8 dB(A)
Weight - Tandem Axle
51000 lbs (23133.2 kg)
Weight - Triple Axle
53000 lbs (24040.4 kg)
Maximum Reach Of Loader
27 ft (8.2 m)
Axle Weight - Tandem Axle
34500 lbs (15648.9 kg)
Axle Weight - Triple Axle
37000 lbs (16782.9 kg)
Maximum Width (Transport)
8.4 ft (2.6 m)
Maximum Height (Transport)
13.1 ft (4 m)
Maximum Length - Transport
45.5 ft (13.9 m)
Weight - Engine Option One
68000 lbs (30844.3 kg)
Tongue Weight - Tandem Axle
16500 lbs (7484.3 kg)
Tongue Weight - Triple Axle
16000 lbs (7257.5 kg)
Tongue Weight - Engine Option One
24000 lbs (10886.2 kg)
Maximum Length - Conveyor Unfolded
67.5 ft (20.6 m)
Maximum Height - Cab In Operating Position
18.8 ft (5.7 m)
drivetrain
Pump Type
Gear
System Type
Open-loop
Tank Capacity
21 gal (79.5 L)
Recommended Oil
VMF Gold
Filtration Method
Spin on High Pressure
Number Of Coolers
1
System Relief Pressure
260 psi (17.9 bar)
Pump Flow At Maximum RPM
10.6 gpm (40.1 L/min)
operational
Depth Of Tub
5.1 ft (1.5 m)
Loader Reach
27 ft (8.2 m)
Tip Diameter
29 in (73.7 cm)
Drum Diameter
22.5 in (57.2 cm)
Grapple Weight
1315 lbs (596.5 kg)
Loading Height
10.7 ft (3.3 m)
Wall Thickness
.3 in (.6 cm)
Millbox Opening
24.4 x 46.9 in (61.9 x 119.1 cm)
Drum Cutting Width
44 in (111.8 cm)
Tub Cover Positions
Transport and Operate with Hydraulic Lock. Transport also has mechanical lock
Tub Table Thickness
0.375 in (9.5 mm)
Idler Roller Diameter
8 in (20.3 cm)
Tub Cover Description
Hydraulically activated
Inside Diameter Of Tub
7.8 ft (2.4 m)
Magnetic Drive Roller Diameter
12.8 in (32.4 cm)
Standard Drive Roller Diameter
12.8 in (32.4 cm)
Thrown Object Restraint System
Pivoting tub cover assembly
Loader Lift Capacity At Full Reach
3500 lbs (1587.6 kg)
Loader Lift Capacity At 10 ' (3.05 M)
12250 lbs (5556.5 kg)
Inside Flare Diameter - At Base Of Tub
8.3 ft (2.5 m)
Inside Flare Diameter - At Tub Opening
12.3 ft (3.7 m)
features & options

Features

Rotor Deflector

Options

Air Cleaner - Primary & Secondary Backup Filter with precleaner and electric restriction indicator
Air Compressor Brand - Mi-T-M
Air to Boil Temperature - 125 deg
Alternator - 24 Volt, 190 Amp
Alternator - 24 Volt, 200 Amp
Axle Type - Triple Axle Over-Slung Spring Suspension (Non-loader and loader)
Capacity - 20000 lbs (9071.8 kg)
Clutch Engagement - Push Button
Clutch Type - PT Tech
Coolant Capacity (Engine and Radiator) - 20 gal (75.7 L)
Coolant Capacity (Engine and Radiator) - 24 gal (90.8 L)
Cooling Medium - Liquid
Drive Shaft - Custom 1810
Engine - 13 hp Honda
Extended Warranty - Optional
Fan - 42" Dia, Fixed Pitch, Reversible
Fan - 42" Dia, Variable Pitch, Reversible
Fuel Tank Capacity - 251 gal (950.1 L)
Fuel Type - Diesel
Fuel Type - Ultra Low Sulfur Diesel
Gross Horsepower (Maximum) - 540 hp (402.7 kw)
Ground Clearance - Option One - 11 in (27.9 cm)
Make and Model - CAT C15 T4F Stage V
Make and Model - CAT C15 Tier 3
Max Fuel Consumption - 27 gph (102.2 lph)
Max Fuel Consumption - 28 gph (106 lph)
Maximum Air Flow - 29 cfm (.8 cmm)
Maximum Pressure - 175 psi (12.1 bar)
Number of Cylinders - 6
Oil Filter - Spin-on
Oil Volume with Filter - 40.2 qt (38 L)
Oil Volume with Filter - 42 qt (39.7 L)
Preventative Maintenance - Optional
Recommended Oil - API CC/CD
Recommended Oil - CAT DEO-ULS OR API CJ-4, OR ACEA E9. CAT LABEL 350-0684 IS RECOMMENDED
Screens - Optional
Special Paint - Optional
Special Tools Group - Optional
Tank capacity - 30 gal (113.6 L)
Tires - Option One - 445/50R22.5 Steel Hub Piloted Super Singles
Torque (Max) - 1819 ft-lb (2466.2 Nm)
Torque (Max) - 1823.3 ft-lb (2472.1 Nm)
U - Joints - Greased (qty 2)
Wheels - Option One - 22.5
