New Inventory
ID # 37838074
Vermeer HG6000TX Horizontal Grinder
Call for Price
Overview
Specifications
dimensions
drivetrain
operational
features & options
litareture
Documents

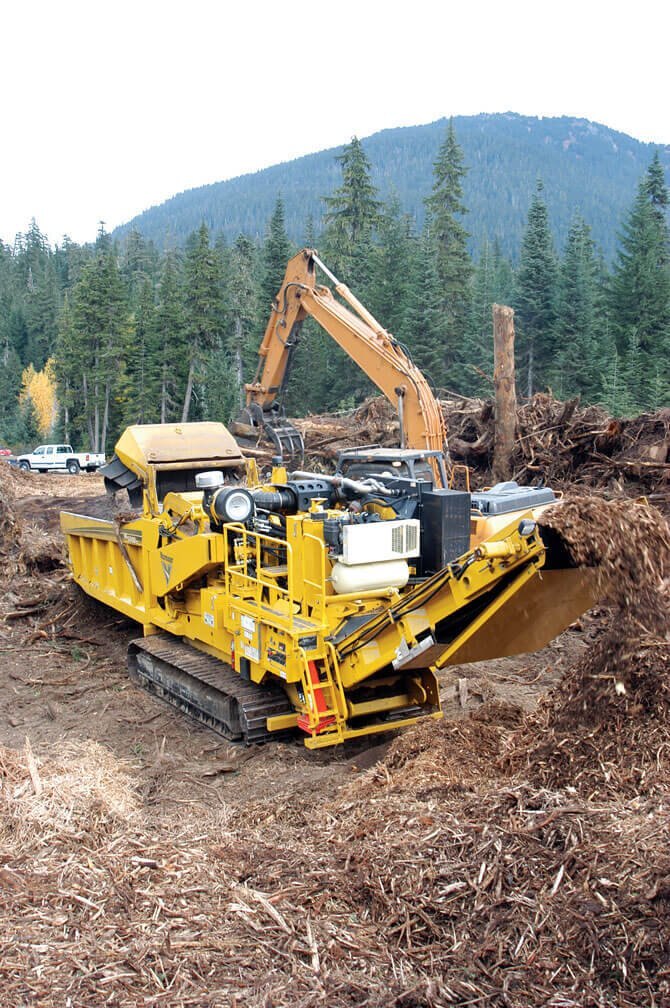

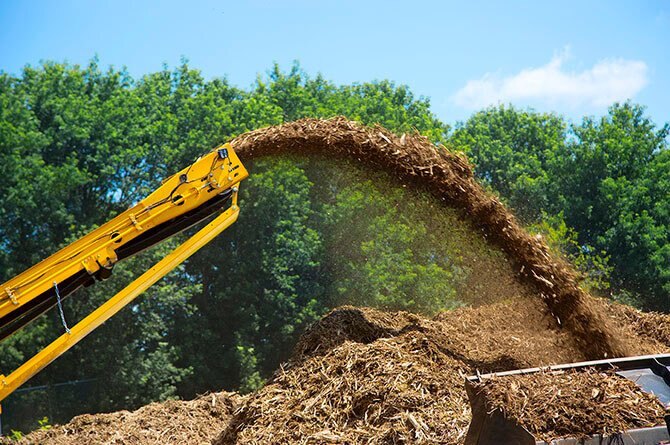

| Self-propels into the most remote jobsites on 20-in (50.8-cm) or 24-in (61-cm) double grouser track pads. High ground clearance and sealed rollers help keep material from building up in the track system. State-of-the-art wireless remote lets you operate the machine from up to 300 ft (91.4 m) away. An optional discharge blower system distributes processed wood over a large area or can fill a covered trailer from the rear end. |
Model
HG6000TX Horizontal Grinder
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Weight
75000 lbs (34019.4 kg)
Dolly Weight
9500 lbs (4309.1 kg)
Maximum Length (Operation)
54.5 ft (16.6 m)
Maximum Width Transport - With Dolly
9.8 ft (3 m)
Maximum Length - Transport With Dolly
45.8 ft (14 m)
Axle Weight - Engine Option 1 With Dolly
48910 lbs (22185.2 kg)
Tongue Weight - Engine Option 1 With Dolly
37590 lbs (17050.5 kg)
Pump Type
Fixed displacement, gear pump
System Type
Open-loop
Tank Capacity
18 gal (68.1 L)
Recommended Oil
VMF Gold
Filtration Method
Spin-on, pressure filter, B6 = 1000
Number Of Coolers
1
System Relief Pressure
260 psi (17.9 bar)
Pump Flow At Maximum RPM
12.4 gpm (46.9 L/min)
Width
48 in (121.9 cm)
Length
81.3 ft (24.8 m)
Load Height
14.5 ft (4.4 m)
Tip Diameter
36.4 in (92.5 cm)
Drum Diameter
5600 in (14224 cm)
Loading Height
7.6 ft (2.3 m)
Feed Table Depth
21 in (53.3 cm)
Feed Table Width
60 in (152.4 cm)
Drum Cutting Width
36.4 in (92.5 cm)
Tires - Option One
255/70R22.5 Duals
Drum Skin Thickness
62.4 in (158.5 cm)
Feed Table Capacity
4.8 cu yd (3.7 cu m)
Infeed Roller Width
56.4 in (143.2 cm)
Maximum Feed Height
32 in (81.3 cm)
Wheels - Option One
22.5"x 8.3" (57.2 cm x 21 cm) Hub piloted steel
Infeed Roller Weight
1000 lbs (453.6 kg)
Idler Roller Diameter
12 in (30.5 cm)
Infeed Roller Diameter
36.1 in (91.8 cm)
Bearing - Inner Race Diameter
4.3 in (10.9 cm)
Feed Table Length - Option One
15 ft (4.6 m)
Magnetic Drive Roller Diameter
12.8 in (32.5 cm)
Standard Drive Roller Diameter
12.8 in (32.5 cm)
Litareture
| Name | Link |
| OEM Brochure | Download |
