ID # 37838067
Vermeer CT616 Compost Turner
Overview

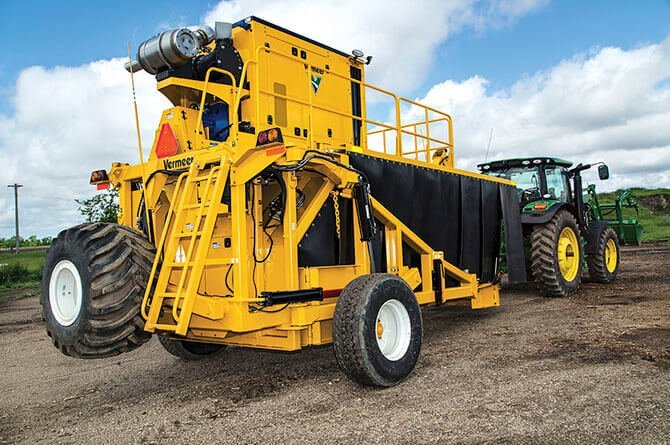

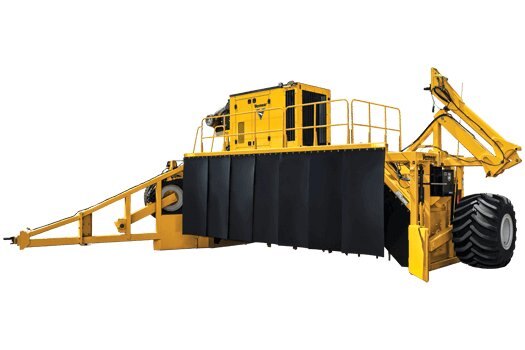

The CT616 is a towable, self-powered unit that is able to turn a windrow 6-ft (1.8-m) high by 16-ft (4.9-m) wide. It features a 40-in (101.6-cm) tip-to-tip drum diameter, and its 275-hp (205-kW) engine offers a maximum turning capacity of 3000 t (2721.6 mT) per hour. Heavy-duty construction and added features like a hydraulic actuated clutch allows for years of service. An aggressive flail design assures complete aeration and mixing.
Specifications
Model
CT616 Compost Turner
engine
Fan
Sucker with optional reversing fan
Air Cleaner
Donaldson Powercore with secondary filter
Clutch Type
PT Tech Hydraulic
Make And Model
John Deere RG6060HF Power Tech Tier 4F (Stage IV)
Recommended Oil
JD Plus 50 II
Torque (Maximum)
903 ft-lb (1224.3 Nm)
Fuel Tank Capacity
90 gal (340.7 L)
Max Fuel Consumption
13.9 gph (52.6 lph)
Oil Volume With Filter
28.5 qt (27 L)
Air To Boil Temperature
150 deg
Clutch Drive Engagement
PT Tech Controller
Gross Horsepower (Maximum)
275 hp (205.1 kw)
Maximum Angle Of Continuous Operation
20 deg
Coolant Capacity (Engine And Radiator)
12 gal (45.4 L)
operational
Hitch Frame
6"x6"x.38" (15.2 cm x 15.2 cm x 1 cm)
Input Shaft
3.6 in (9 cm)
Drum Cylinder
.75" (1.9 cm) thick x 15.9' (4.8 m) long x 16" (40.6 cm) diameter
Maximum Speed
20 mph (32.2 km/h)
Tank Capacity
13 gal (49.2 L)
Windrow Width
16 ft (4.9 m)
Length Of Drum
190 in (482.6 cm)
Windrow Height
6 ft (1.8 m)

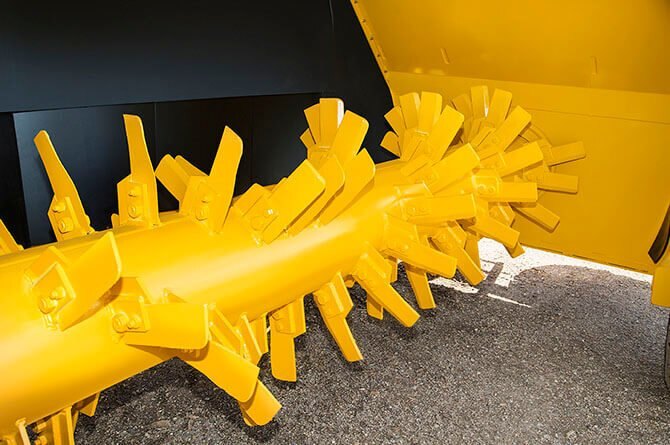

Flail Dimensions
0.5 " x 4 " x 12 " (1.3 cm x 10.2 cm x 30.5 cm)
Minimum Horsepower
60 hp (44.7 kw)
Drum Shaft Diameter
3.6 in (9 cm)
Drum Wall Thickness
.6 in (1.6 cm)
Maximum Towing Speed
20 mph (32.2 km/h)
Minimum Ground Speed
44 ft/min (13.4 m/min)
Minimum Tow Vehicle Weight
11900 lbs (5397.8 kg)
Double Roller Main Drum Bearings
3.6 in (9 cm)
Drum Diameter (including Flails)
40 in (101.6 cm)
Rubber Skirting Curtains (thickness)
.4 in (1 cm)
features & options
Features & Options
Options
Hard-surfacing Flails - Yes Loader Hitch - Yes Low Speed Transport Package - Yes Spray Bar Attachment - Yes Stainless Steel Processing Tunnel - Yes Work Lights - 2 LED
litareture
Documents
Model
CT616 Compost Turner
