New Inventory
ID # 37838052
Vermeer T1155III Pipeline Trencher
Call for Price
Overview
Specifications
dimensions
operational
features & options
litareture
Documents

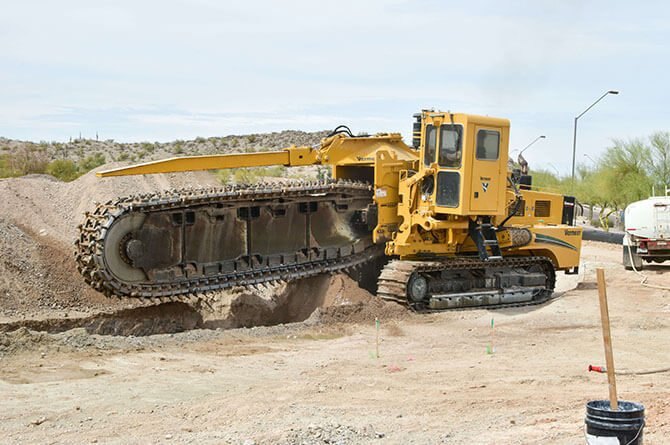

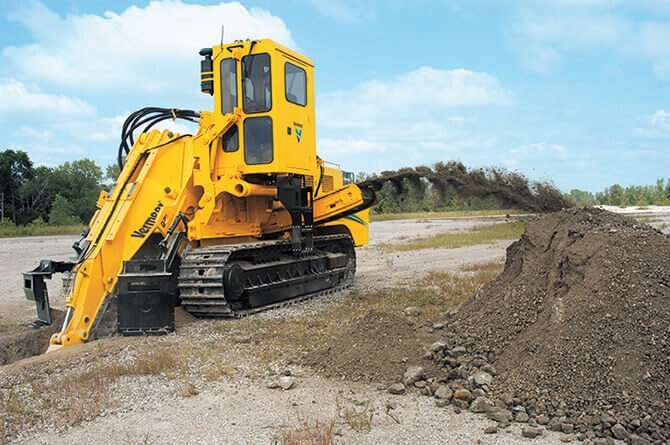

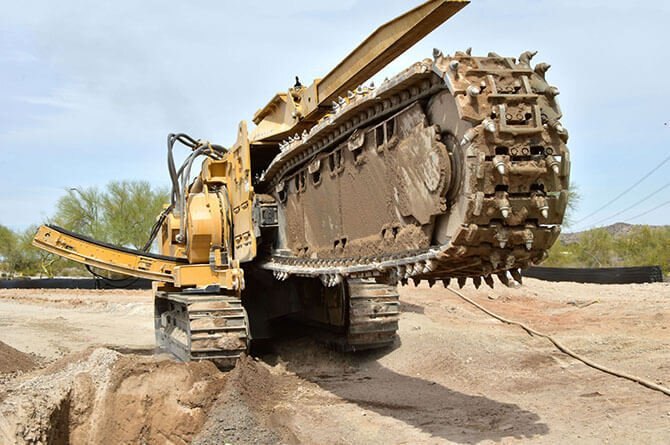

| The T1155 Commander® 3 trencher is the perfect trenching machine to penetrate rock. It's the ideal combination of heavy-duty construction, 540 hp (403 kW) from the turbocharged Caterpillar C15 ACERT Tier 3 or Tier 4 Final engine and sophisticated electronics. |
Model
T1155III Pipeline Trencher
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Height Range
146" (370.8 cm)
Width Ranges
118"-120" (292.1 cm - 304.8 cm)
Approach Angle
16 deg
Length With 50" (127 Cm) End Idler And 8 Ft (2.44 M) Boom
37.3 ft (11.4 m)
Length With 50" (127 Cm) End Idler And 10 Ft (3.05 M) Boom
39.8 ft (12.1 m)
Length With 50" (127 Cm) End Idler And 12 Ft (3.66 M) Boom
42.3 ft (12.9 m)
Length With 50" (127 Cm) End Idler And 14 Ft (4.27 M) Boom (with Restraint Bar)
43 ft (13.1 m)
Length With 50" (127 Cm) End Idler And 16 Ft (4.88 M) Boom (with Restraint Bar)
45.3 ft (13.8 m)
Oil Type
Vermeer HyPower 68 or Vermeer HyPower 100
Pump Type
pressure-and-flow-compensated (load-sensing)
Belt Width
30 in (76.2 cm)
Track Length
177.5 in (450.9 cm)
Control System
TEC Plus with SmartTEC
Conveyor Style
Curved
Conveyor Length
168" or 228" (426.7 or 579.1 cm)
Pressure Setting
2500 psi (172.4 bar)
Track Drive Type
Dual path hydrostatic with planetary transmission
Oil Tank Capacity
152 gal (575.4 L)
Discharge Height Range
72" or 86" (182.9 cm or 218.4 cm)
Track Pad Width Ranges
26" (66 cm), 28"(71.1 cm), 30" (76.2 cm)
Ground Pressure Maximum
17.3 psi (119.3 kPa)
Ground Pressure Minimum
13 psi (89.6 kPa)
Pump Flow At Maximum RPM
27.9 gpm (105.6 L/min)
Conveyor Belt Speed Range
0-1070 fpm (0-326 m/min)
Maximum Ground Speed - Low
50 ft/min (15.2 m/min)
Maximum Ground Speed - High
133 ft/min (40.5 m/min)
Parking And Emergency Brake
spring-applied, hydraulic release, wet disc brake
Conveyor Shift Distance Range
65" and 125" (165.1 cm and 317.5 cm)
Litareture
| Name | Link |
| OEM Brochure | Download |
Documents
63e5b346c33ea2213502d105.pdf Model
T1155III Pipeline Trencher
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Quantity
1
