New Inventory
ID # 37838049

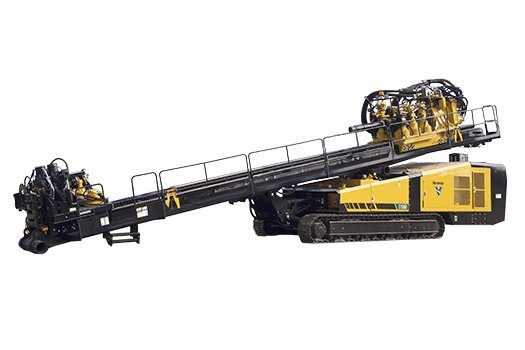

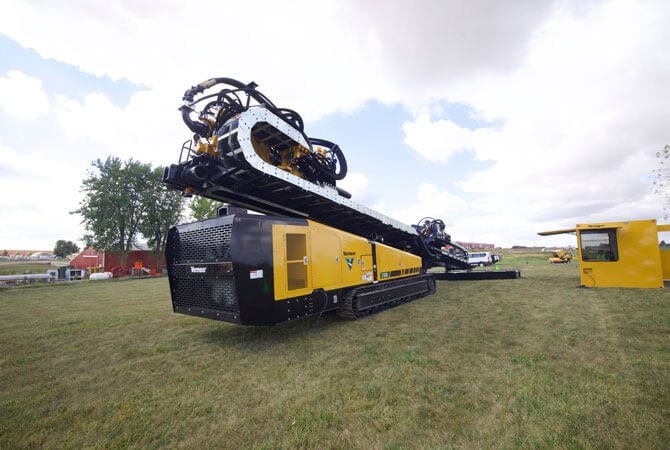

Vermeer D550 HDD
Call for Price
Overview
Specifications
dimensions
engine
operational
features & options
litareture
Documents

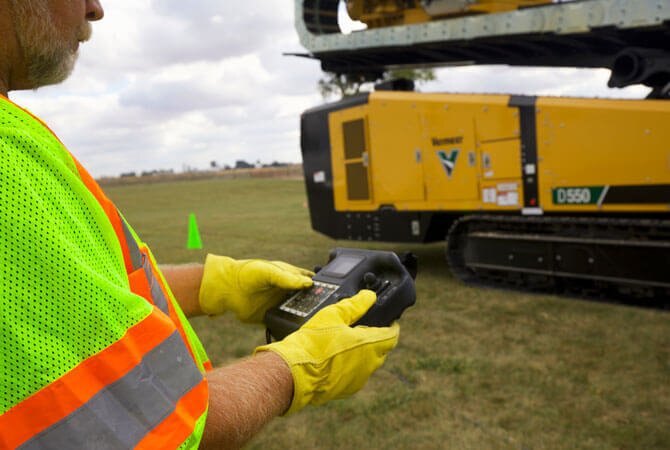

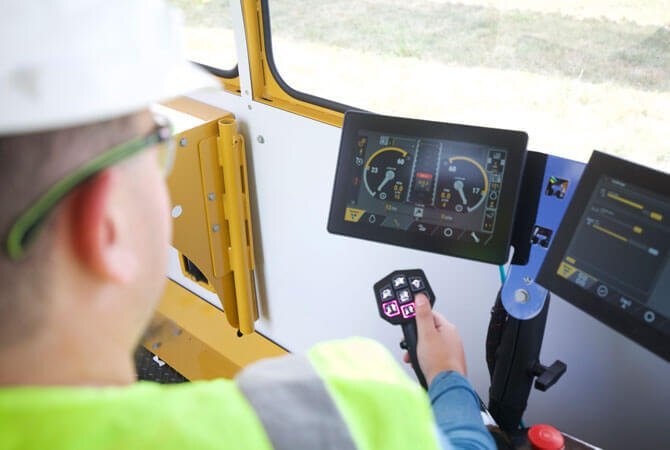

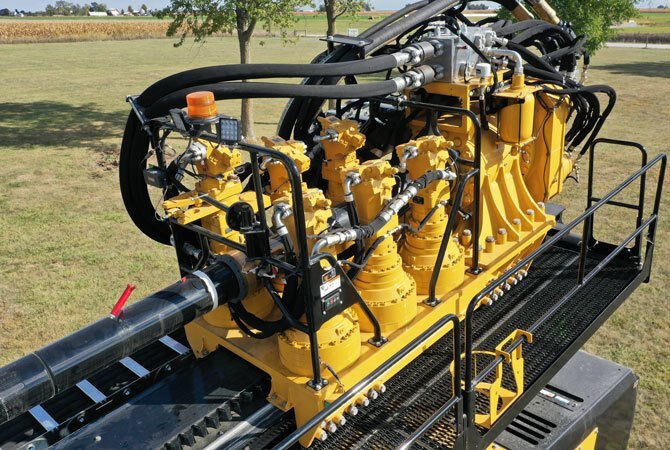

| The Vermeer D550 horizontal directional drill leads the 550,000-lb (249,475.8-kg) drill class with its impressive 100,000 ft-lb (135,581.8 Nm) of torque with a low operation sound level. This newest generation of drills offers advanced telematics and smart onboard technology. These give your operator and remote personnel real-time drilling and diagnostic information to maximize operating efficiency and productivity. This rig features a hydraulic transmission that delivers a steady, ultra-slow speed performance for working in challenging hard rock. |
Model
D550 HDD
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Weight
105000 lbs (47627.2 kg)
Fuel Tank
163 gal (617 L)
Hydraulic Tank
210 gal (794.9 L)
Hydraulic System
300 gal (1135.6 L)
Angle Of Approach
12 deg
Width (Minimum Transport)
100 in (254 cm)
Height (Minimum Transport)
138 in (350.5 cm)
Length (Minimum Transport)
651 in (1653.5 cm)
Fuel Type
Ultra low sulfur diesel
Aspiration
Turbocharged aftercooled
Make And Model
Caterpillar C18 ACERT
Gross Horsepower
599 hp (446.7 kw)
Maximum Engine RPM
1800 rpm
Max Fuel Consumption
29.7 gph (112.4 lph)
Thrust
550000 lbs (2446.5 kN)
Pullback
550000 lbs (2446.5 kN)
Rotation
360 deg
Maximum Reach
800.1 in (2032.3 cm)
Optional Crane
Drill Rack Angle
24 deg
Automated Rod Loader
Semi-automated
Minimum Bore Diameter
6.5 in (16.5 cm)
Rear Base Anchor Length
Maximum Lifting Capacity
14000 lbs (6350.3 kg)
Maximum Spindle Speed At Max Engine RPM
75 rpm
Maximum Carriage Speed At Maximum Engine RPM
105 ft/min (32 m/min)
Maximum Ground Drive Speed At Maximum Engine RPM
2.2 mph (3.5 km/h)
Maximum Lifting Capacity - Boom Extended/Max Reach
2600 lbs (1179.3 kg)
Maximum Spindle Torque (Low At Maximum Engine RPM)
100000 ft-lb (135582 Nm)
Maximum Spindle Torque (High At Maximum Engine RPM)
38000 ft-lb (51521.2 Nm)
Maximum Spindle Torque (Medium At Maximum Engine RPM)
37500 ft-lb (50843.3 Nm)
Litareture
| Name | Link |
| OEM Brochure | Download |
Documents
63e5b33b6be72f0a6f7458d7.pdf Model
D550 HDD
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Quantity
1
