New Inventory
ID # 37838041
Vermeer SA400 Tier 4i (Stage IIIB) High-Pressure Mud Pump
Call for Price
Overview
Specifications
features & options
dimensions
drivetrain
engine
operational
literature
Documents

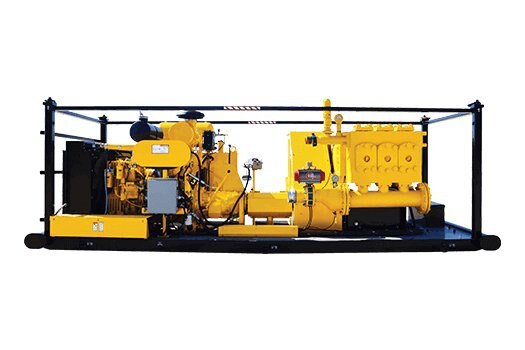

| The SA400 is a high-pressure mud pump powered by a Tier 4i (EU Stage IIIB) or Tier 3 (EU Stage IIIA) engine. It features an engine-mounted lubrication pump to provide constant flow through the system at any pump speed. During drill rod makeup/breakout, a clutch with continuous duty throw-out bearing allows extended clutch disengagement and a suction inlet valve suspends charged flow. |
Model
SA400 Tier 4i (Stage IIIB) High-Pressure Mud Pump
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
Width
91.1 in (231.4 cm)
Height
78 in (198.1 cm)
Length
19.1 ft (5.8 m)
Weight
26600 lbs (12065.6 kg)
Belt
8V 12-groove

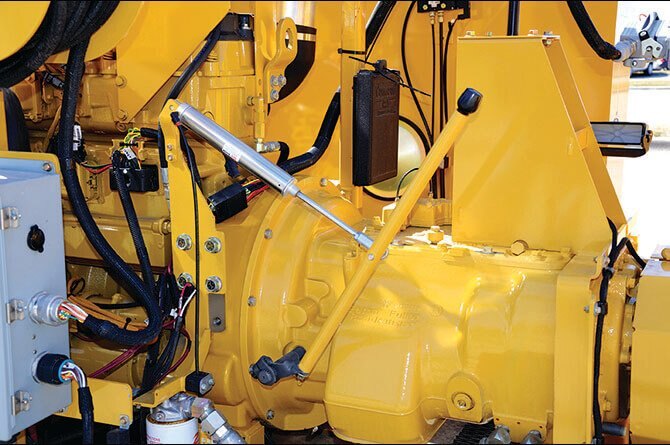

Clutch
Dual plate, Spring-actuated with pneumatic assist
Number Of Gears
4
Position
Onboard, engine bay
Fuel Type
Diesel
Rated Power
350 hp (261 kw)
Make And Model
C9.3 ACERT IOPU
Rated Engine RPM
1800
Electrical System
24VDC
Fuel Tank Capacity
191 gal (723 L)
EPA Certification Family
Tier 4i (Stage IIIB)
Remote
Tethered control box reaches 120 ' (36.6 m)
Onboard
Open control station
Pump Type
Shurflo centrifugal pump
Compressor
Caterpillar
System Type
Standalone, open skid
Remote Lockout

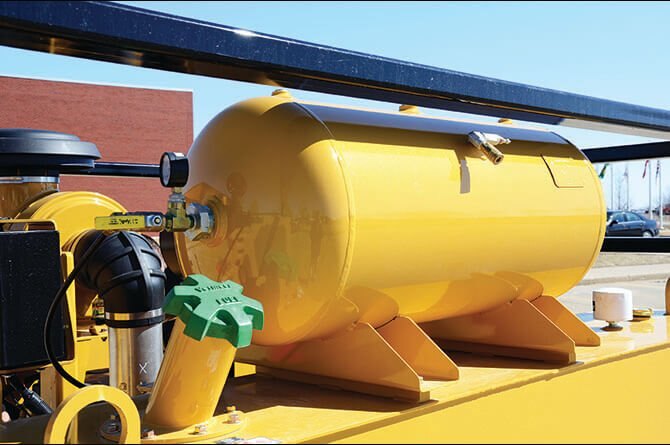

Air Tank Volume
30 gal (113.6 L)
Piston Diameter
6 in (15.2 cm)
Power End Driver
Engine aux pad
High Pressure Pump
Weatherford T425, triplex piston pump
Hydraulic Reservoir
Mud pump power end (internal to mud pump)
Relief Valve Setting
1250 psi (86.2 bar)
Fluid End Power Driver
24VDC
Compressor Mounting Type
Engine aux pad
Hydraulic Reservoir Capacity
49 gal (185.5 L)
Maximum Flow Rate At Maximum Efficiency
550 gpm (2082 L/min)
Minimum Flow Rate At Maximum Efficiency
78 gpm (295.3 L/min)
Literature
| Name | Link |
| OEM Brochure | Download |
sa400-high-pressure-mud-pump-spec-sheet.pdf Model
