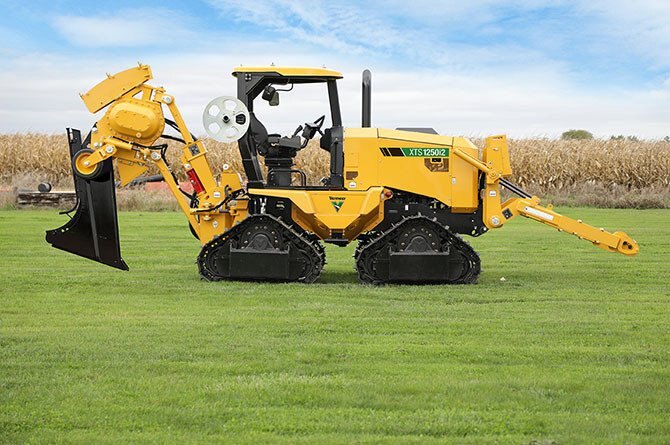

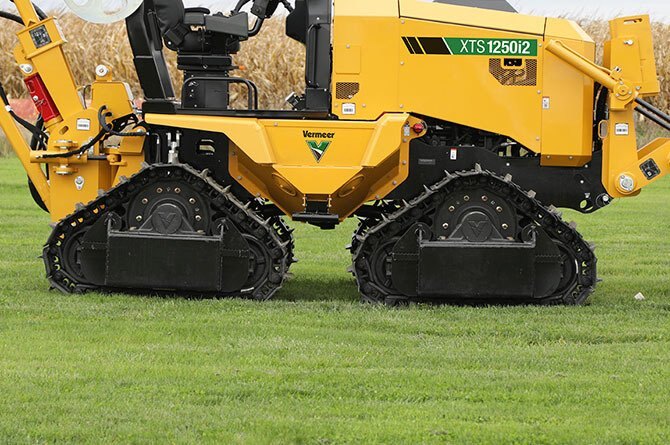

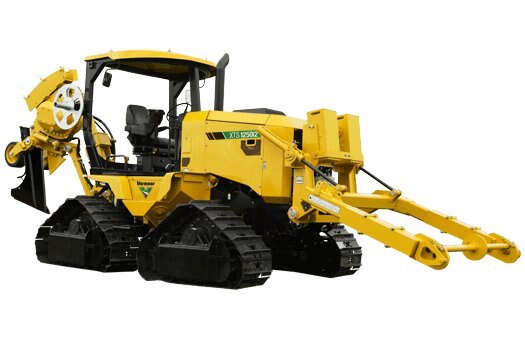

Vermeer XTS1250i2 Ride-on Tractor

  • Vermeer XTS1250i2 Ride on Tractor
  • Vermeer XTS1250i2 Ride on Tractor
  • Vermeer XTS1250i2 Ride on Tractor
  • Vermeer XTS1250i2 Ride on Tractor
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The XTS1250 has added intelligent features such as onboard diagnostics and other productivity features including EcoIdle™ engine control system and Productivity Zone can help you through harsh ground conditions and tough installs. Plus, with an optional climate-controlled cab for operator comfort, and an optional remote control to help perform maintenance, as well as trailer loading and unloading, the XTS1250i2 helps create a more comfortable, convenient and productive jobsite.
Specifications
Model
XTS1250i2 Ride-on Tractor
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
dimensions
Fuel Tank
44 gal (166.6 L)
Hydraulic Tank
31.6 gal (119.6 L)
Hydraulic System
35.6 gal (134.8 L)
Ground Clearance (tracks)
20.5 in (52.1 cm)
Height (With Four-Post ROPS)
122 in (309.9 cm)
Width (basic Tractor, Tracks)
100.5 in (255.3 cm)
Height (basic Tractor, Tracks)
122 in (309.9 cm)
Length (basic Tractor, Tracks)
152 in (386.1 cm)
Weight - Tractor With Open Cab
20215 lbs (9169.4 kg)
Engine Cooling System (With Cab)
4.9 gal (18.5 L)
Weight - Tractor With Closed Cab
21165 lbs (9600.3 kg)
Engine Cooling System (Without Cab)
4.2 gal (15.8 L)
Angle Of Approach (basic Tractor, Tracks)
20 deg
Roll Over Protection Structure (Open Cab)
40000 lbs (18143.7 kg)
Roll Over Protection Structure (Closed Cab)
40000 lbs (18143.7 kg)
operational
Attachment Pump Relief
5510 psi (379.9 bar)
Maximum Forward Creep Speed (low)
3.9 mph (6.3 km/h)
Maximum Reverse Creep Speed (low)
3.9 mph (6.3 km/h)
Ground Pressure (basic Tractor Only)
14.7 psi (1 bar)
Maximum Forward Transport Speed (high)
7.1 mph (11.4 km/h)
Maximum Reverse Transport Speed (high)
7.1 mph (11.4 km/h)
Attachment Pump Gpm At Maximum Engine RPM
61.8 gpm (233.9 L/min)
Auxiliary Pump Flow At Maximum Engine RPM
17.6 gpm
Ground Drive Pump Gpm At Maximum Engine RPM
36.7 gpm (138.9 L/min)
Outside Turning Diameter (Steel Tracks, Front Steer Only)
57.5 ft (17.5 m)
Outside Turning Diameter (Steel Tracks, Front And Rear Steer Only)
36.7 ft (11.2 m)
features & options

Features

LED Lights - Interior - LED, Exterior - LED
Parking Brake Type - Spring applied hydraulic release
Power Port - 12-Volt (2)

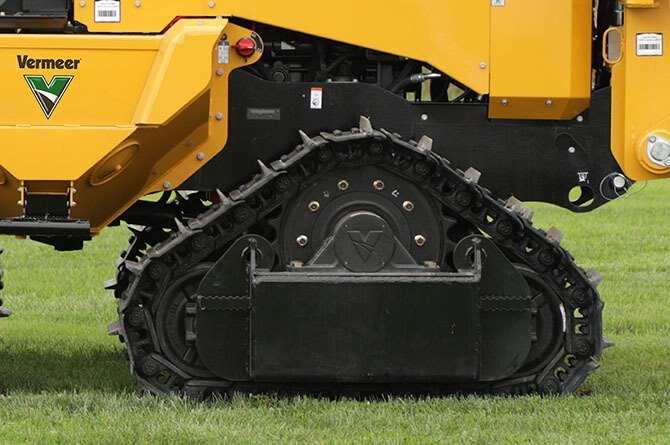

Quad Tracks - Four independent steel tracks bolt on to existing axle
Radio Standard - 2 speakers
Service Brake Type - Hydrostatic

Options

Air Cleaner - Donaldson Power Core
Air Cleaner - Donsaldson Power Core
Aspiration - Turbo Charged
Cooling Method - Liquid
Displacement - 220 cu-in (3.6 L)
EPA Certification Family - Tier 3 (Stage III)
EPA Certification Family - Tier 4 (Stage IV)
Fuel Type - Ultra Low Sulfur Diesel
Gross Horsepower (Maximum) - 127 hp (94.7 kw)
Gross Horsepower - 127 hp (94.7 kw)
Idle Speed - 1000 rpm
Make and Model - Deutz TCD 3.6L
Make and Model - Duetz TCD 3.6L
Max Fuel Consumption - 6.9 gph (26.2 lph)
Maximum Engine RPM - 2300 rpm
Maximum Operating Angle (Fore/Aft)* - 40 deg
Maximum Operating Angle (Left/Right)* - 40 deg
Maximum Torque - 369 ft-lb (500.3 Nm)
Net Horsepower - 124 hp (92.5 kw)
Number of Cylinders - 4
Rated RPM - 2300 rpm
Run Time at Full Load (hours) - 6.3
