ID # 37837948

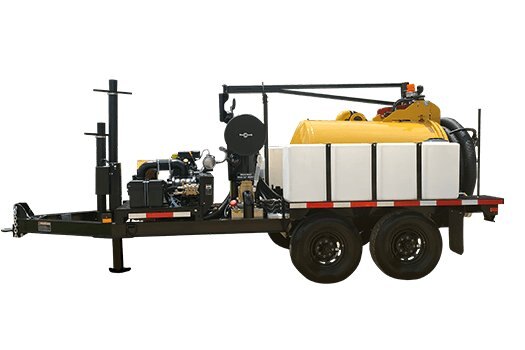

Vermeer CV SGT Vacuum Excavator

  • Vermeer CV SGT Vacuum Excavator
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The competitive vac (CV) series is a low-profile trailer vac that keeps the components of the unit accessible. It is hand built from the ground up in the U.S. Manufactured on a durable, low-profile trailer assembly, this series offers high performance at a great value.
Specifications
Model
CV SGT Vacuum Excavator
Category Name
Equipment
Sale Type
New
Manufacturer
Vermeer
engine
Horsepower
38 hp (28.3 kW)
Make And Model
Kohler EFI Gas
Fuel Tank Capacity Or Type
15 gal (56.8 L)
operational
Reach
15 ft (4.6 m)
Width
97 in (246 cm)
Gauges
Digital
Height
89 in (226 cm)
Length
230 in (584 cm)
Vacuum
580 cfm (16 cubic m/min)
Weight
400 lbs (181 kg)
Air Flow
185 cfm
Controls
Curbside
Movement
300 deg
Hose Length
30 ft (9 m)
Air Pressure
160 psi (11 bar)
Empty Weight
4800 lbs (2177 kg)
Air Hose Size
1 in (2.5 cm)
Compatibility
500-gal (1892.7-L) spoil tank option
Trailer Axles
Tandem
Remote Control
Wireless
Vacuum Mercury
16 inHg (0.6 bar)
Water Capacity
200 gal (757 L)
Air Hose Length
50 ft (15.2 m)
Number Of Tanks
2
Type Of Filters
Cartridge filter 0.5 microns
Low Water Shutoff
Electric
High Pressure Pump
3000 psi (206.8 bar)
Vacuum Blower Type
PD blower
Hose Width/diameter
3 in (7.6 cm)
Spoil Tank Capacity
500 gal (1892.7 L)
High Pressure Hose Length
50 ft (15 m)
High Pressure Pump Flow Rate
4 gpm (15.1 L/min)
Gross Vehicle Weight Rating (GVWR)
9995 lbs (4534 kg)
options
Options
Compatibility - 1200-gal (4542.5-L) spoil tank option
Compatibility - 800-gal (3028.3-L) spoil tank option
Door type - Hydraulic
Empty weight - 5350 lbs (2427 kg)
Empty weight - 7350 in (3334 kg)
Gross Vehicle Weight Rating (GVWR) - 14000 lbs (6350 kg)
Gross Vehicle Weight Rating (GVWR) - 24000 lbs (10886 kg)
Height - 111 in (282 cm)
Height - 89 in (226 cm)
High Pressure Pump - 3000 psi (206.8 bar)
High pressure hose length - 50 ft (15 m)
High pressure pump flow rate - 4 gpm (15.1 L/min)
Hydraulic jack - Optional
Length - 256 in (650 cm)
Length - 266 in (676 cm)
Low Water Shutoff - Electric
Number of Tanks - 2
Recirculation kit - Optional
Reverse Pressure - Standard
Spoil tank capacity - 1200 gal (4542.5 L)
Spoil tank capacity - 800 gal (3028.3 L)
Strong arm - Optional
Tank Lift Type - Hydraulic
Trailer axles - (2) 12000 lbs (5443 kg)
Trailer axles - (2) 7000 lbs (3175 kg)
Water capacity - 300 gal (1136 L)
Water capacity - 400 gal (1514 L)
Width - 102 in (259 cm)
Width - 92 in (234 cm)
literature
Name Link
OEM Brochure Download
