The versatile rotary harrow for optimum seedbed preparation

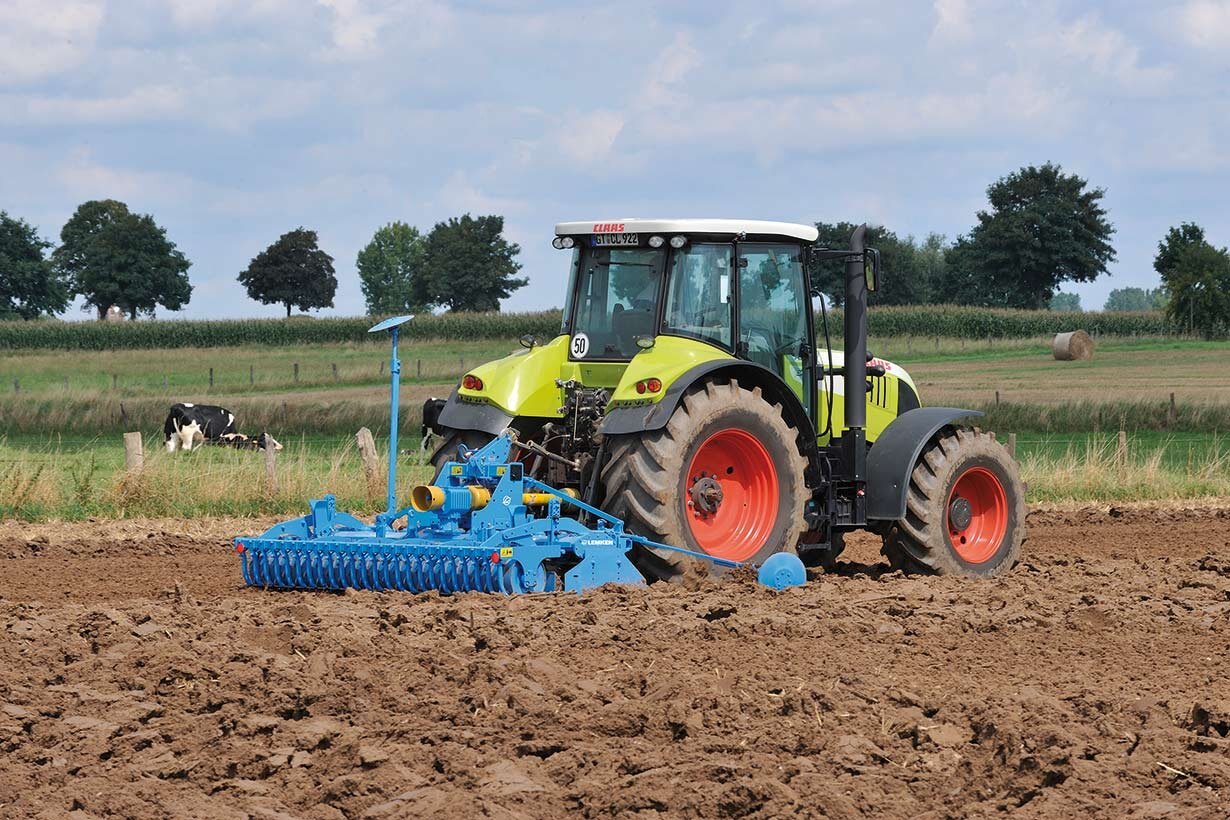

The Zirkon 8 is the rotary harrow model for tractors with 60 to 175 HP. Various additional equipment options enable to adapt the rotary harrow to suit your operational conditions in seedbed preparation.
Stable & dirt resistant

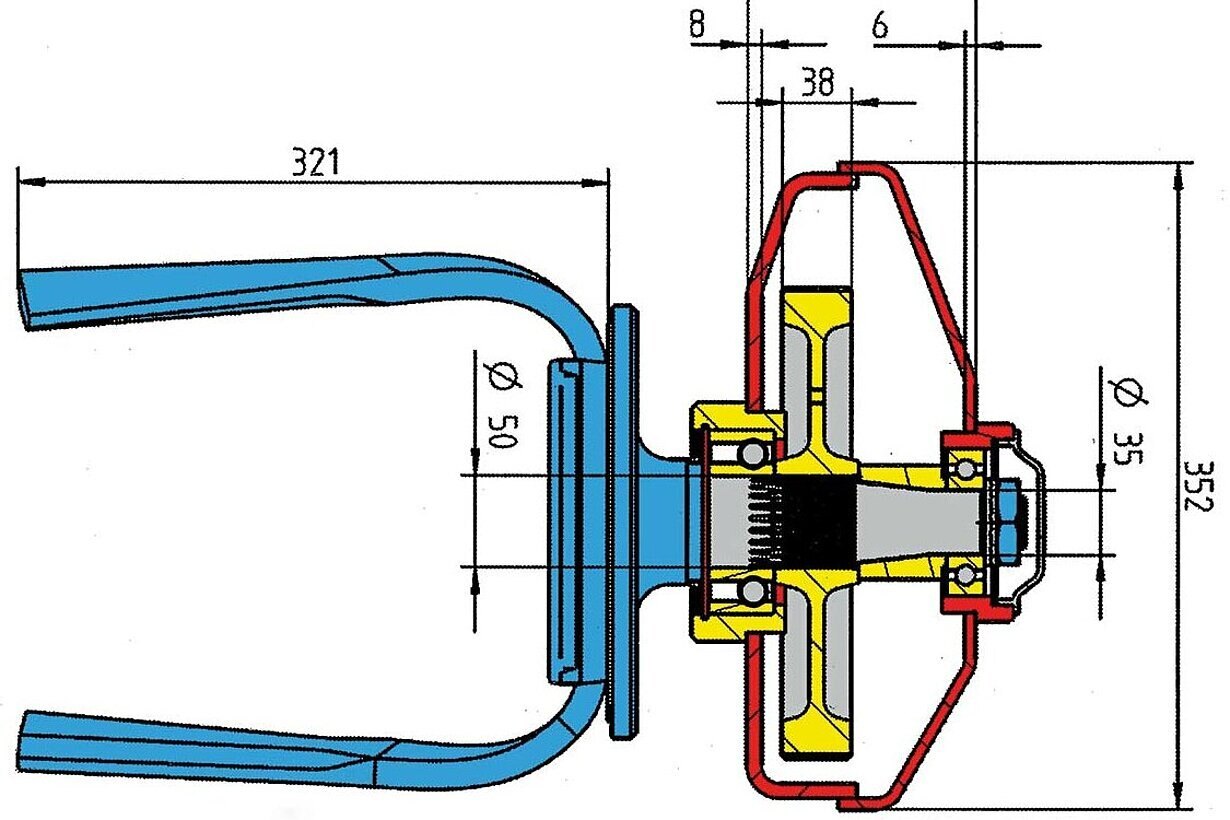

The sloping pan profile increases overall strength, provides more space for rotor and bearings, and encourages dirt to fall away.
Base (8 mm)
Cover (6 mm)
Welded firmly together
Guarantee a long operational life

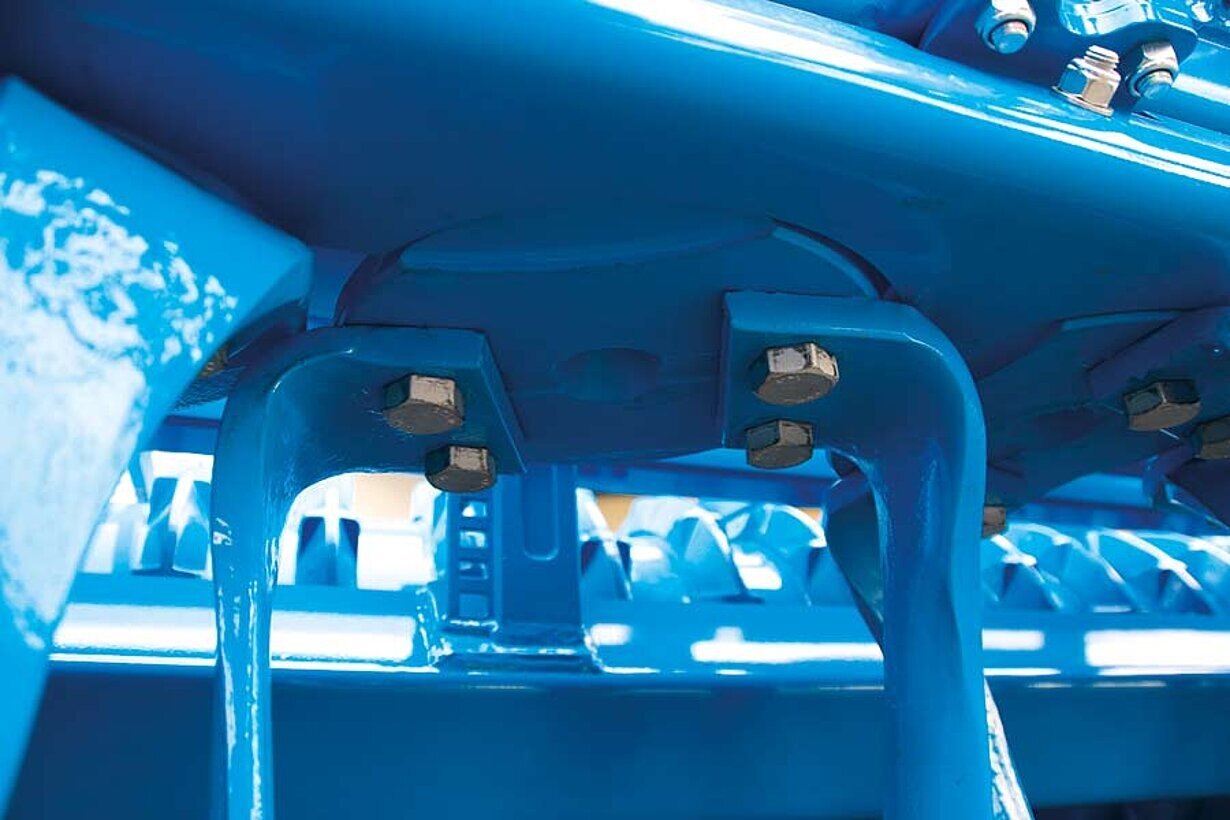

The right tine
Bolt-on tines with a length of 300 mm as standard
Quick-change tines with a length of 320 mm are an option
Cleverly combined

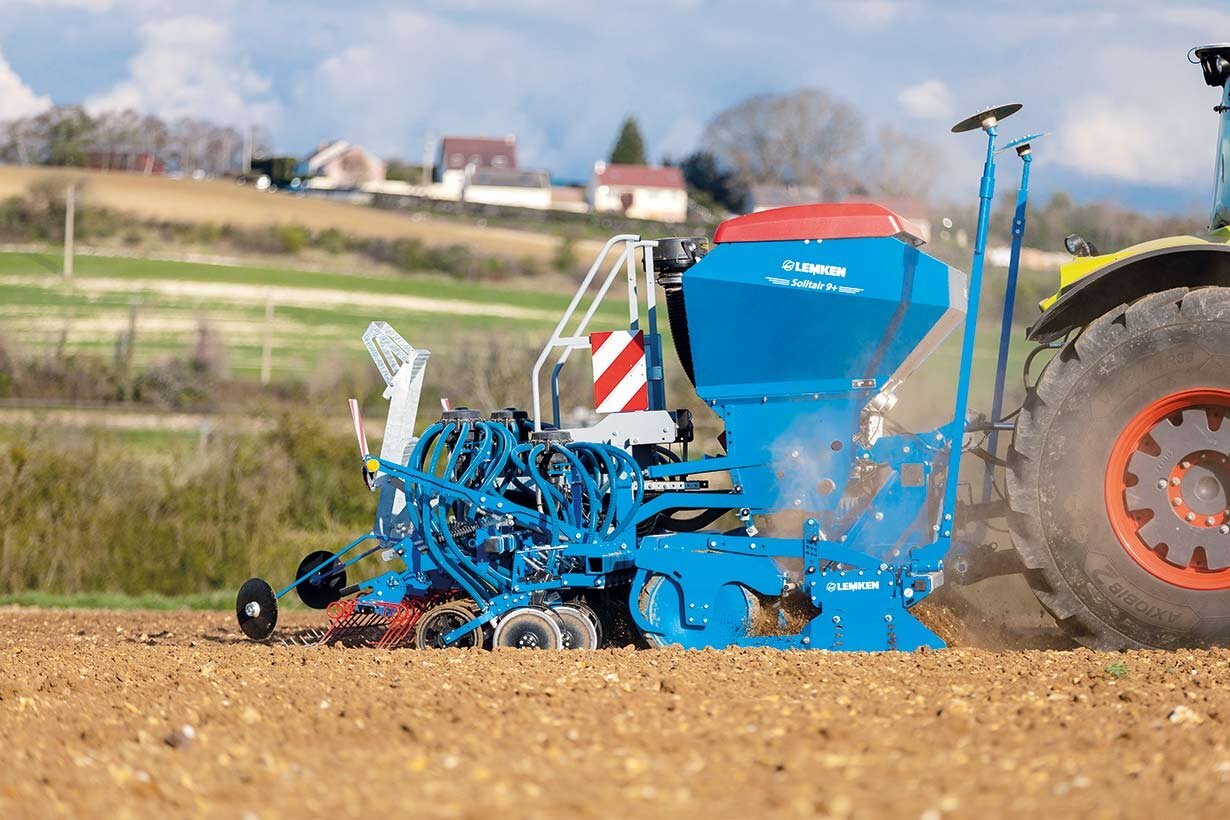

The Zirkon 8 can be combined with the Saphir or Solitair seed drills.

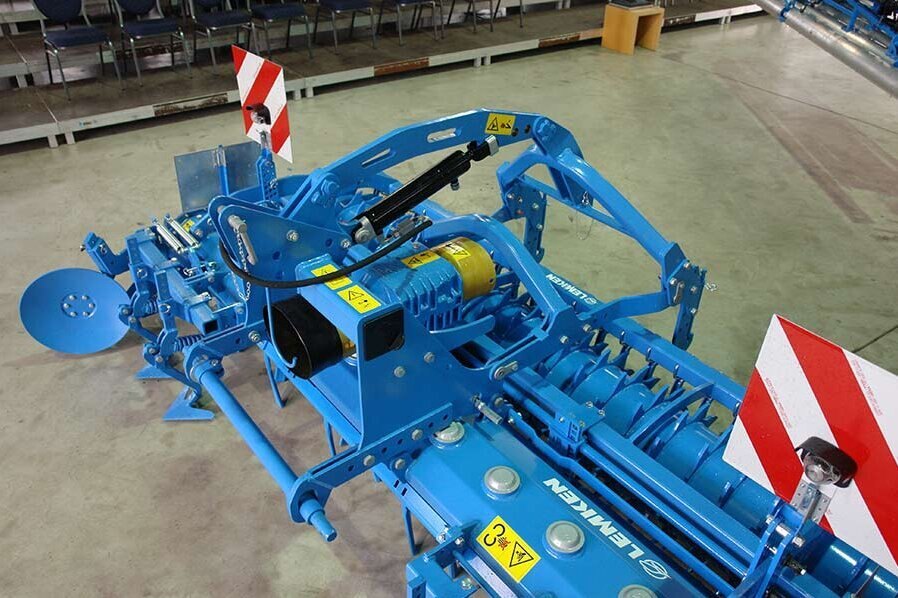

A three-point linkage for attachment of further equipment combinations is available as an option.
You have the choice

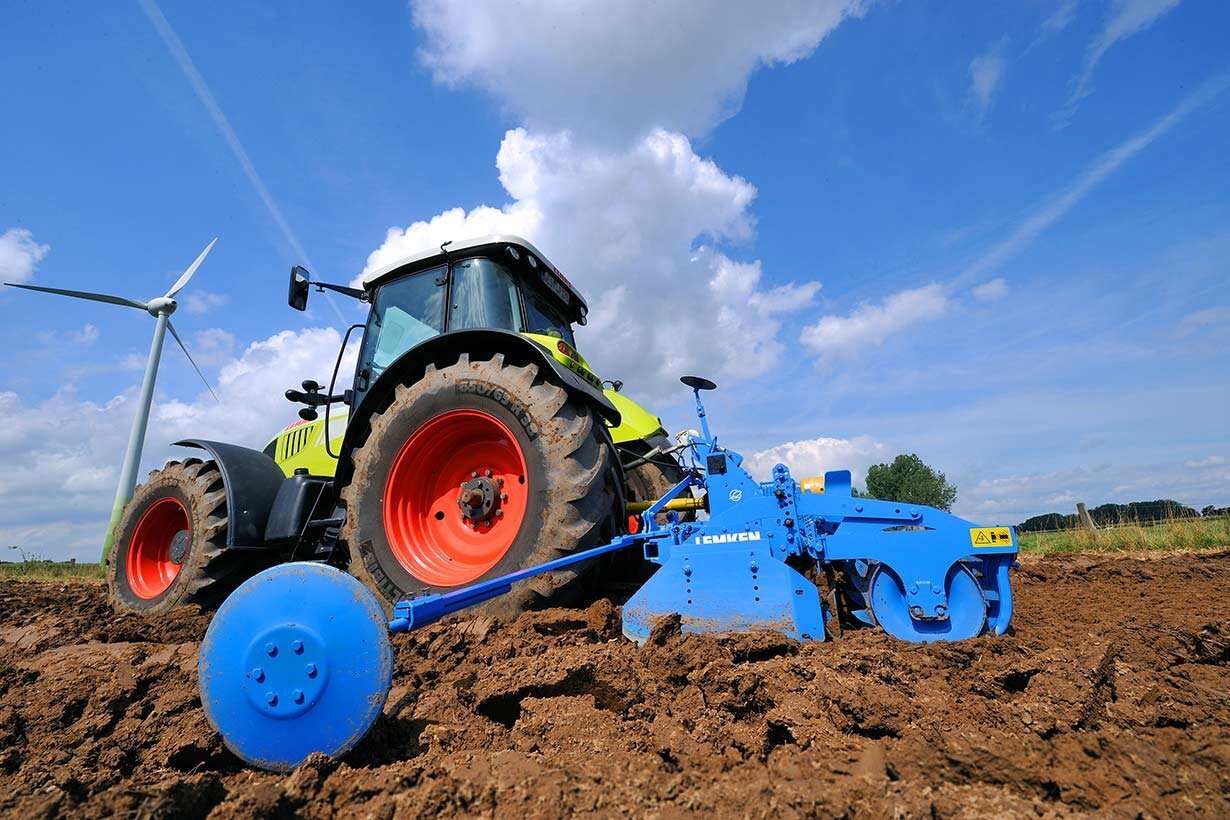

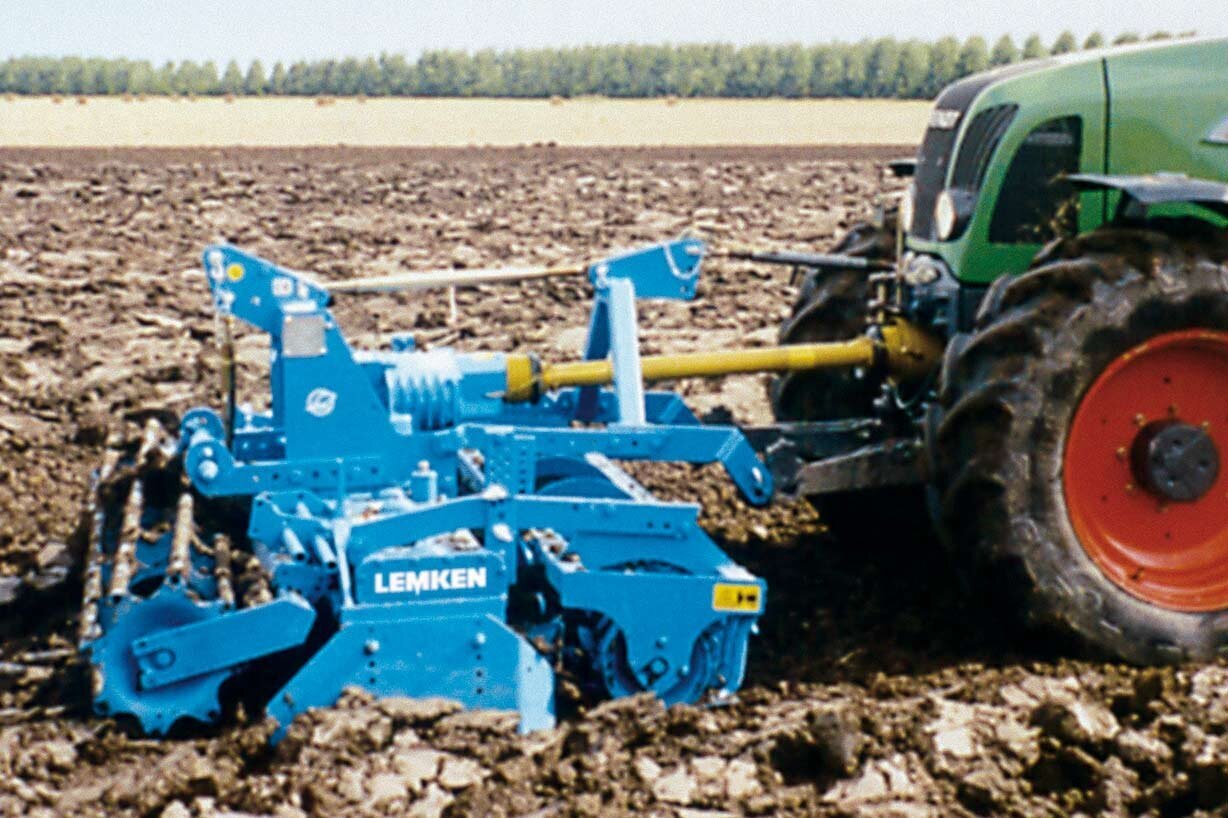

The Zirkon 8 can be specified for use at the front or rear of the tractor.
How intense should it be?\

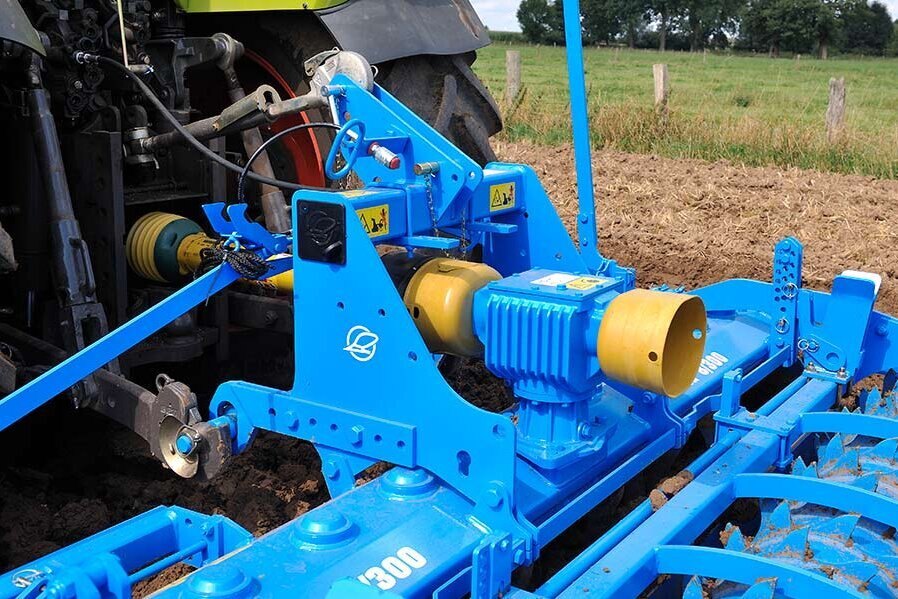

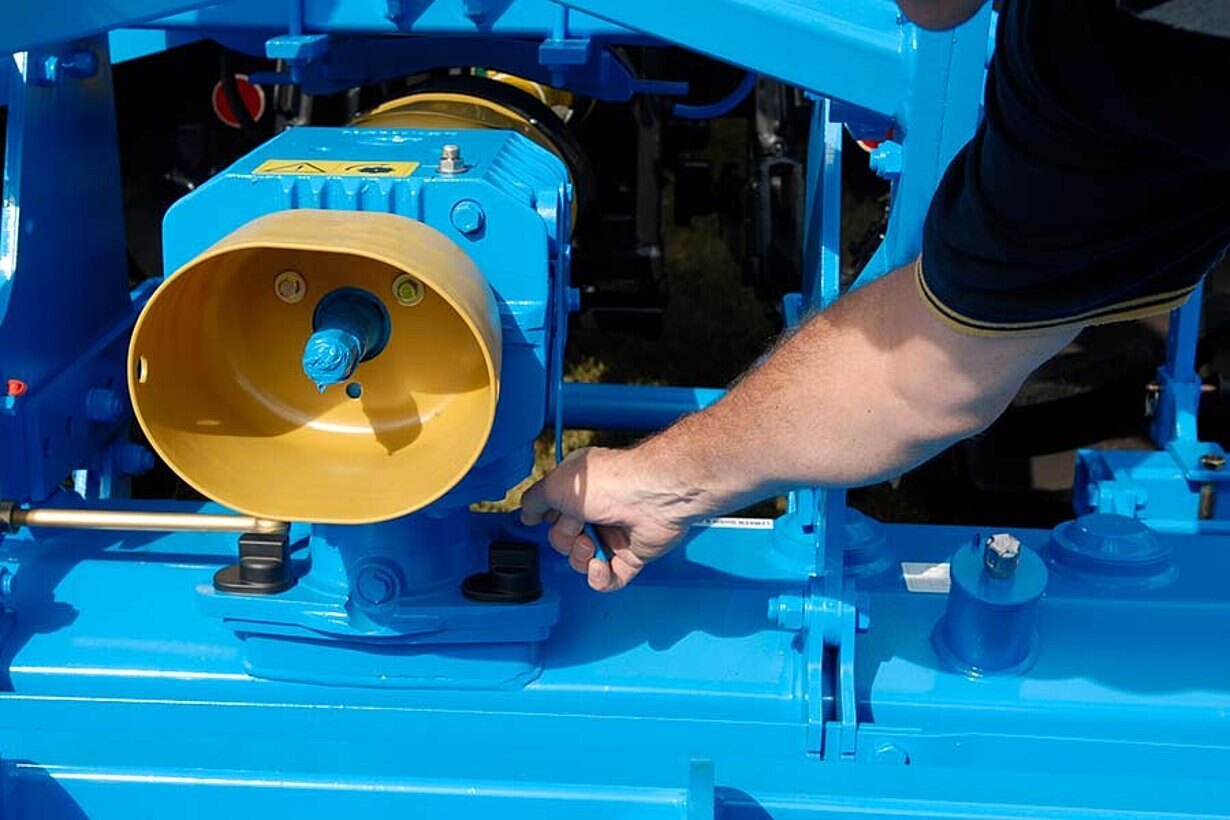

The DUAL-Shift transmission (option) allows selection of rotor speed from 300 to 400 revolutions per minute by means of a simple gear lever and changing their rotational direction by shifting the transmission from „Grip“ to „Drag“ according to requirements.
Simple setup

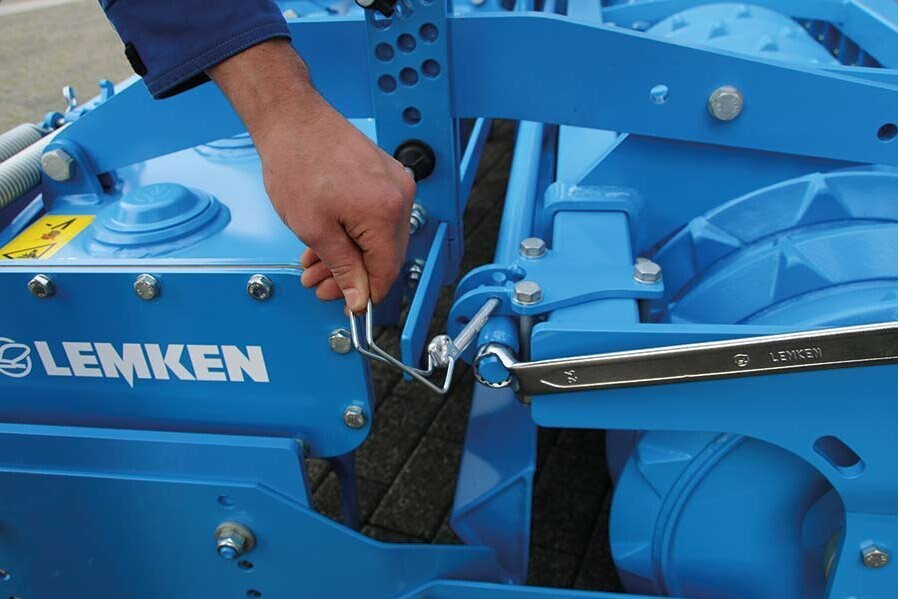

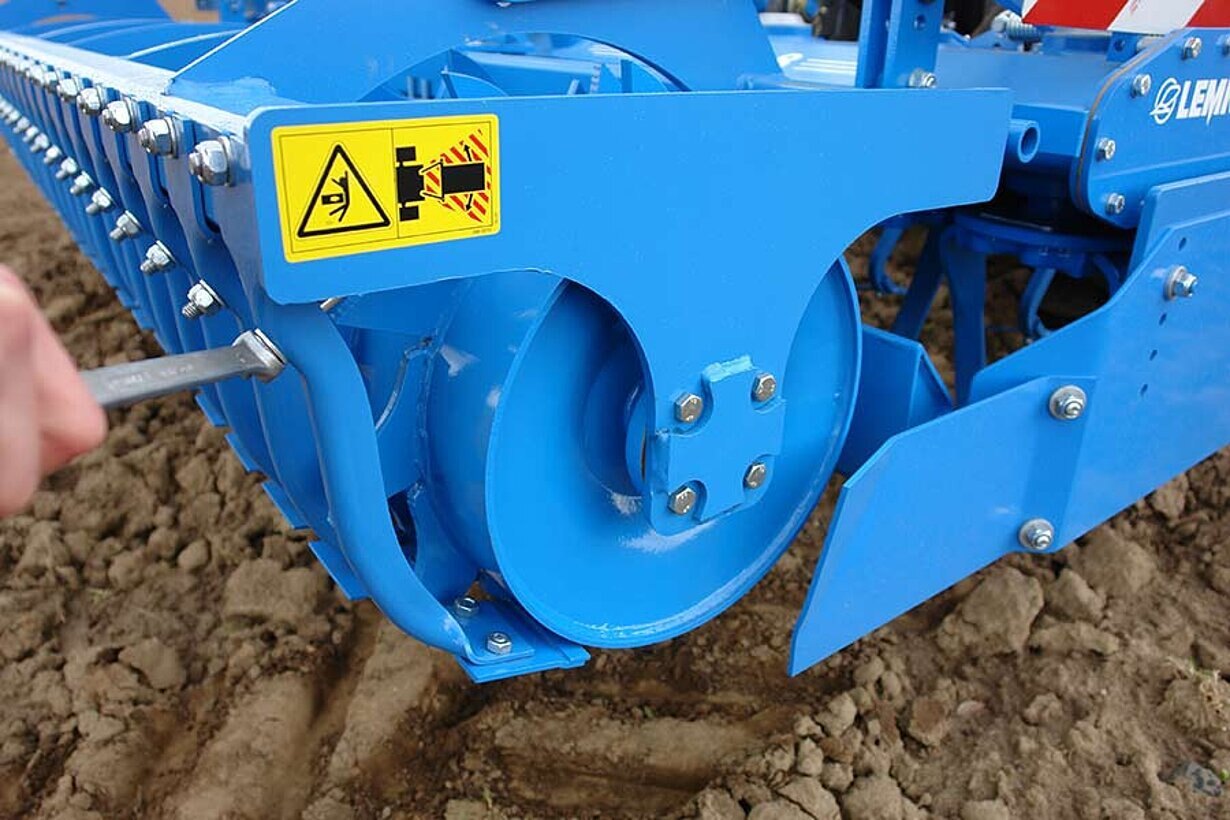

The height of the optional levelling bar can be easily and centrally adjusted from the side, using a spanner.
