New Holland Haytools & Spreaders

ID # 34977968

Degelman 66/69/7200- 4WD

Videos
Call for Price
Overview

We have manufactured thousands of these blades and have never had one come back. If you want a proven blade for your high-horsepower, 4WD tractor, this is where your search ends. We have an arsenal of tilt, lift and hydraulic or manual angle options available, so you can choose what's best for the jobs you do every day.

Regardless of what you select, each of these blades are backed by the Degelman quality standards we set for all our blades-from our industrial-strength cylinders, to the double-skin construction of the blades for extra toughness. Whatever choice you make, it's a clear quality winner.

Specifications
Model
66/69/7200- 4WD
Category Name
Agriculture
Sale Type
New
Manufacturer
Degelman
Blade Weight
3,365 - 5,055 lbs
Blade Widths
12', 14', 16'
Tractor Type
4WD
Digging Depth
8" - 12"
Lift Cylinders
3" - 4-1/2" dia
Tilt Cylinders
4" x 8" (7200)
Hydraulic Angle
18° (6600 - manual angle)
Mounting System
D-lock® Quick-Tach / (HQT 5700 only)
Mounting Location
Front-4WD Mount
Hydraulics - Angle
4" - 4½" dia
Blade Height (standard)
38"
Lifting Height (approx)
25"
Tractor Horsepower Range
200 - 500 hp
Hydraulic - Vertical Tilt
13° (7200 model only)
Cutting Edge (MaxTemp® Steel)
5/8" x 6"
Skid Shoes (abrasion Resistant)
Standard Adjustment
Mouldboard (ripple Formed Blade)
1/4"
Blade Height (with Top Extension)
45"
Blade Height (with Silage Extension)
62"
features

Degelman 66/69/7200 4WD

6600

Hydraulic Lift & Manual Angle

Degelman 66/69/7200 4WD

6900

Hydraulic Lift & Angle

Degelman 66/69/7200 4WD

7200

Hydraulic Lift & Angle, Tilt

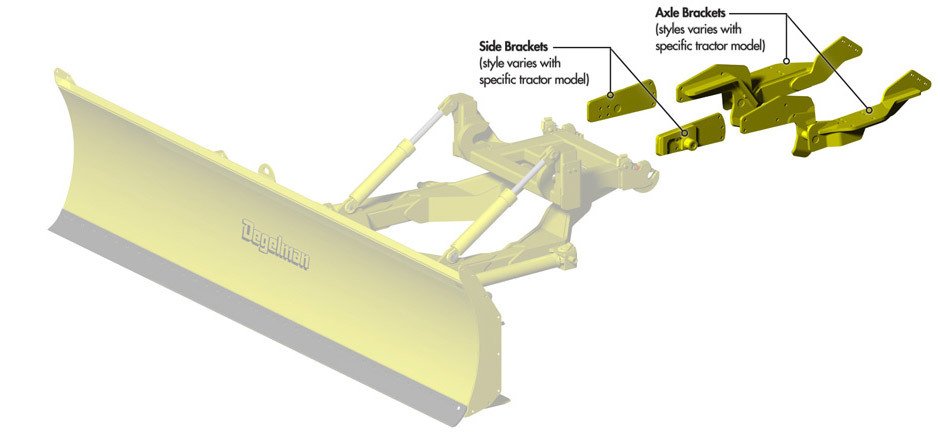

Degelman 66/69/7200 4WD

Easy Bolt-On Assembly

Simple, Bolt-on brackets are all that is attached to your tractor. The rest of the assembly quickly attaches and detaches from these simple brackets. The brackets can also be removed if needed!

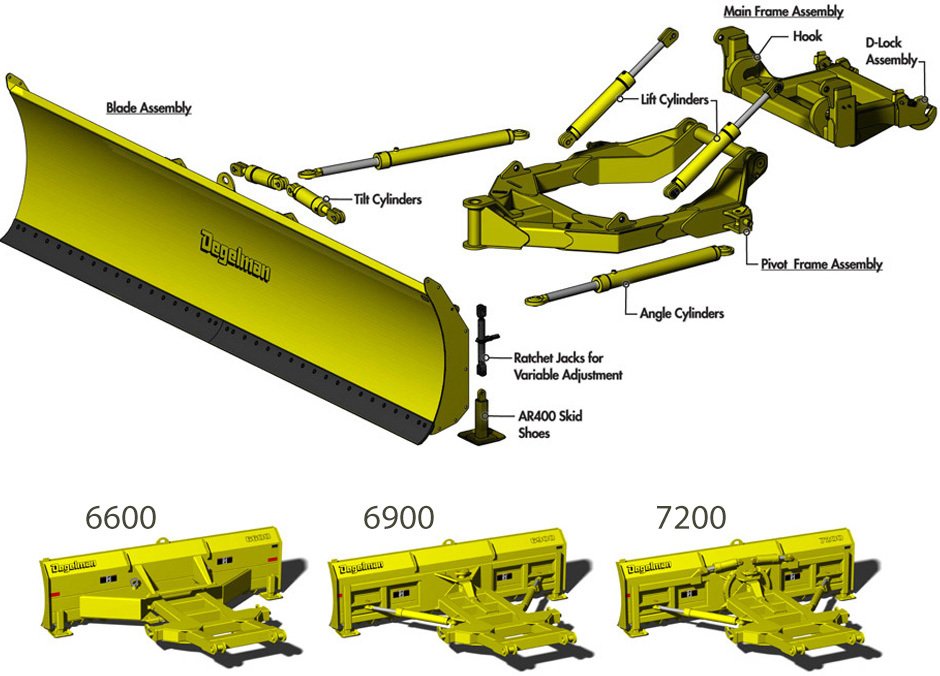

Degelman 66/69/7200 4WD Common Components

Many of the 4600/5700 blade assemblies use common components in different configurations. Here are some basic descriptions of some common components. (3500 model shown in illustration)

Degelman 66/69/7200 4WD

Quick-Attach D-Lock® Mounting

The D-Lock® mounting system offers the convenience of quick attach/detach as well as long life. No tools are required. Fit-ups are 100% secure with zero movement. The blade can be removed in minutes by disengaging two points on the front axle brackets.

  • Degelman 66/69/7200 4WDAvailable in 12ft, 14ft & 16ft widths. *
  • The most robust blade in the industry.
  • Industrial-strength design.
  • Compatible with all 4WD tractors.
  • Degelman 66/69/7200 4WDAttaches in minutes with D-lock® Quick-Tach.
  • No welding: minimal bolt-on brackets.
  • Double-skin blade construction.
  • Degelman 66/69/7200 4WDIndustrial-strength cylinders.
  • Reversible skid shoes.
  • Rippled-formed blade.
