125-500 HP 5900 Series

The 5900 Series has all the features such as tilt, higher profile, D-lock® mid-mounting, and industrial skid shoes.

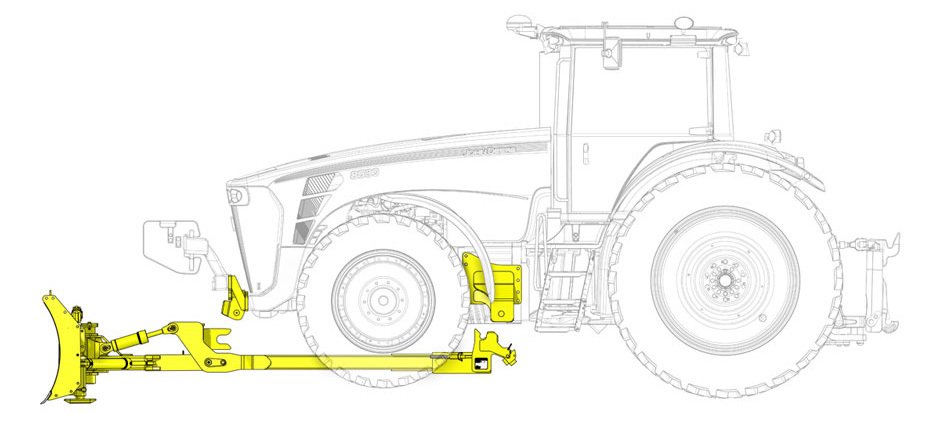

Side Bracket / Front Hook Mount

5900 Blades commonly mount using a front mounted hook and two side brackets. The operator typically drives into the front hook, connects the hydraulics, hydraulically lifts the rear frame into position, and secures the "D-Lock" connections on the rear axle brackets. (46/5700 shown in illustration)

No Welding - Easy Bolt-On Assembly

Simple, Bolt-on brackets are all that is attached to your tractor. The rest of the assembly quickly attaches and detaches from these simple brackets. The brackets can also be removed if needed!

Common Components

Many of the 4600/5700 blade assemblies use common components in different configurations. Here are some basic descriptions of some common components. (3500 model shown in illustration)

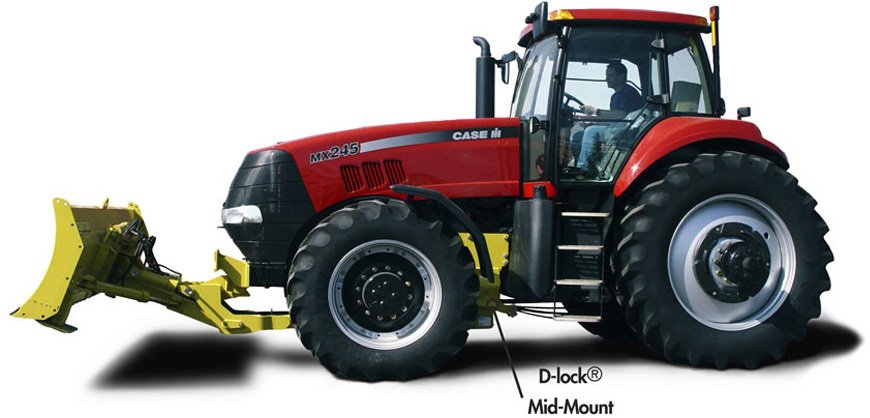

Quick-Attach D-Lock® Mounting

The D-Lock® mounting system offers the convenience of quick attach/detach as well as long life. No tools are required. Fit-ups are 100% secure with zero movement. The blade can be removed in minutes by disengaging two points on the front axle brackets.

• Available in 10ft, 12ft & 14ft widths.(Note: Larger blade widths may not be compatible will all tractors)
• Compatible with 2WD, Front-Wheel-Assisted, and 3-Point tractors.
• 24° two-way hydraulic angling.
• 9° two-way hydraulic tilting.

• Attaches in minutes with D-lock® Quick-Tach.
• Mid-mounted for strength.
• No welding: minimal bolt-on brackets only.
• Integrated front weight bracket.

• Double-skin blade construction.
• Industrial-strength cylinders.
• Reversible, adjustable AR400 skid shoes.
• Ripple-formed blade.
