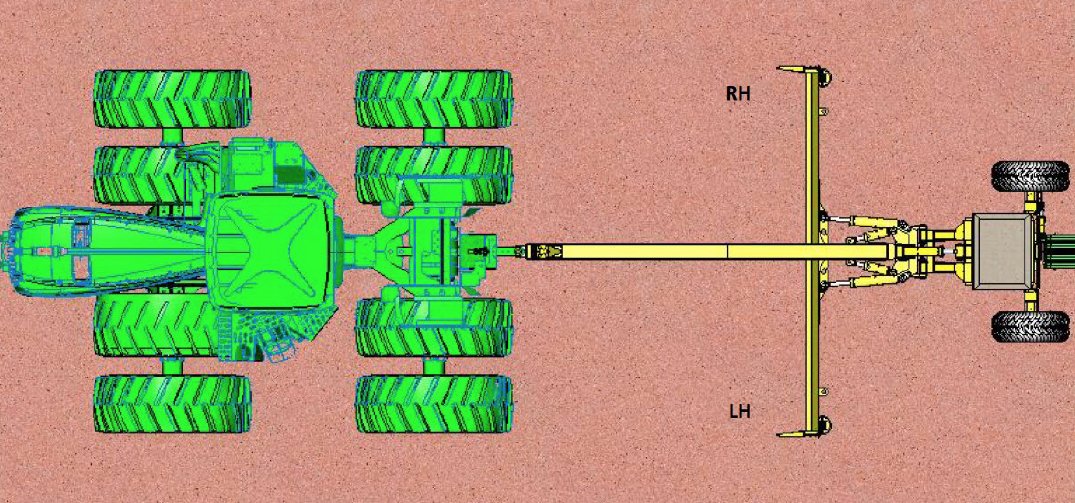

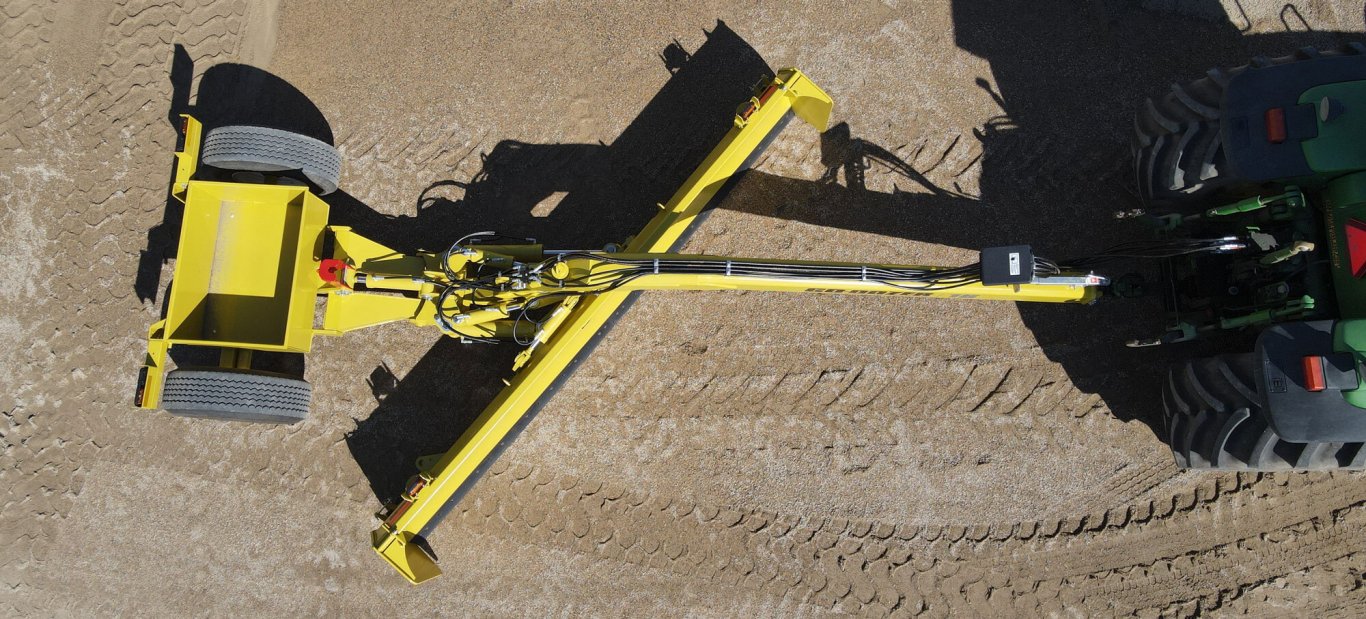

The continuous angle design ensures the angle of the blade will always be the same in respect to the axle of the machine (and tractor). This is different from a traditional pull dozer design which always maintains the blade angle with respect to the hitch.

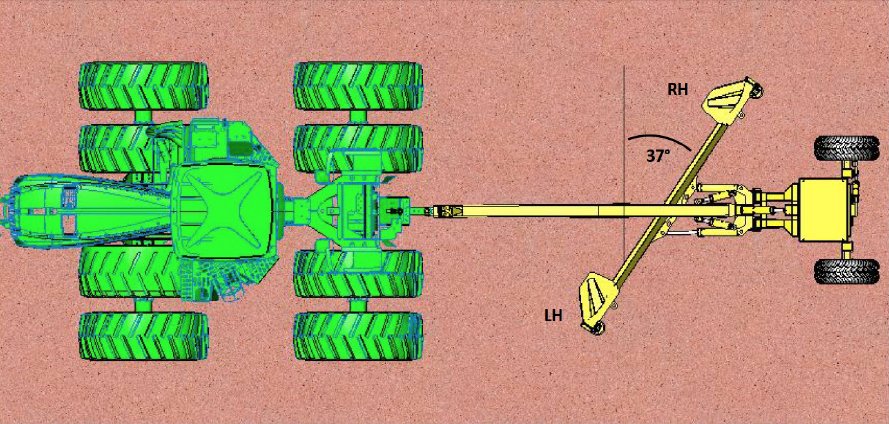

In that traditional design, the offset of the hitch will either add angle to or subtract angle from the blade as the blade is offset in either direction. The Degelman TruGrade can maintain its hydraulic angle of 37° -40° no matter the offset.

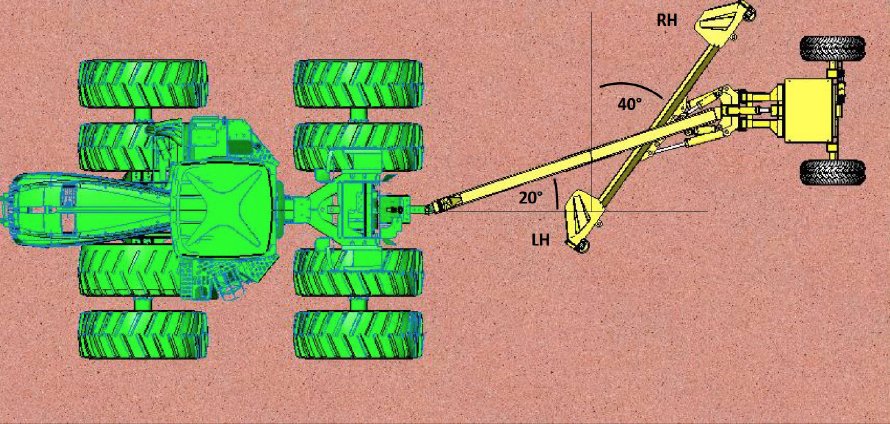

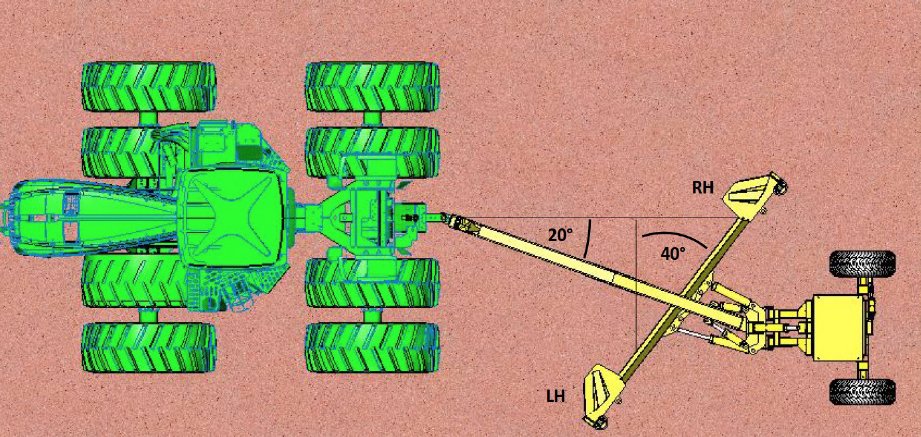

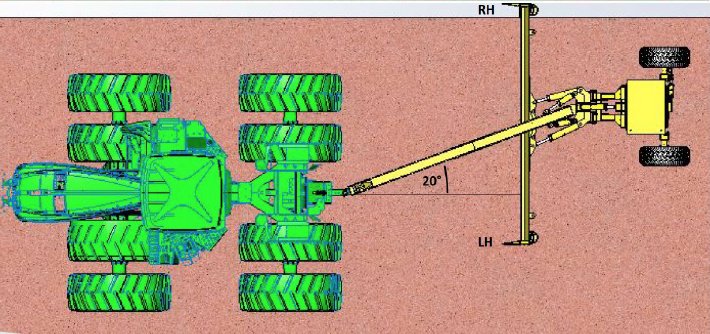

Position 2- TruGrade offset to one side, angle away from tractor

TruGrade is designed for industry best capacity

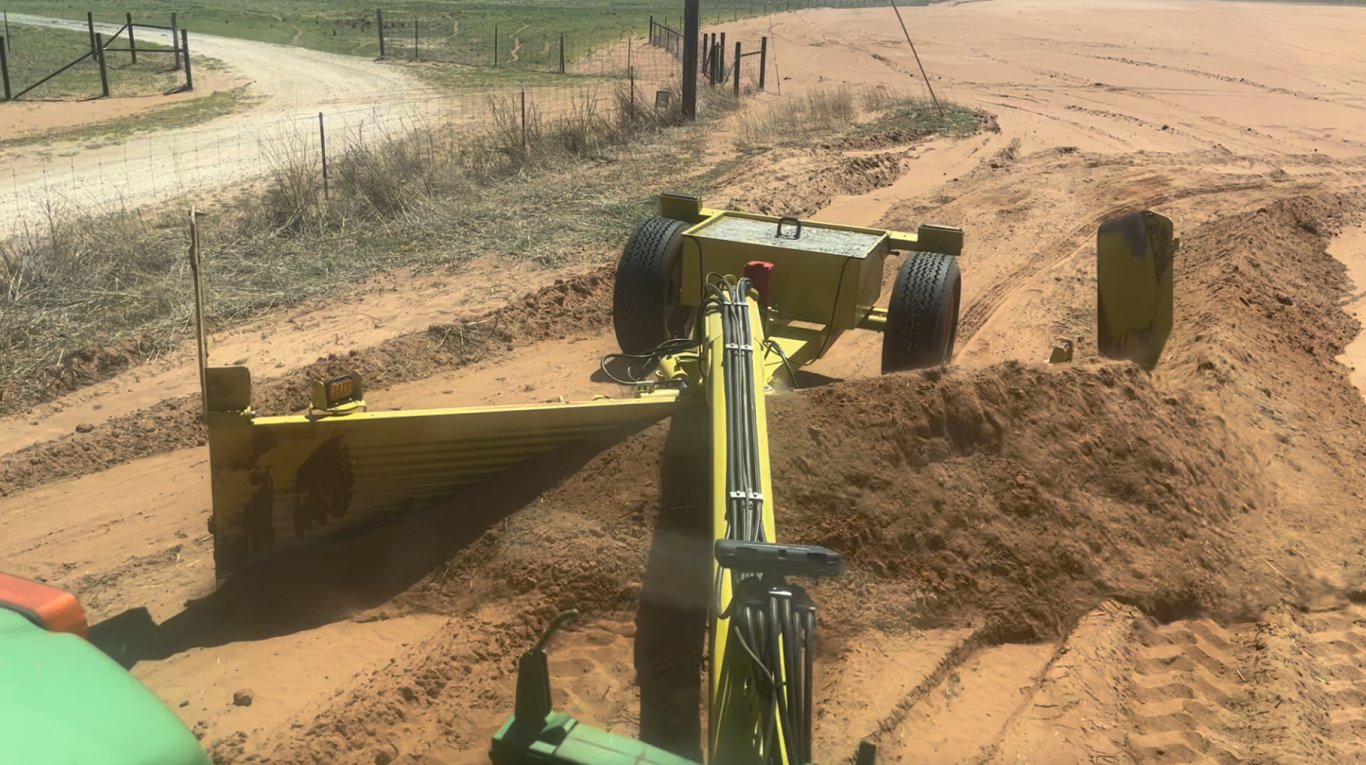

The tallest pull type bulldozer blade on the market is designed to move more material per pass

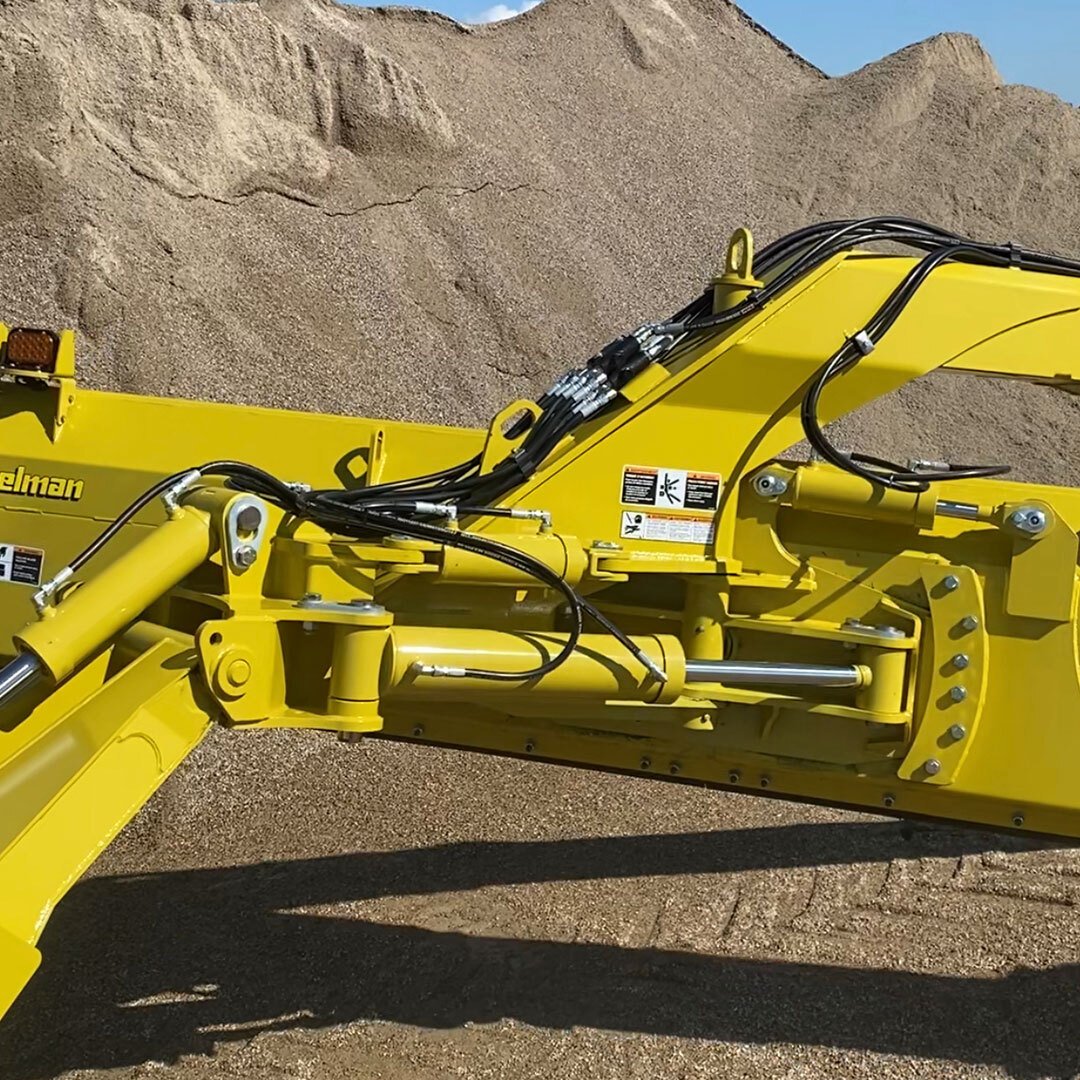

Angle cylinders behind mouldboard avoids the mess of angle cylinders at the top of the blade and forcing angle forces to travel up through the mouldboard

Less Structure required at top of blade and better capacity as formed mouldboard holds more material

Square tube at top of blade disrupts flow of material and decreases effective capacity of the blade

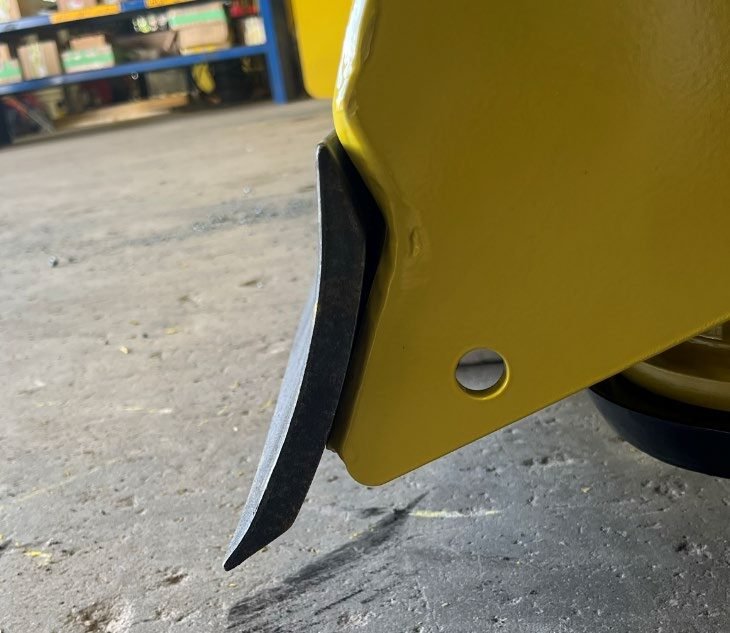

Reversible Cutting Edge

The Degelman TruGrade is one of the few pull type bulldozer blades to offer a reversible cutting edge

• Greatly reduces stress on bottom 1/3 of mouldboard while still providing equivalent wearable material as non-reversible
• Reversible cutting edge provides plenty of wearable material with the ability to flip once one side worn.
• This allows you to quickly and easily flip cutting edge if one side damaged, and no replacement handy
• Double break at bottom of mouldboard perfectly recesses cutting edge for smooth flow of material. Keeps material from piling on top of cutting edge
