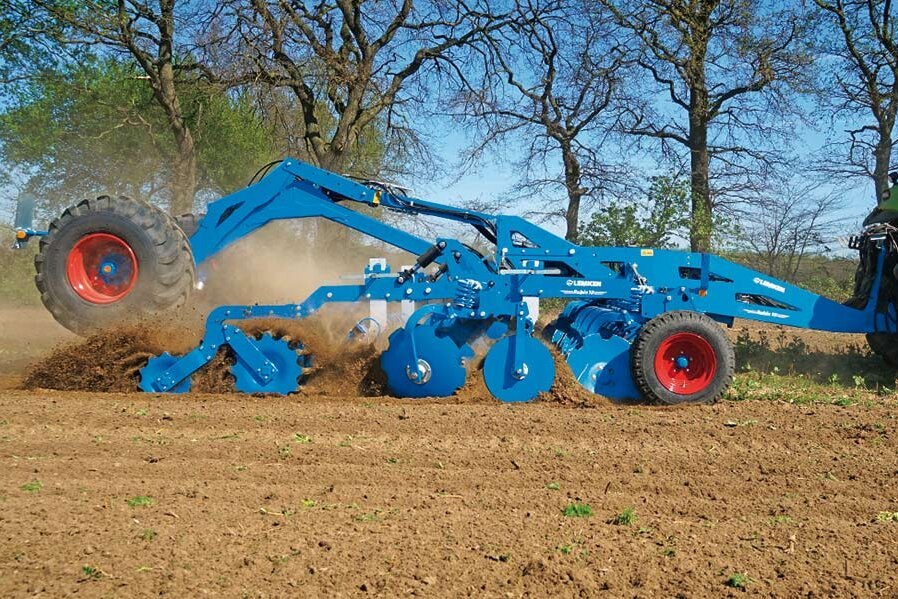

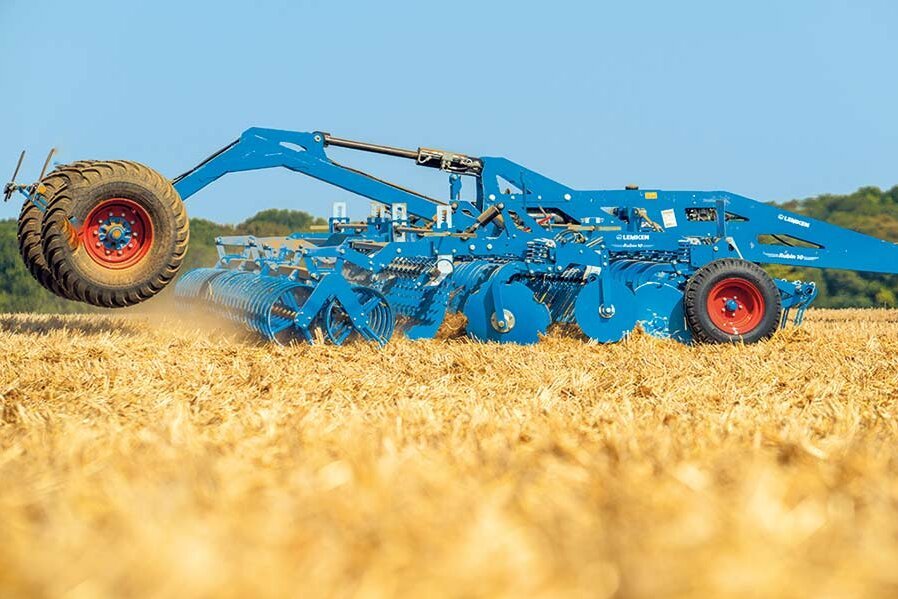

Shallow, fast and intensiveThe Rubin compact disc harrow guarantees intensive, uniform mixing of organic matter and soil to a depth of approximately 14 cm, Its high weight guarantees penetration, even under hard conditions, and therefore reduces moisture loss from evaporation. This makes the Rubin highly suitable for shallow, reliable stubble cultivation at high working speeds. |
Precise work saves fuelThe symmetrical arrangement of every row of serrated concave discs provides precise directional stability with no side draft, even when driving on slopes, and maximises fuel savings. |

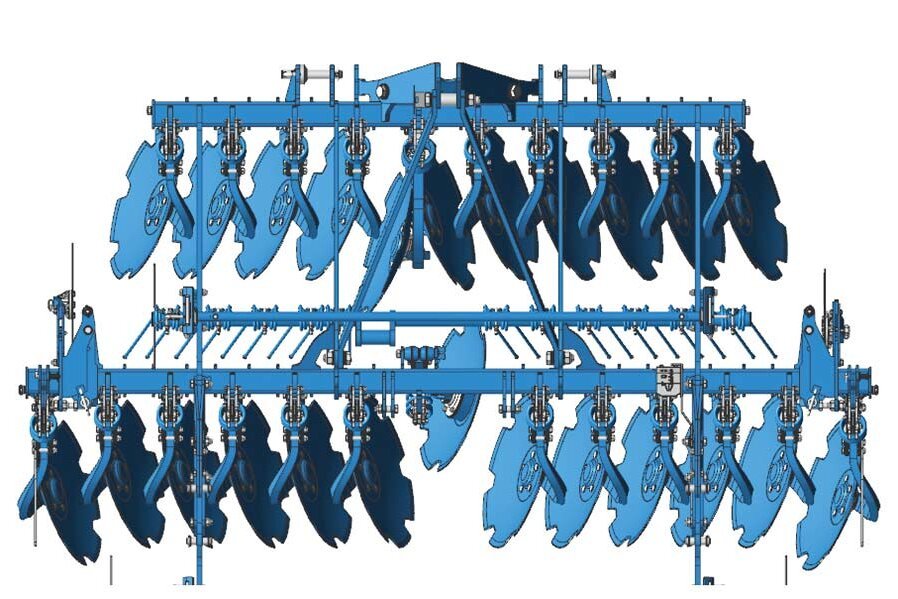

Patented disc placementThe middle discs are offset to prevent blockages and provide for even tillage over the full working width. A patent is pending for this unique arrangement. |
Less wearThe new through-hardened DuraMaxx discs with a 645-mm diameter deliver maximum service life and operating times with reduced maintenance costs |

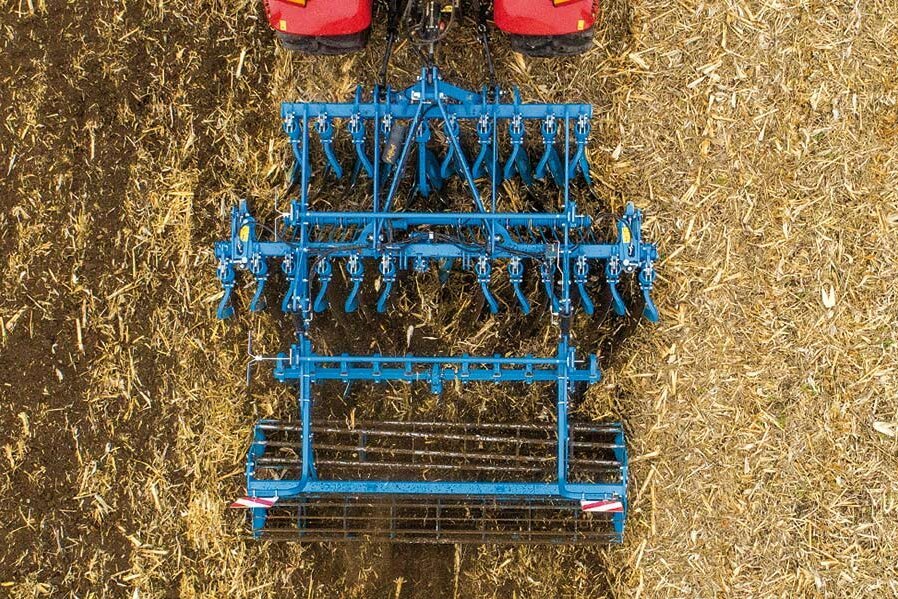

Comfortably adjustable harrowAn impact or levelling harrow with comfort adjustment, which can be individually and finely adjusted, is provided behind the two rows of discs for precise deposition of the flow of soil. |

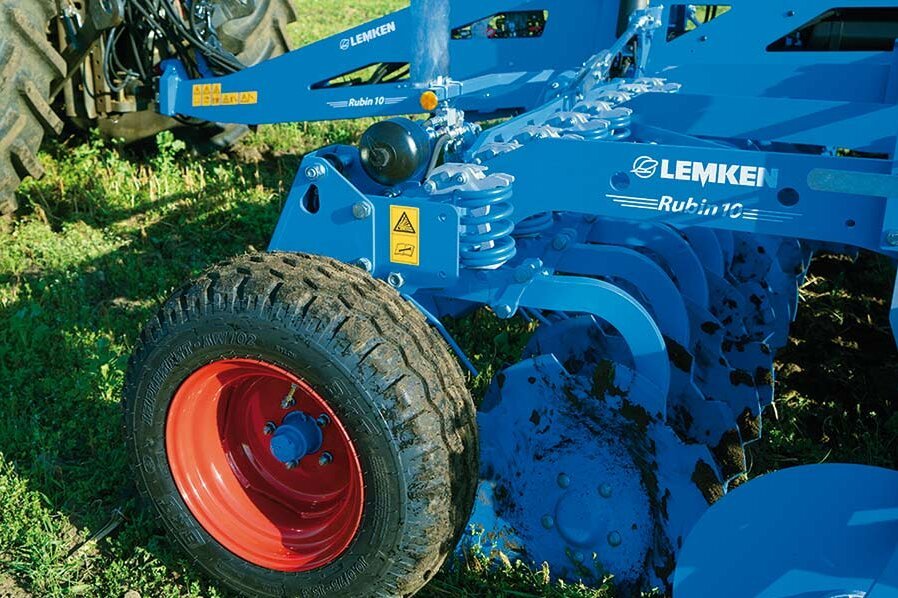

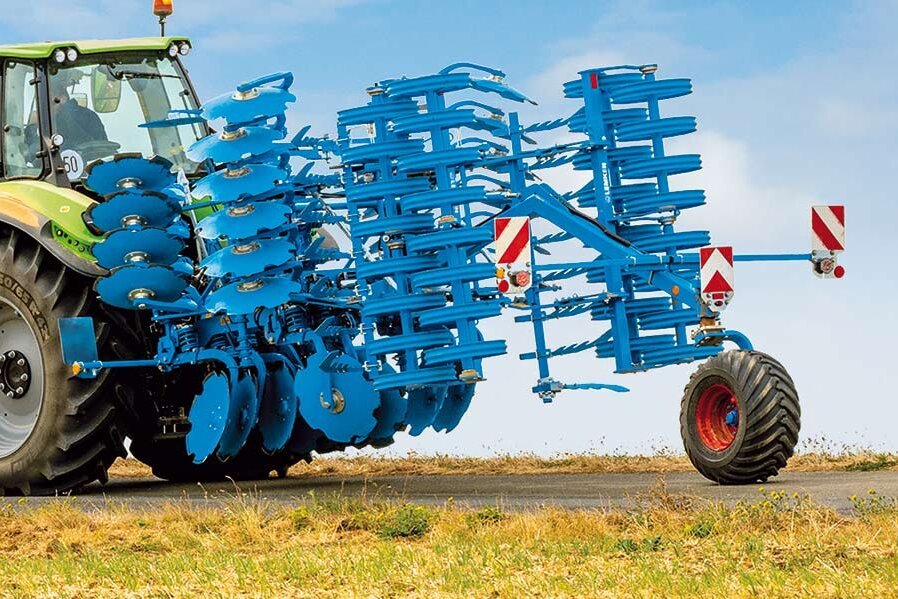

Safety first!The transport wheel design for mounted implements allows the use of heavy rollers and ensures safe operation on the road. |
Quality work in all conditionsSupport wheels for folding semi-mounted implements guarantee consistent working depths even in variable soils and precise pass alignment on slopes. |

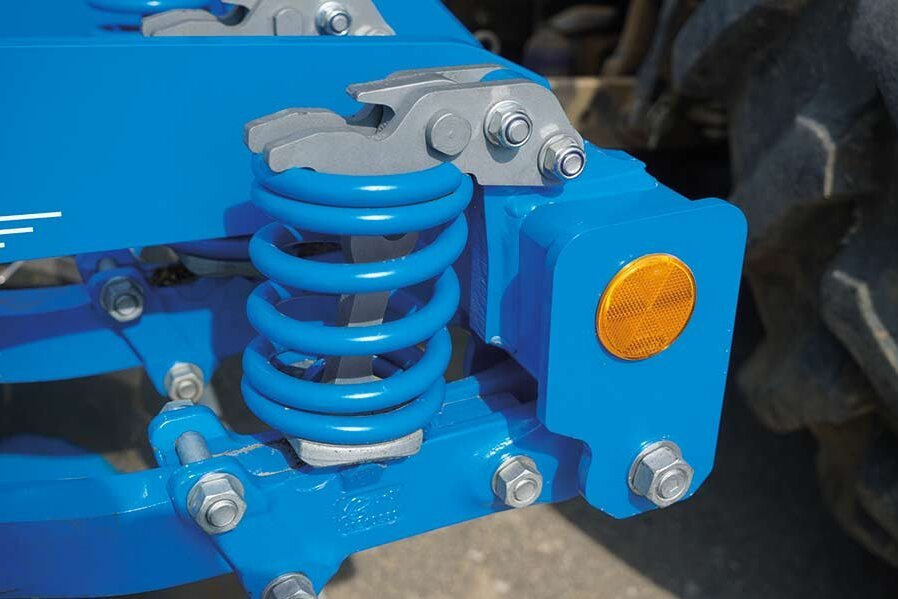

Recoil cushioning for difficult conditionsWhen hitting obstacles, the concave discs deflect independently upwards and rapidly return to their working position. |
|
Rubin 10/300 U | Rubin 10/350 U | Rubin 10/400 U | |
---|---|---|---|
Working width (cm) | 300 | 350 | 400 |
Power requirements (hp) from - to | 105 - 150 | 122 - 175 | 140 - 200 |
Power requirements (kW) from - to | 77 - 110 | 90 - 129 | 103 - 147 |
Weight (kg) | 1 675 | 1 810 | 1 950 |
Article number | 722 3006 | 722 3007 | 722 3008 |
Number of discs | 24 | 28 | 32 |
Disc diameter (mm) | 645 | 645 | 645 |
The availability and basic equipment of the machine may vary depending on the country. Please contact your dealer. |
