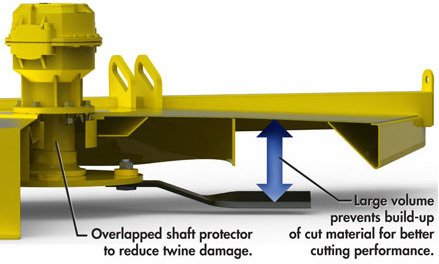

Maximum Volume Under Deck

Thirteen inches of side depth combined with a smooth underside for cutting and clearing maximum volume of dense growth.

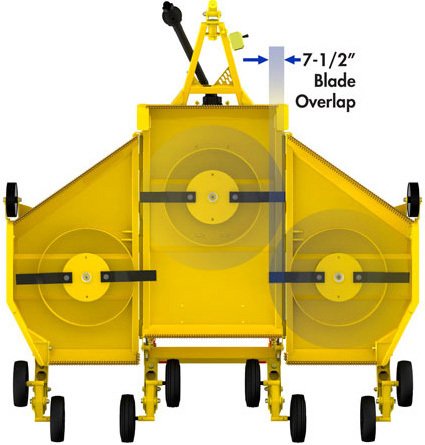

7-1/2" Blade Overlap

For a cleaner cut and to prevent trail-behind, we designed a 7-1/2" blade overlap between the center and wing cutting sections to ensure nothing is left uncut.

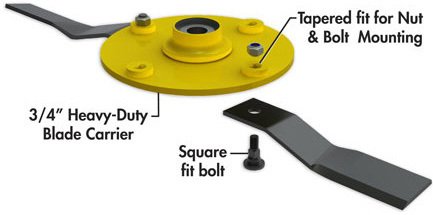

Long Lasting 5" Twist Blades

Heavy-duty 5 inch wide, twist blades are longer lasting and more resistant to bending and breaking.

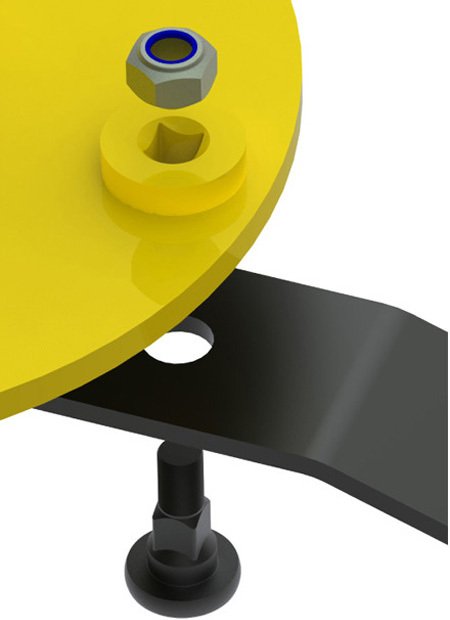

Square Is Better

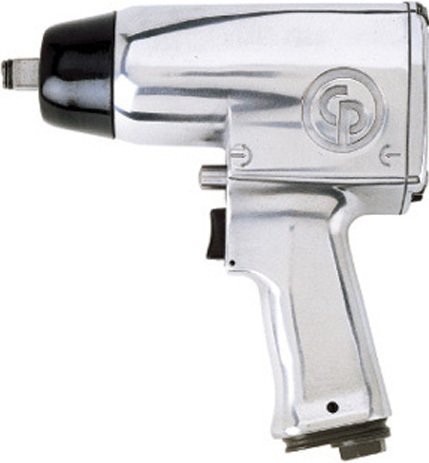

Why do all impact and socket wrenches use square adaptors? - Torque.

Again, we go a step further. For easy blade replacement and increased resiliency, we use hardened square bolts. Because of the increased surface area, the square blade bolts have a tighter tolerance and a better contact fit than keyed or hex shaped bolts. This prevents the bolts from spinning and wearing out sooner. Because of this smart design, replacing our bolts is truly a one-person job.

Increased Wing Control

Flow restricted hydraulic fittings allow increased control over the speed that the wing goes up and down, reducing the risk of damage

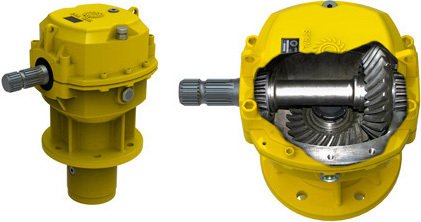

Over-Sized Gearboxes

Designed with exacting standards for maximum life expectancy. Convenient sight glass to check lubricant level at a glance. Industrial split case design for easy and accurate assembly and gear mesh setting. Highest torque rating for rotary cutter applications worldwide.

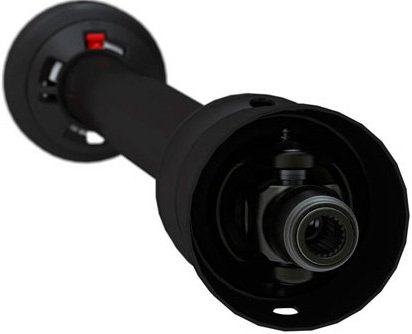

North American Made Solid Steel Splined Drive Train

The REV1500 has been improved to incorporate an end to end Weasler engineered drive train. Weasler's heritage is all about quality, safety and precision manufacturing. Solid high tensile steel spline shafts are unrivalled for torque, shock loads and sliding ability. Rotary cutters put tremendous stress on the drive lines. The REV is protected from the wide angle drive shafts to the heat dissipating preset friction torque limiters. The multi-patented 80° ball and socket constant velocity joint distributes loads evenly, retains lubricant, reduces wear and keeps contaminants out. And for safety the patented articulated guard system maintains full coverage with the mating guard bell.

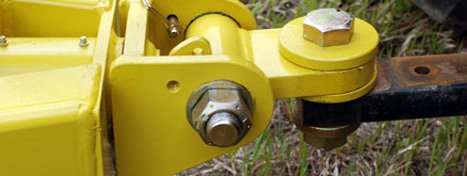

Precision Hitch

Our single bolt clamp hitch is machined and heat-treated from hardened steel to make our hitch superior in quality. Most grease points are designed for easy through-the-head access. Added safety comes into play with our lock up pin connection so one person can do the hook up without worry of hand injury.
