Degelman

ID # 34977969

Degelman 7900- 4WD

Videos
Call for Price
Overview

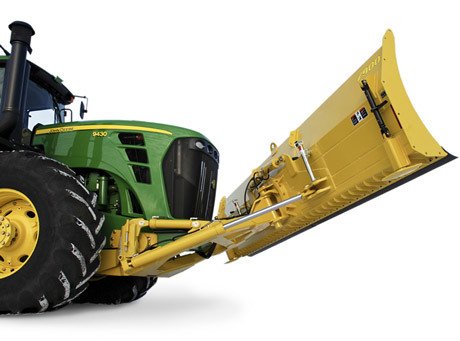

The Degelman 7900 was developed specifically for producers moving silage, haylage and tackling the toughest snow removal jobs out there. Fully compatible with high horsepower four-wheel drive tractors, the 7900 has 40” lift and 6-way angling capabilities with full strength at all angles.

That means whether you’re at any angle you get the same industrial-sized strength that Degelman’s known for.

Specifications
Model
7900- 4WD
Category Name
Agriculture
Sale Type
New
Manufacturer
Degelman
Blade Weight
5,165 - 7,650 lbs
Blade Widths
12', 14', 16', 18', 20'
Tractor Type
4WD
Digging Depth
14" - 24"
Lift Cylinders
3-1/2" - 4-1/2" dia
Tilt Cylinders
4" dia
Hydraulic Angle
22° - 24°
Mounting System
D-lock® Quick-Tach / (HQT 5700 only)
Mounting Location
Front-4WD Mount
Hydraulics - Angle
4" - 4½" dia
Blade Height (standard)
49"
Lifting Height (approx)
40 - 60"
Tractor Horsepower Range
300 - 700 hp
Hydraulic - Vertical Tilt
10°
Cutting Edge (MaxTemp® Steel)
3/4" x 8"
Skid Shoes (abrasion Resistant)
Standard Adjustment
Mouldboard (ripple Formed Blade)
1/4"
Blade Height (with Top Extension)
54"
Blade Height (with Silage Extension)
73"
features

Degelman 7900 4WD

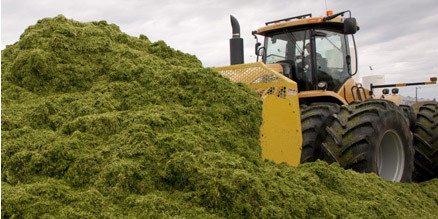

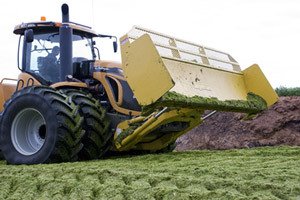

Move More Silage, Faster.

When you're working with silage, under-frame clearance is important. That's why at Degelman, our mounting system allows for extra under frame clearance. So you can pack and push more silage faster without getting hung up. We also make sure our mounting hardware gives you a smooth, clean underbelly to minimize dragging silage back. Add a two foot perforated silage extension, and you'll move more silage than ever.

Degelman 7900 4WD

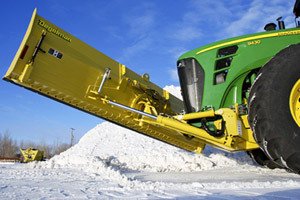

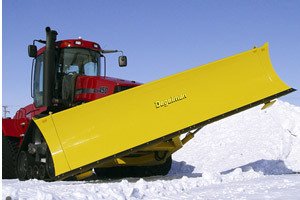

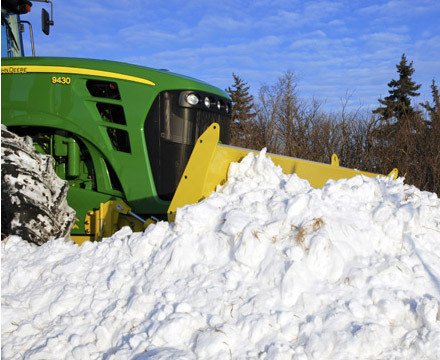

Best Snow Removal Angle Ever

From our field testing, a 30° angle runs snow off the blade the best. That's why we made sure the 7900 can hit and hold 30° with optimal strength. This means faster and more efficient snow removal for any job out there.

Pure Power. At Your Fingertips

The 7900's controls give you the power and agility of angling control at your fingertips. There's no need to ever get out of your cab-ever. You can angle the blade from 0° to up to 24° (depending on tractor), lift up and down and tilt how you like, quickly and easily: The control stays where it belongs-with you.

Degelman 7900 4WD

Six-Way Blade Agility

When your blade can do more...you can do more. Tilt. Angle. Lift. You name it. That's why the Degelman 7900 hydraulic system is designed for optimal blade angles and usage. Because we know your blade needs to take on all the jobs you tackle every day, not just some of them.

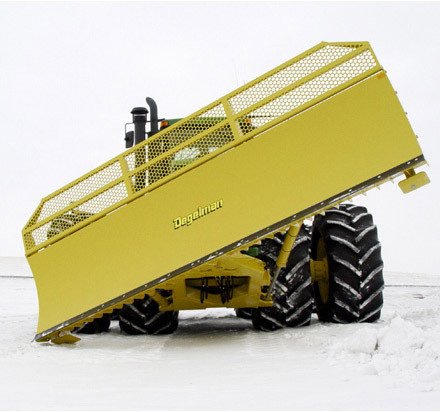

Tilt Away.

The fingertip-controlled tilt capabilities of the 7900 give you the option to tilt the blade up to 10°. So you can groom roads, put a ridgeline in for drainage...you name it. And, because of our industrial-strength cylinders and heavy-duty design, you can doze with confidence knowing that our blade system can do the job, and then some.

Degelman 7900 4WD

Durable AR400 Skid Shoes.

Meet wear and tear head on. Our adjustable skid shoes are made with AR400 plate to give them a longer life with eight times the abrasion resistance of regular steel. We also precision designed them so you can easily ratchet them down by infinite intervals whether you're levelling a gravel yard...or compensating for slight wear on the blade, a Degelman first. Because more precision equals more blade control. These skid shoes are spoon-shaped for effective operation, turning and to reduce the chance of digging in. They are also reversible so when wear appears, you can easily rotate them.

Degelman 7900 4WD 300-700 HP 7900 Hi-Lift Series

Developed specifically for producers moving silage and haylage, the 7900 can also take on the toughest snow removal jobs. With a lifting capacity of 40" - 60", a blade height of 47" tall, and an increased angle of 22° - 24° depending on tractor) to eliminate spillover, the 7900 is backed with over 40 years of blade experience.

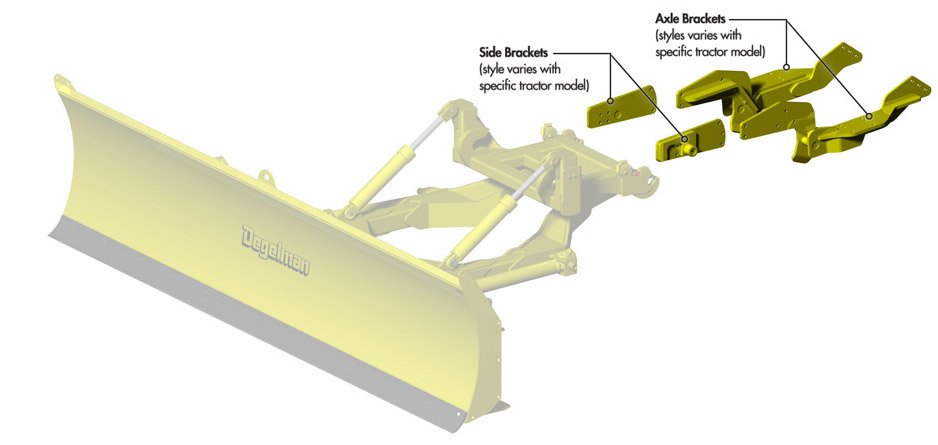

Degelman 7900 4WD Easy Bolt-On Assembly

Simple, Bolt-on brackets are all that is attached to your tractor. The rest of the assembly quickly attaches and detaches from these simple brackets. The brackets can also be removed if needed!

Degelman 7900 4WD

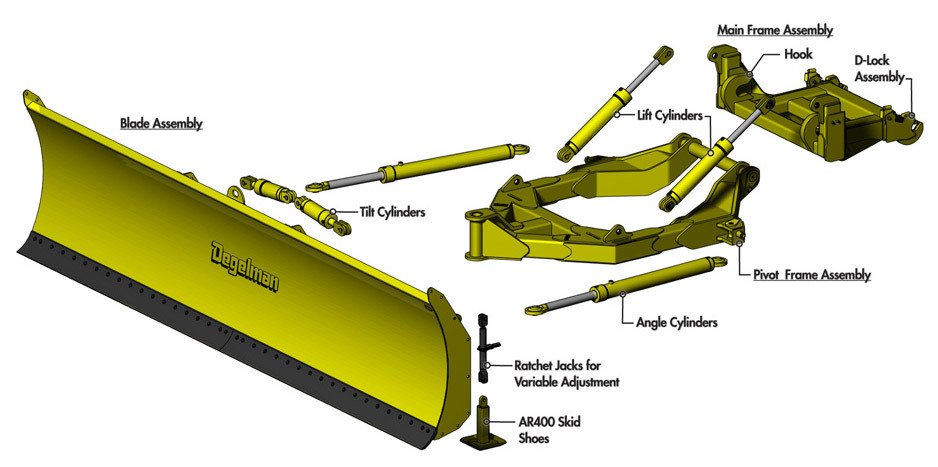

Common Components

Many of the 7900 blade assemblies use common components in different configurations. Here are some basic descriptions of some common components.

Degelman 7900 4WD

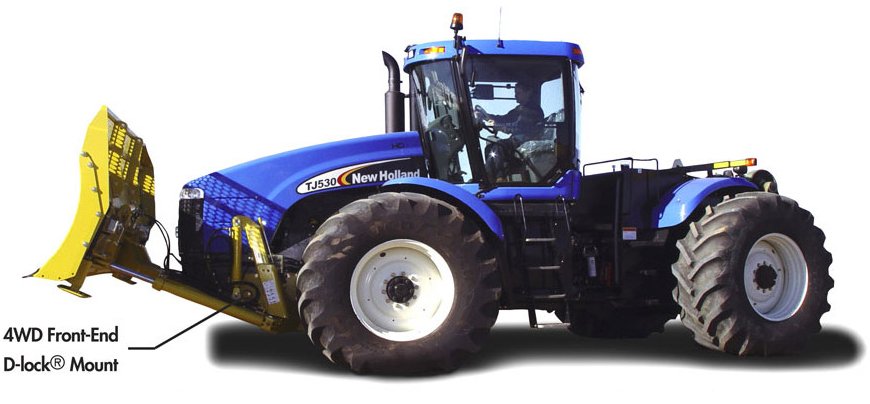

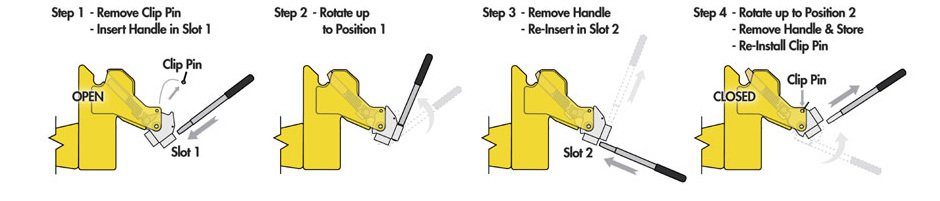

Quick-Attach D-Lock® Mounting

The D-Lock® mounting system offers the convenience of quick attach/detach as well as long life. No tools are required. Fit-ups are 100% secure with zero movement. The blade can be removed in minutes by disengaging two points on the front axle brackets.

  • Degelman 7900 4WDAvailable in 12ft, 14ft, 16ft, 18ft & 20ft widths. (Note: Larger blade widths may not be compatible will all tractors)
  • Compatible with all 4WD tractors.
  • Two-way hydraulic angling from 22° - 24° depending on tractor.
  • 10° two-way hydraulic tilting.
  • Degelman 7900 4WDAttaches in minutes with D-lock® Quick-Tach.
  • Front 4WD mounting.
  • No welding: bolt-on brackets.
  • Double-skin blade construction.
  • Degelman 7900 4WDIndustrial-strength cylinders.
  • Reversible, adjustable AR400 skid shoes.
  • Ripple-formed blade.
